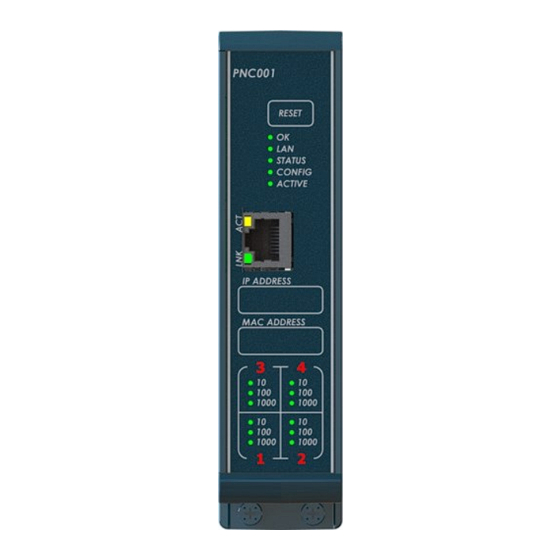

PACSystems™ RX3i PROFINET Controller
IC695PNC001-BFBE
Firmware Version 3.25
1
Includes conformal coat and low temperature module variants, if available.
2
The last two characters of the catalog number suffix may not increment with every firmware release beginning with IC695PNC001 -BCBD
Release 3.15.
1 2
IMPORTANT PRODUCT INFORMATION
GFK-2573AD
May 2023

Advertisement

Table of Contents
loading

Related Manuals for Emerson IC695PNC001-BFBE1 2

Summary of Contents for Emerson IC695PNC001-BFBE1 2

  • Page 1 IMPORTANT PRODUCT INFORMATION GFK-2573AD May 2023 PACSystems™ RX3i PROFINET Controller IC695PNC001-BFBE Firmware Version 3.25 Includes conformal coat and low temperature module variants, if available. The last two characters of the catalog number suffix may not increment with every firmware release beginning with IC695PNC001 -BCBD Release 3.15.
  • Page 2 The information is supplied for informational purposes only, and Emerson makes no warranty as to the accuracy of the information included herein. Changes, modifications, and/or improvements to equipment and specifications are made periodically and these changes may or may not be reflected herein.

  • Page 3: Ordering Information

    However, 10 Mbps can be used for other types of Ethernet traffic such as ping and telnet. Features of the RX3i PNC001 include: Full configuration services for the RX3i PROFINET Controller, plus all connected Emerson and third- • party I/O-Devices using PAC Machine Edition (PME).
  • Page 4 GFK-2573AD May 2023 Specifications: PNC001 Specifications Descriptions PROFINET Support PROFINET Version 2.2 General Class A I/O-Controller. Redundantly controlled operation conforms to PROFINET V2.3 Type S-2 System Redundancy. RX3i CPU Compatibility See the Functional Compatibility section. Power Requirements PNC001-Ax PNC001-Bxxx 3.3 Vdc: 0.6 A with no SFP devices 3.3 Vdc: 0.5 A with no SFP 1.3 A maximum devices...

  • Page 5: Emc Installation Requirements

    GFK-2573AD May 2023 Specifications Descriptions Number of PROFINET 2048 Submodules per RX3i CPU Programmer Limits Number of I/O-Controllers 128 (32 RX3i CPU targets × 4 IO-Controllers per RX3i CPU) Number of I/O-Devices 4080 (255 per network × 16 PROFINET networks) Total number of devices 4208 (does not include backplanes, power supplies, or I/O modules) For product standards, general operating specifications, and installation requirements, refer to PACSystems RX3i System...

  • Page 6: Installation In Hazardous Areas

    GFK-2573AD May 2023 Installation in Hazardous Areas The following information is for products bearing the UL marking for Hazardous Areas or ATEX marking for explosive atmospheres: CLASS 1 DIVISION 2 GROUPS ABCD This equipment is an open-type device and is meant to be installed in an enclosure suitable for the environment that is only accessible with the use of a tool.

  • Page 7: Status Reporting

    GFK-2573AD May 2023 Status Reporting The PNC001 provides 32 bits of status information to a configured location in the RX3i CPU’s reference memory. The status data consists of the Module OK bit, which indicates the health of the module itself, a status bit for each external port, and a bit that indicates the connection status of the configured devices.
  • Page 8 GFK-2573AD May 2023 Name Description MRP Role If MRP is enabled: 0 indicates that the PNC001 is currently an MRP client. 1 indicates that the PNC001 is currently the MRP Manager. If MRP is not enabled, this bit will be set to 0. MRP Ring If MRP is enabled and the PNC001 is currently the MRM: Status...

  • Page 9: Quick Start

    GFK-2573AD May 2023 Quick Start Before installing and operating the PNC001, refer to PACSystems RX3i PROFINET I/O Controller Manual, GFK-2571 for detailed information. Installation and initial startup procedures for the PNC001 include the following steps: 1. Pre-Installation check 2. Installing the PNC001 in an RX3i backplane The PNC001 must be installed in the main (CPU) rack of the RX3i system, using a Universal Backplane such as IC695CHS007, CHS012, or CHS016.
  • Page 10 GFK-2573AD May 2023 4. Installing SFP devices WARNING Optical SFPs use an invisible laser to generate a fiber-optic signal. Always keep the port covered if a cable is not installed. Do not look into the open port if a cable is not installed. WARNING If the surrounding air operating temperature of the PNC001 is greater than 40C, SFP devices could have operating temperatures over 70 °C (158 °F).

  • Page 11: Release History

    Resolved a Loss of Device in an MRP Ring after the IC695PNC001-BCBD 3.16 Aug 2020 PNC001-Bxxx is reset. Rebranded the PNC001 to Emerson, applied patches for IC695PNC001-BCBD 3.15 Oct 2019 VxWorks URGENT/11 vulnerabilities, and made additional updates to enhance cyber security.
  • Page 12 GFK-2573AD May 2023 Version Firmware Date Comments Revision Adds support for the Genius Communication Gateway’s IC695PNC001-AN 2.27 May 2017 (GCG001) Switch BSM and Enable/Disable Outputs COMMREQs. Supports the Remote Get HART Device Information COMMREQ. Information from a HART device connected to an RX3i Analog Module in an IC695PNS001 RX3i IC695PNC001-AM 2.26...
  • Page 13 GFK-2573AD May 2023 Version Firmware Date Comments Revision Corrects an issue where, in some configurations, the IC695PNC001-AE 1.22 Jul 2013 PNC001 entered a mode that caused it to repeatedly power up. Addresses a power-up issue affecting the following revisions IC695PNC001-AB and IC695PNC001-AC. Although no units that exhibited this issue were shipped, IC695PNC001-AD 1.21...

  • Page 14: New Features And Enhancements

    GFK-2573AD May 2023 New Features and Enhancements The following feature was added in Release 3.25. Feature Description MRP Fiber SFP Ring break The Rx3i Rack-based IC695PNC001-Bxxx PROFINET Controller and detection during a single IC695PNS001-Bxxx/IC695PNS101 PROFINET Scanners can detect a ring break fiber break on a single fiber of the network fiber pair on a fiber SFP.
  • Page 15 GFK-2573AD May 2023 Functional Compatibility The following CPU firmware and programming software versions are required to use the features introduced in PNC001 release 2.00 and later: Subject Feature Minimum Version Required The following minimum backplane hardware revision must be used: IC695CHS012-BAMP IC695CHS016-BAMP IC695CHS012CA-BAMP...
  • Page 16 GFK-2573AD May 2023 Subject Feature Minimum Version Required CPE330 Release 8.70 CPU320/CPU315 Release 8.70 Extended PROFINET device CPE310/CPE305 Release 8.70 Subslot Number range CRU320 Release 8.70 CPE302 Release 9.40 (Other CPU models are not supported) CPE330 Release 8.50 CPU320/CPU315 Release 8.50 RX3i PNC001 Release 2.20 CPE310/CPE305 Release 8.50 HART Pass-Through...
  • Page 17 GFK-2573AD May 2023 Subject Feature Minimum Version Required Effective with PME 8.6 SIM 3 and PME 8.5 SIM 11 (PPS 2.6 If using PROFINET System SIM3 and PPS 2.5 SIM11), the PNC001 is configured to use Redundancy, users MUST RT Class 2 for redundant PROFINET connections. To meet upgrade the PNC001 specifications, this requires PNC001 firmware 2.2 or later.
  • Page 18 GFK-2573AD May 2023 Subject Feature Minimum Version Required RX3i PNC001 Release 2.00 (or later) PAC Machine Edition 7.00 SIM 8 Non-Hot Standby Redundancy system PNC001-Bxxx and PNC001-Ax Hardware Comparison This section outlines the differences between the new (-Bxxx) and old (-Ax) hardware implementations. Functionally, the two are equivalent, except for the removal of the micro USB port and the Command Language Interface (CLI) which operated via that port.
  • Page 19 GFK-2573AD May 2023 Restrictions and Open Issues Restrictions and Open Issues related to PNC001 Operational Behavior Issue Description Two scenarios can cause the PNC001 to indicate that an MRP Ring is closed when, in fact, it is still open. The scenarios are: When either an RX3i PNS001 or PNC001 that participates in the MRP ring as an MRP Client communicating via Copper or Fiber SFPs is powered-up in the MRP ring, extra Ring Closed/Ring Open faults are logged in the I/O...
  • Page 20 GFK-2573AD May 2023 Issue Description Downloading a mismatched configuration for a Slice IO node and then clearing Clearing RX3i controller the RX3i CPU’s memory causes PAC Machine Edition to disconnect and the RX3i memory when it contains a PNC001 to reset itself. mismatched configuration of To recover from this fault, either: Slice I/O causes the...
  • Page 21 GFK-2573AD May 2023 Issue Description When the PNC001 reset button is held down for more than 1 second, the CRU320 can take up to 1 second to detect the loss of the PNC001 (after the PNC001 module resets). This causes a delay in the CPU signaling the Loss of IOC, and in taking the appropriate fault actions (setting point faults, stopping the controller if Loss of or Missing I/O Controller faults are configured as Fatal, etc.)

  • Page 22: Operational Notes

    GFK-2573AD May 2023 Restriction/Open Issues Description The output paging function, as described in the shConfig command, is not Page function not available currently functioning. The error message displayed in response to an invalid show port help command Response to invalid command does not provide useful information.
  • Page 23 GFK-2573AD May 2023 Operational Note Description When a network is configured for MRP operation, MRCs and Media Redundancy Managers (MRMs) can put one of their ring ports into a Blocking state. MRP uses this blocked port state to break the continuous ring and allow only MRP Data packets arriving on ports management traffic to pass through the blocked port.
  • Page 24 GFK-2573AD May 2023 Operational Note Description These issues may occur in a system with a PNC001-Ax module and two IC695PSA140 Multifunctional 120/240 VAC, 125VDC 40W Power Supplies when either of the power supplies are turned off and back on: PNC001-Ax Reset or Power The PNC001-Ax resets and does not power back on.

  • Page 25: Additional Information

    GFK-2573AD May 2023 Additional Information For additional information, please refer to the manuals listed below. Manuals can be downloaded from the Support website. Please see the link located at the end of this document. PACSystems RX3i PROFINET I/O Controller Manual GFK-2571 PACSystems RX3i PROFINET Controller Command Line Interface Manual GFK-2572...
  • Page 26 Note: If the product is purchased through an Authorized Channel Partner, please contact the seller directly for any support. Emerson reserves the right to modify or improve the designs or specifications of the products mentioned in this manual at any time without notice. Emerson does not assume responsibility for the selection, use, or maintenance of any product.
