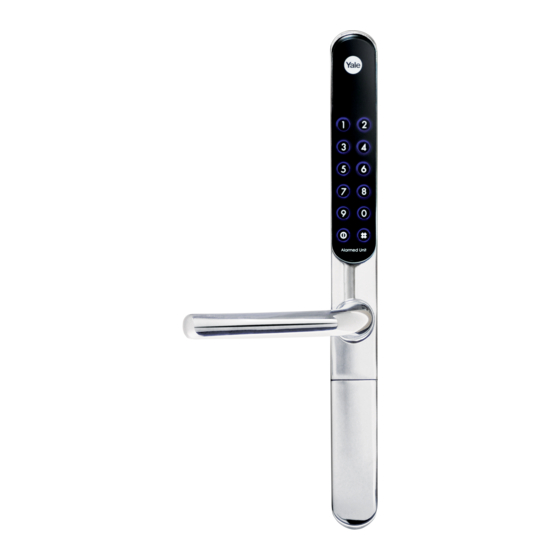

Yale Keyfree Installation Manual

Yale Keyfree Installation Manual

Advertisement

Quick Links

Quick Guide
(continued)

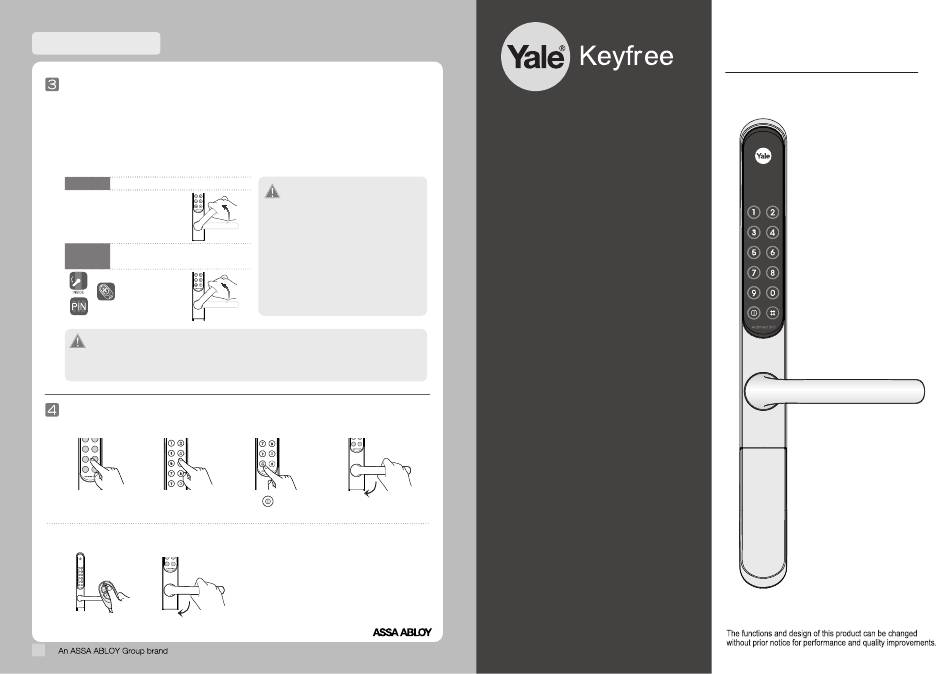

Securely Locking Your Door
》 Inside :
Press push button & lift the handle.
This can be done anytime and will always fully secure your door.
》 Outside :
Close the door and lift up the handle within the set connection time
Once the lever disengages you must enter your PIN or press remote and
lift up the lever within the connection time to securely lock your door.
Linked
Front handle engage
Within
Front handle not engaged after
Unlinked
the outside handle disconnected
Within
(Optional)
IMPORTANT
Your door is only securely locked from the inside when
the inside lever is lifted up & the voice instruction
"lock closed, securely locked" is heard & red LED shows.
Opening Your Door
•PIN Code
Press any button
Enter registered
PIN code
•Remote Control
(Optional)
Press the outer
Simply press the button
handle down
on the Remote Control
7
If the time expires you need to
re-engage the handle to securely lock
your door. You can re-engage by
pressing the remote, pressing the
inner lever down or entering your pin.
Exception :
In the Passage mode,
the handle is operable all the time.
※ The automatic disconnection time can
be varied by user setting.
Refer to section "settings".
Press
(Enter)
button
Press the outer
handle down
ISL-1251-00 Rev.2
DO NOT FIT KEY FREE UNTIL DOOR INSTALLTION IS COMPLETE.
BEFORE FITTING KEY FREE, READ THROUGH & FOLLOW ALL
THE SIMPLE INSTRUCTIONS in STEPS 1 - 4.
Installation Guide

Advertisement

loading
Need help?

Need help?

Do you have a question about the Keyfree and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Yale Keyfree

  • Page 1 Quick Guide (continued) Installation Guide Securely Locking Your Door 》 Inside : Press push button & lift the handle. This can be done anytime and will always fully secure your door. 》 Outside : Close the door and lift up the handle within the set connection time Once the lever disengages you must enter your PIN or press remote and lift up the lever within the connection time to securely lock your door.
  • Page 2 Keyfree Contents Installation Guide Installation Guide Contents Include Fixing Cylinder Fixing Cylinder Fitting The Spindle Ⓔ Fitting The Handing Screw ※ Lightly tighten Ⓔ Installation the cylinder ➞ fixing screw. Check Points after Installation Ⓕ Cylinder fixing screw Quick Guide...
  • Page 3 Ⓓ Installation To avoid any possibility of being locked out, do not close the door until a PIN code or a remote has been Ⓒ successfully registered to allow access back in. Ⓛ Ⓐ Ⓙ M5: Thin & Longest Screw M6: Thick &...
  • Page 4 Check Points after Installation Quick Guide Insert Batteries ① Insert Remote Control(Optional) module ② Registering Your PIN Code Family code is the code that you and your family remembers as your PIN. Take care inserting the Remote Control(Optional) module. The visitor code can be given to guests or work people. Once guests or work people have The pins can easily bend and may not be replaced under warranty left you can change the visitor code without you or your family learning a new one.
