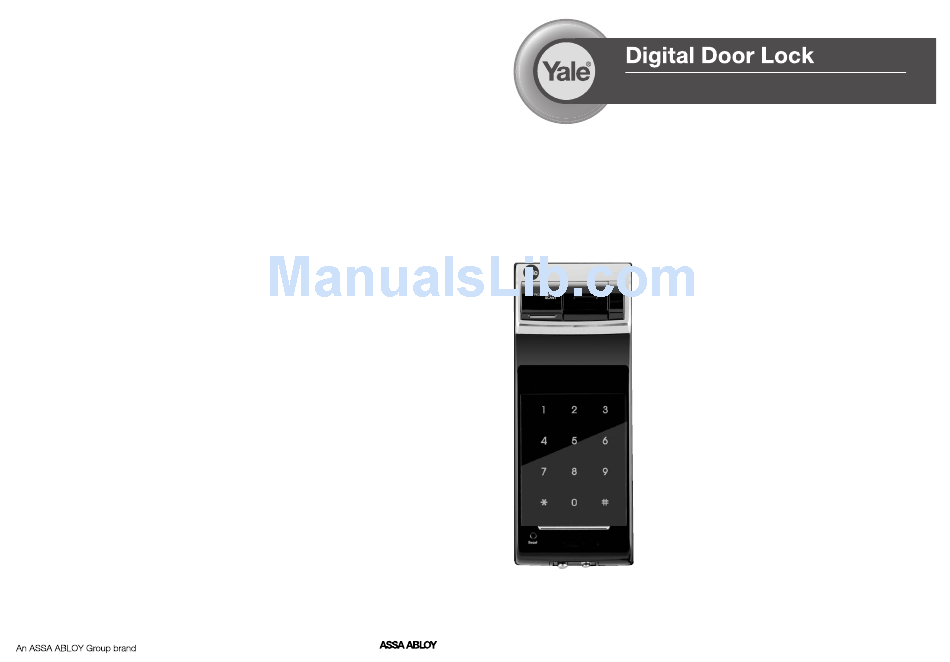

User Guide YDR4110 YDR4110 ※ The functions and design of this product can be changed without prior notice for quality improvement. ISL-1161-62 Rev.0...
CONTENTS Thank you for choosing a YALE product. Getting Started Safety Cautions We welcome you to this new door solution world of YALE that is the leading brand in the Product Features world digital door lock industry. Quick Instruction Please find comfort and security in yourself through perfectly combined digital and analog...
Safety Cautions Product Features Must Read This!!! Please read this carefully for your own safety. 1⃞ One-touch Fingerprint Verification Method (Easy Scan) Do not install the unit in outdoor Do not attempt to disassemble An infant and some users who Easy Scan technology has been applied to conveniently read a fingerprint in one environment.
Quick Instruction 1⃞ Register Password ➞ ➞ ➞ Press (Registration) Enter number Enter Password Press (Registration) button 1 button (4 to 12 digits) button 5⃞ Register Fingerprints ➞ ➞ ➞ ➞ Directions Press Enter number ❶ Enter the Password Sweep your Press (Registration) (Registration)
Components Overview Identification Basic Contents Front (Front Body, install on the outside of the door) The contents of this product may be subject to change without notice for performance or quality improvement. ❶ Fingerprint Operation Lamp 》 Basic Contents ❷ Keypad (10-Key) ❹...
How to Use How to Use To Use Password Fingerprint Passwords should be selected from 6 to 12 digits. [*] and [#] are not allowed. 》 To Register Password 》 Fingerprint Guide To change modes: Please refer to page 19. Order Play Description...
How to Use How to Use Normal Mode: Use Fingerprint Security Mode: Use Fingerprint Please refer to the page 19 to change the mode It enables you to make individual registration, and open a door through the registered fingerprint or Password. It enables you to make individual registration and deletion, and open a door only when the fingerprint number and the fingerprint match.
How to Use How to Use Remove Fingerprint Lock Door You may only delete each fingerprint separately in the Security Mode. 》 To Delete All Fingerprints 》 To Close Door from Outside Order Play Description Order Play Description 1⃞ Press Open the battery cover in the back body and (Registration) The built-in Auto Lock sensor automatically locks...
How to Use Settings Open Door from Inside Manual Lock Mode Alarm In the default setting, manual lock mode does not ring off the alarm when it unlocked by manual thumb turn. 》 Press Open/Close button However, the users can change it for their own security need. 》...
Settings Settings Automatic / Manual Lock Setting Fingerprint Mode Change Auto Lock setting locks a door within 5 seconds after the door is closed. The default setting is Normal Mode. 》 To Set Auto/Manual Feature 》 Fingerprint Mode Setting Order Play Description Order...
Settings Safety Feature Forced Lock Alarm Feature The alarm sound continues for 30 minutes or until it is disarmed. 》 Break-in / Damage Alarm 》 Outside Forced Lock Setting - Fingerprint Order Play Description Break-in: When someone tries to Break-in by opening a door when it is locked, the alarm will go off.
Safety Feature 3-minute Lock Feature At 3-minute Lock mode, no button, besides those in the back body, will work. 》 3-minute Lock Mode Display •If a Password or a Fingerprint that is yet to be registered is entered for 5 consecutive times, 3-minute Lock mode is on and nothing will work for 3 minutes.
Page 13
Option Option Remote Control Module Remote Control(Option) Buy the Remote control Module and install it to link the remote control. Not only FSK method but also the wireless encryption algorithm has been applied. 》 To Register Remote Control Order Play Description Open the battery cover in the back body.
Emergency Power Specifications Emergency Power Supply for Discharged Batteries Specifications You may open a door by contacting the 9V battery 》 To Supply Emergency Power Parts Specifications Remarks Order Play Description 19(D)×64.6(W)×160.2(H) Operating temperature : Front (Front Body) Zinc die-casting -15~55℃...
