Train the Model

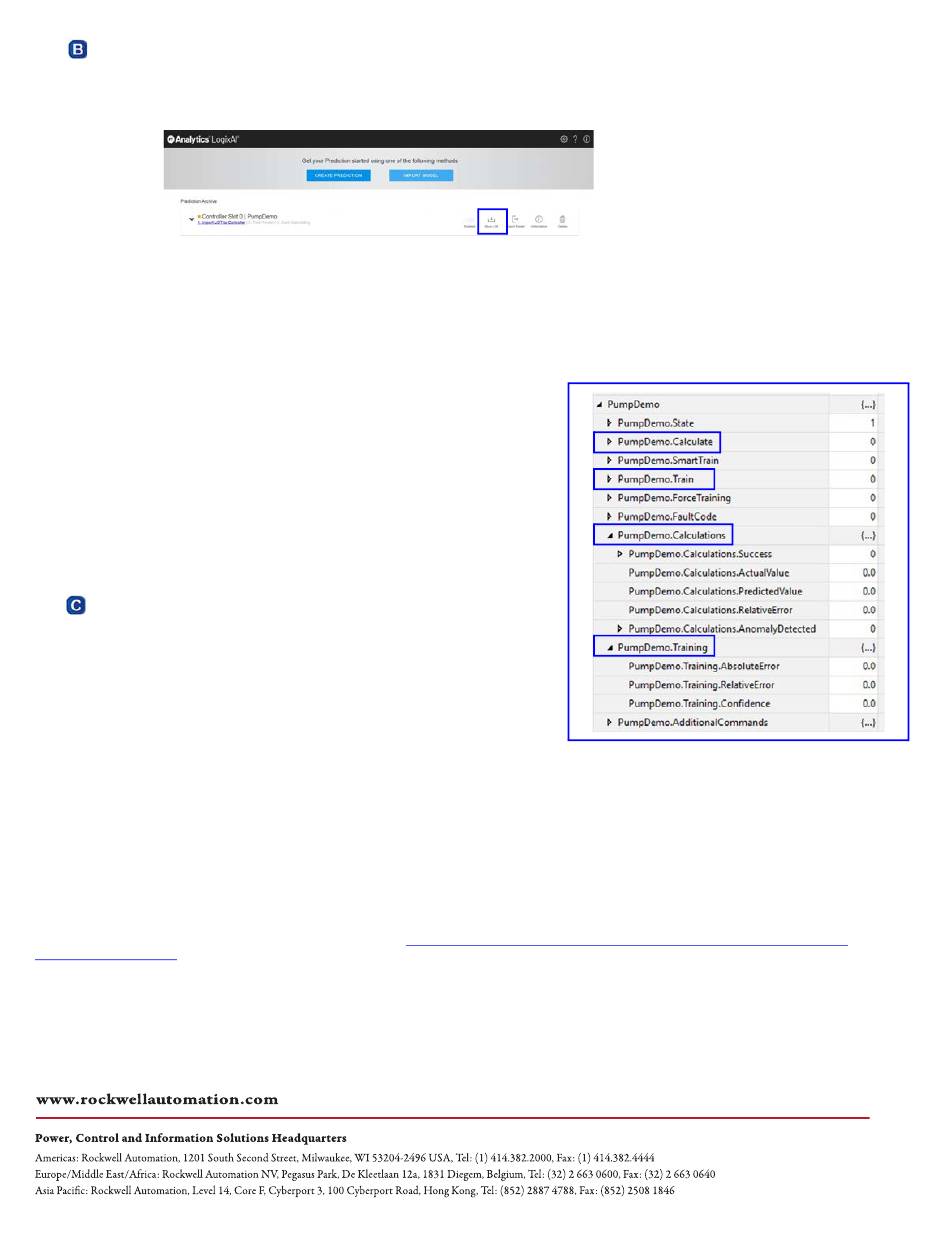

1. Save the model as a .L5X file.
The .L5X file contains a user-defined data type (UDT) that you import into the controller project.
2. Open the controller project and import the UDT.
You must have the programming software to edit the controller project.
3. Set the .TRAIN tag = 1.
The tag is reset = 0 when training is complete.
Complete training during normal system operation so that anomalous
operation can be detected later.
4. Repeat setting the train tag as many times as needed, until the confidence
in the results is sufficient.

Start Calculations

Once training is complete, that is, when the .State tag = 2, start the analytic
calculations.
1. Set the .Calculate tag = 1.
2. To determine appropriate system actions, monitor the results.
