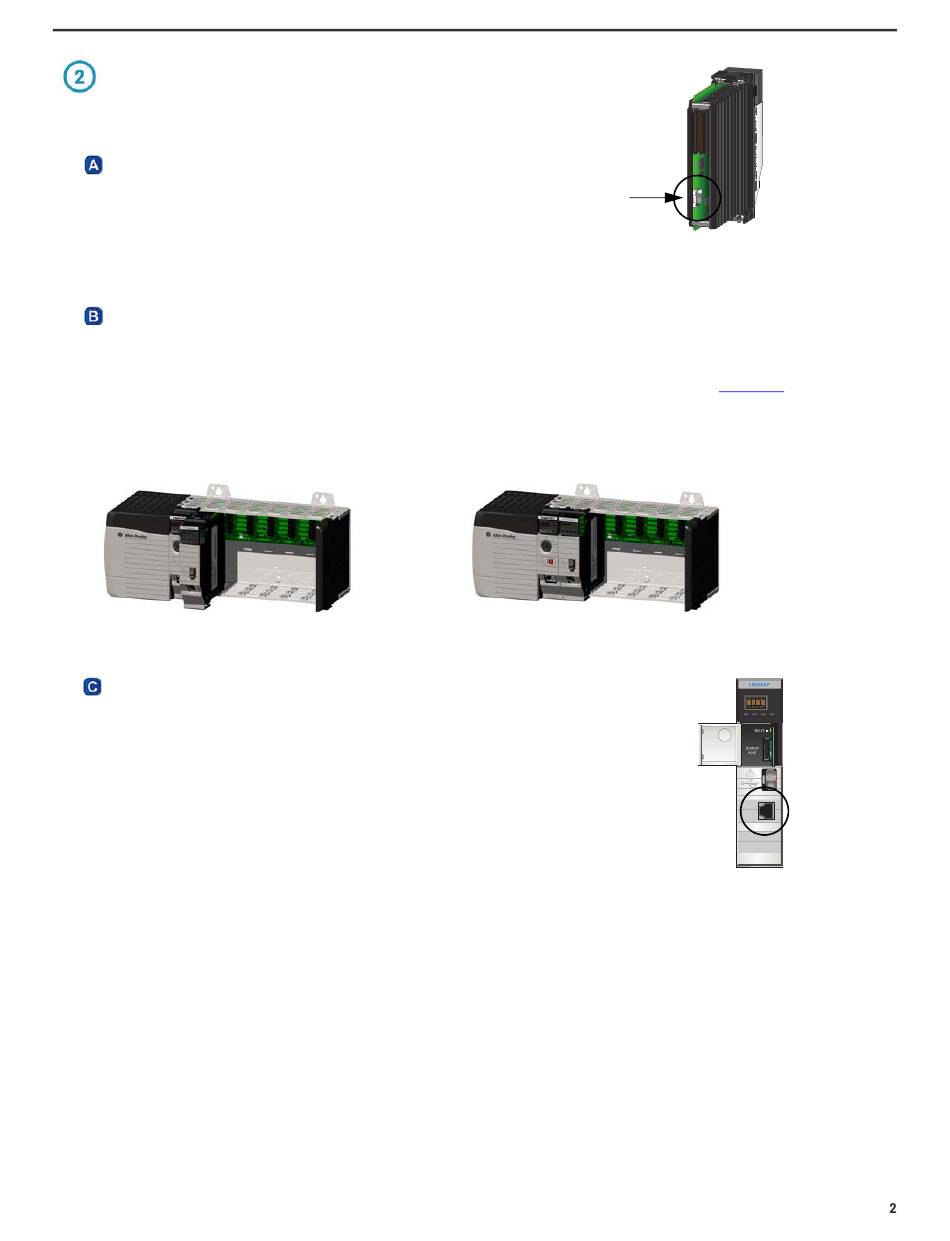

Set Up the Appliance

Remove the Battery Paper Tab

A red paper tab covers the side of the battery that faces the backplane when
the appliance is installed in a chassis. Remove the paper tab before you
install the appliance.

Install the Appliance in the Chassis

Install the appliance in any open slot in the local ControlLogix chassis, regarding the owner controller.
For complete installation instructions, see ControlLogix Compute Modules Installation Instructions, publication 1756-IN072.
1. Align the circuit board with the top and bottom guides in the chassis.
2. Slide the appliance into the chassis until it snaps into place.
3. Verify that the appliance is flush with the other installed modules.

Connect the Appliance to a Computer

1. Leave the dongle in the USB port.
The dongle provides licensing and is required for the appliance to operate.
2. Connect the ETH1 port of the appliance directly to an Ethernet port on a computer.
You use the computer to configure the appliance.
Rockwell Automation Publication 1756-QS002B-EN-P - April 2020
FactoryTalk Analytics LogixAI Quick Start
Battery Paper Tab
33802-M
COM MDL STS OK
33801-M
