Stator ground protection relay

Advertisement

100% Stator Ground Fault Protection
Major Features and Benefits

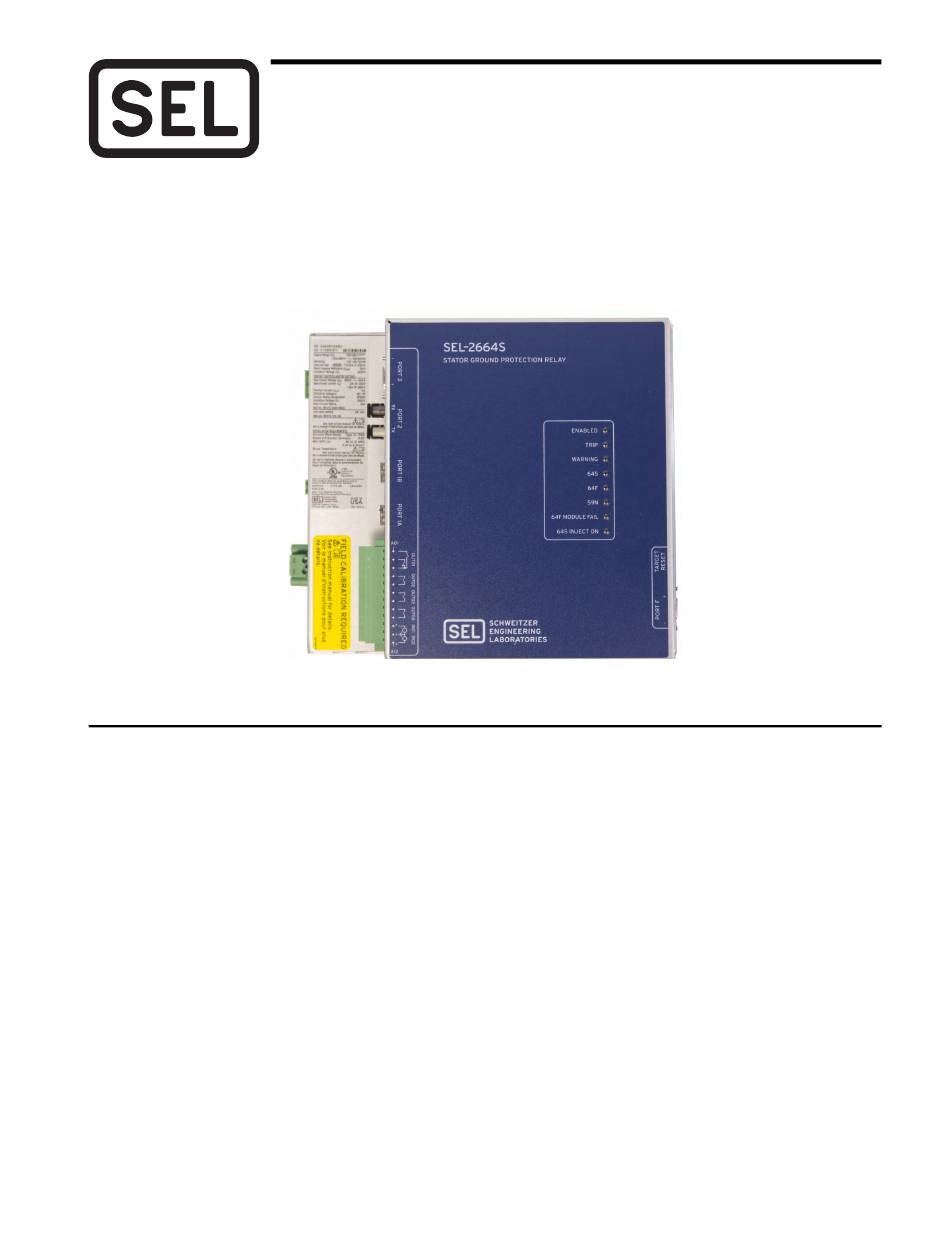

The SEL-2664S Stator Ground Protection Relay provides an exceptional combination of protection, metering, monitor-
ing, control, and communications in a compact industrial package.
Standard Protection and Control Features. Protect your generator against stator insulation degradation and
ground faults, and monitor the neutral grounding resistor. When used with an SEL-2664 Field Ground Module,
the SEL-2664S Relay protects against rotor field insulation faults to ground. The stator ground protection works
for 100 percent of the stator winding and for all operating conditions, including when the generator is starting,
ramping, or offline using a novel multifrequency injection method in conjunction with the neutral overvoltage
elements.
Operator Controls. Take advantage of multiple methods for accessing and using the operator interface of the
relay. The front and side panels have eight LEDs that indicate the ENABLED, TRIP, WARNING, 64S, 64F, 59N, 64F
MODULE FAIL, 64S INJECT ON status of the relay. The front panel also provides a TARGET RESET pushbutton for reset-
ting the relay and the targets.
Relay and Logic Settings Software. Use
engineering costs for relay settings and logic programming and simplify development of SEL
equations.
Metering and Monitoring. Use built-in metering functions to eliminate separately mounted metering devices.
Analyze SER reports and oscillographic event reports for rapid commissioning, testing, and post-fault
diagnostics. Additional monitoring functions include the Profile Report.
Control Inputs and Outputs. Take advantage of two internally wetted control inputs and four contact outputs
(one Form C and three Form A) for control and status indication.
Schweitzer Engineering Laboratories, Inc.
SEL-2664S
Stator Ground Protection Relay
100% of the Time
AC
®
SEL
QuickSet
SEL-5030 Software to reduce your
ERATOR
OGIC ®
control
SEL- 2664S Data Sheet

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SEL-2664S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Sel SEL-2664S

  • Page 1 When used with an SEL-2664 Field Ground Module, the SEL-2664S Relay protects against rotor field insulation faults to ground. The stator ground protection works for 100 percent of the stator winding and for all operating conditions, including when the generator is starting, ramping, or offline using a novel multifrequency injection method in conjunction with the neutral overvoltage elements.
  • Page 2 DNP3 serial and LAN/WAN ➣ IEC 61850 ➣ Simple Network Time Protocol (SNTP) ➣ File Transfer Protocol (FTP) ➣ Telnet (SEL ASCII) ® ➣ SEL protocols, including M communications IRRORED ➤ Conformally Coated. Overview Field Ground DC Field Excitation 59N1...
  • Page 3: Metering And Monitoring

    ➤ Stator Insulation Protection. The 64S element of and 59NRMS elements for trip, along with delay the SEL-2664S uses multisine signal injection at and torque control settings. The 59N elements are generator neutral to monitor 100 percent of the sta- independent of the 64S elements described previ- tor insulation.
  • Page 4 Binary protocol for machine-to-machine communication. Operate Quickly updates SEL communications processors, RTUs, and other substation devices with metering informa- tion, relay elements, I/O status, time tags, and summary event reports. Data are checksum protected. Binary and ASCII protocols operate simultaneously over the same communications lines, so there is no loss of control, sta- tus, or metering information while a technician transfers an event report.
  • Page 5 Apply an SEL communications processor as the hub of a Program latch set and latch reset conditions with star network, with point-to-point connection between the control equations. Use optoisolated inputs, OGIC hub and the SEL-2664S (see Figure 3). remote bits, or any programmable logic condition to set or reset the nonvolatile latch bits.
  • Page 6: Operator Controls

    QuickSet simplifies settings and provides analysis Organize settings with the relay database manager. ➤ support for the SEL-2664S. Create and manage relay Load and retrieve settings through use of a simple settings with QuickSet in the following ways: PC communications link.
  • Page 7 The SEL-2664S is intended for high-resistance grounded Figure 8 and Figure 9 show the ac connections for the generator applications and cannot be used with low- SEL-2664S with the neutral CT on the secondary side of the neutral grounding transformer. impedance-grounded, solidly grounded, and ungrounded configurations.
  • Page 8 SEL-700G Relays With Neutral CTs on the Secondary Injection Source Mode setting, MODE_SRC := P2. Side of the Neutral Grounding Transformer Figure 10 shows the ac connections for the SEL-2664S with the neutral ground resistor (NGR) and CTN on the primary side and a neutral voltage transformer.
  • Page 9 2-C twisted pair (preferably shielded) Do not ground the CTN leads. Figure 13 Parallel Generators Configuration—AC Connections Using Two SEL-2664S Relays See Figure 14 for a typical example of the dc connections for 100 percent stator ground protection using the...
  • Page 10 Relay Mounting and Dimensions Figure 15 SEL-2664S Wall-Mount Dimensions Figure 16 SEL-2664S Connection Diagram for Wall-Mount Option SEL- 2664S Data Sheet Schweitzer Engineering Laboratories, Inc.
  • Page 11 Figure 17 SEL-2664S Panel-Mount Dimensions Figure 18 SEL-2664S Connection Diagram for Rack and Panel-Mount Options Figure 19 SEL-2664S Rack-Mount Dimensions Schweitzer Engineering Laboratories, Inc. SEL- 2664S Data Sheet...
  • Page 12: Relay Features And Connections

    Terminal B : Terminal D: Neutral Voltage Neutral Current VN/ I_SRC Injection Source Power Supply 125/250 IN Connections Vdc or 110/240 Vac Connections Side Front Figure 20 SEL-2664S Front and Side Faceplates SEL- 2664S Data Sheet Schweitzer Engineering Laboratories, Inc.
  • Page 13: Specifications

    1.5 A Interruptions: 10 ms @ 125 Vdc 10 ms @ 120 Vac Electromagnetic loads > 72 VA, PF < 0.3, 50–60 Hz Voltage Protection Across Open Contacts: 270 Vac, 80 J Schweitzer Engineering Laboratories, Inc. SEL- 2664S Data Sheet...
  • Page 14 Optoisolated Control Inputs (Internally Wetted to 24 Vdc) Communications Protocols Current Draw at Nominal DC SEL, Modbus, DNP3, FTP, TCP/IP, Telnet, SNTP, IEC 61850, M IRRORED Voltage: 4 mA typical Rated Insulation Voltage (U 300 Vac Operating Temperature Rated Impulse Withstand Voltage...
  • Page 15: Product Standards

    EMC Immunity currents. Use the following table as a guide in selecting wire sizes. Refer to SEL Application Note AN2014-08 for wiring and termination Electrostatic Discharge Immunity: IEC 61000-4-2:2008 guidance. Strip the wires 8 mm (0.31 in) for termination and IEC 60255-26:2013;...
  • Page 16: Relay Elements

    2350 NE Hopkins Court • Pullman, WA 99163-5603 U.S.A. trademark of their respective holders. No SEL trademarks may be used without written Tel: +1.509.332.1890 • Fax: +1.509.332.7990 permission. SEL products appearing in this document may be covered by U.S. and Foreign selinc.com • info@selinc.com patents.
