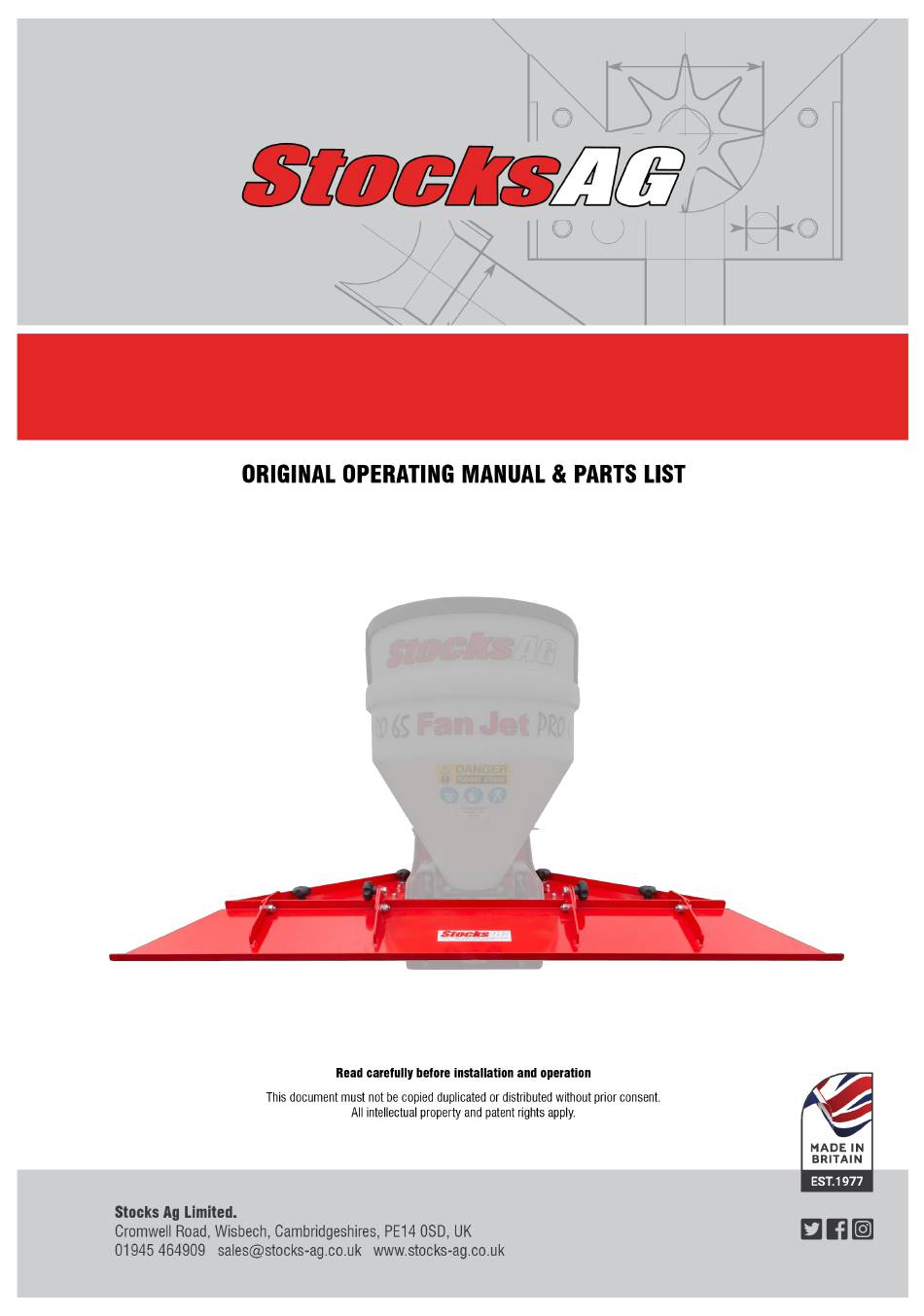

- Page 1 Revision 3 23/08/23 Grass Seed Deflector Kit Grass Seed Deflector Kit - Operating Manual & Parts List P1...
- Page 2 Index Section Page E.C. DECLARATION OF CONFORMITY UKCA. DECLARATION OF CONFORMITY General Information Technical Data Intended Use Unintended Use Warranty Safety Storage Fitting Instructions Grass Seed Agitator Grass Seed Calibration Guide Parts Diagram Parts List Grass Seed Deflector Kit - Operating Manual & Parts List P2...
- Page 3 Grass Seed Deflector Kit - Operating Manual & Parts List P3...
- Page 4 Grass Seed Deflector Kit - Operating Manual & Parts List P4...
-
Page 5: General Information
1.1 Technical Data Model: Grass Seed Deflector Kit Fan Jet Pro Part No FJ-004-DEFLECTOR or Fan Jet Plus Part No FJ-004-DEFLECTOR Max spreading width: 6m Net weight: 13kg Dimensions: Assembled 1350mm x 650mm 1.2 Intended Use... -
Page 6: Warranty
1.4 Warranty We provide a 12 month warranty from the date of invoice (the invoice for the machine will serve as a warranty certificate). This warranty is applicable for cases of material or construction faults and does not include parts that are damaged by normal or excessive wear. -
Page 7: Personal Protection Equipment
2.0 Safety Ensure care is taken when lifting the machine. Safe lifting practice to be observed when handling as the net weight is over 25kg • We advise safety shoes and protective gloves are worn when handling the machine. • Assistance will be required when lifting or lowering the machine. -
Page 8: Fitting Instructions
4.0 Fitting Instructions Please refer to the parts diagram before assembly Ensure the rubber buffers as shown (D) are fitted to both side mounting plates (8 & 9) Supplied with a two side arms (items 8 & 9) which enable the deflector kit to be fitted onto the existing Fan Jet Pro chassis or frame. - Page 9 5.0 Grass Seed Agitator NOTE: Not available for the Fan Jet Plus. The Grass Seed Agitator is included in the Grass Seed Deflector Kit (Fan Jet Pro only) or can be supplied separately. Available as a separate item: Part No. FJ035G To remove the original standard agitator - use the 3mm Allen key provided and loosen the upper grub screw on the central hub of the fan disc - once loosened the agitator will pull out from within the hopper.
- Page 10 6.0 Grass Seed Calibration Guide These settings are to be used as guides only, it is important you always test the product through the machine to establish the spread width pattern and rate are accurate. Grass Seed - 6 meters FORWARD SPEED km/h 14.2 11.4...
- Page 11 7.0 Grass Seed Deflector Parts Diagram Grass Seed Deflector Kit - Operating Manual & Parts List P11...
- Page 12 8.0 Grass Seed Deflector Parts List Item Part # Description Remarks FJ033A M8 Fem Knob FJ035G Grass Seed Agitator Not supplied in Fan Jet Plus kits (FJ035G supplied with 1 x FJ036A) FJ036A Nylon Washer Not supplied in Fan Jet Plus kits FJ415A Tipping Bracket Pin FJ417A...
