3. Aufbau und Anschlüsse

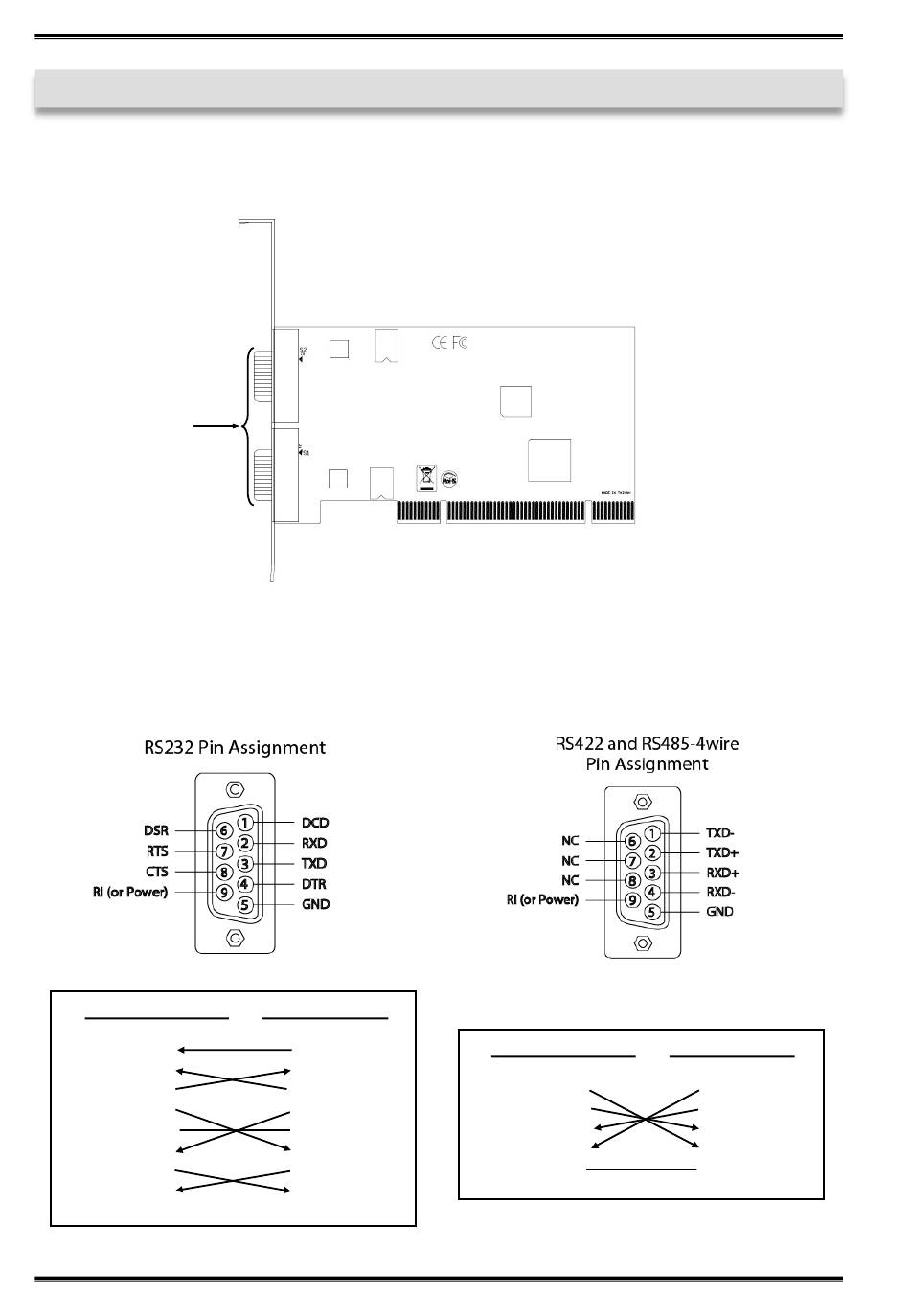

3.1 Aufbau
S1 & S2:
9 Pin Stecker
serieller Anschluss
3.2 Anschlüsse
DB9 (EX-42032IS)
1 DCD
2 RXD
3 TXD
4 DTR
5 GND
6 DSR
7 RTS
8 CTS
© Copyright 2020 by EXSYS Vertriebs GmbH. All Rights Reserved
DB9 (Endgerät)
1 DCD
2 RXD
3 TXD
4 DTR
5 GND
6 DSR
7 RTS
8 CTS
4
DB9 (EX-42032IS)
1 TXD-
2 TXD+
3 RXD+
4 RXD-
5 GND
EX-42032IS
DB9 (Endgerät)
1 TCD-
2 TXD+
3 RXD+
4 RXD-
5 GND
