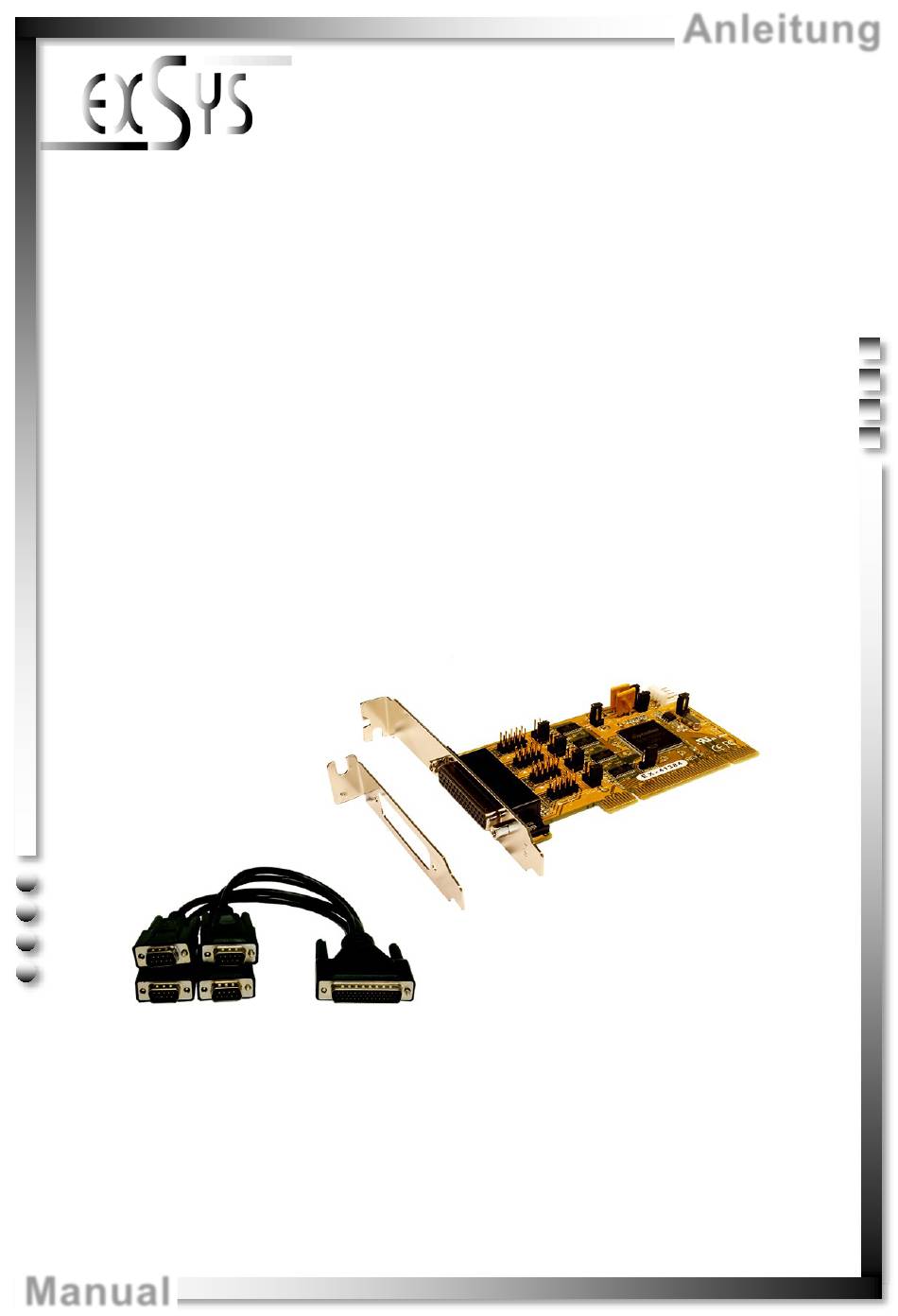

- Page 1 Anleitung EX-41384 RS-232 PCI Karte mit 4 x 9 Pin Anschluss Vers. 1.0 / 01.10.15 Manual...
-
Page 2: Table Of Contents
EX-41384 Inhaltsverzeichnis Beschreibung ······················································································ 3 Lieferumfang ······················································································ 3 Aufbau und Anschlüsse ······································································ 4-5 3.1 Aufbau······································································································ 4 3.2 Anschlüsse ······························································································ 4-5 Jumper Einstellungen ········································································· 5-6 Hardware Installation ············································································ 6 Treiber Installation ············································································· 7-8 Technische Daten ················································································ 8 Index Description ························································································· 9 Extent of Delivery ················································································... -
Page 3: Beschreibung
Deutsch 1. Beschreibung Die EX-41384 ist eine PCI serielle RS-232 Karte mit 4 seriellen FIFO 16C95x Ports, für den Anschluss von High-Speed seriellen RS-232 Peripherie Geräten (z.B. Terminal, Modem, Plotter usw.). Der serielle PCI Bus unterstützt dabei optimal die Leistung des schnellen SystemBase Chipset mit 256byte FIFO Cache. -
Page 4: Aufbau Und Anschlüsse
(Bitte nicht 4 x 9 Pin Serielle ändern) Anschlüsse SystemBase Chipset J3-J6: JP3: PME Ein-/ Ausschal- Interne Anschlüsse 3.2 Anschlüsse S1-S4: DB9 (EX-41384) DB9 (Endgerät) 1 DCD 1 DCD 2 RXD 2 RXD 3 TXD 3 TXD 4 DTR 4 DTR... -
Page 5: Jumper Einstellungen
= 12Volt vom Mainboard (STANDARD) JP3: = Die Funktion PME ist ausgeschaltet. (Werkseinstellung) = Die Funktion PME ist eingeschaltet. Der PC kann nun durch die Seriellen Ports der EX-41384 aktiviert werden. ENA | DIS Dieser sollte aber bei Standard Anwendungen nicht verstellt werden. -
Page 6: Hardware Installation
Wenn Sie die Karte installieren, beachten Sie bitte die folgenden Hinweise. Da es große Unterschiede zwischen PC‘s gibt, können wir Ihnen nur eine generelle Anleitung zum Einbau der EX-41384 geben. Bei Unklarheiten halten Sie sich bitte an die Bedienungsan- leitung Ihres Computersystems. -
Page 7: Treiber Installation
EX-41384 Deutsch 6. Treiber Installation Windows 2000/ XP/ Vista/ 7/ 8.x/ 10/ Server 20xx Windows erkennt beim Start einen neuen “PCI Controller“ und öffnet automatisch den Windows Hardwareassistenten. Wählen Sie die manuelle Installation aus und legen Sie die Treiber CD in Ihr CD-ROM Laufwerk (z.B. Laufwerk D:). Geben Sie nun den Pfad "D:\IO\SYSTEMBASE\DRIVER\PCI"... -
Page 8: Technische Daten
Deutsch EX-41384 6. Treiber Installation SCO UNIX / LINUX Die Treiber für Linux befinden sich in folgendem Verzeichnis: "D:\IO\SYSTEMBASE\DRIVERS\PCI\SCO" Da sich die einzelnen Distributionen und Kernelversionen sehr voneinander unterschei- den, können wir Ihnen leider keine Installationsanweisung geben. Bitte halten Sie sich an die Installationsanweisung für Standard I/O Ports Ihrer Unix/Linux Version. -
Page 9: Description
Support Windows NT 4.0/ 9x/ 2000/ XP/ Vista/ 7/ 8.x/ 10/ Server 20xx/ Linux Certificate for CE / FCC / RoHS / WEEE DE97424562 2. Extent of Delivery Before you install the EX-41384 in your PC, please check at first the contents of the delivery: EX-41384 ... -
Page 10: Layout And Connections
(Please do not with 4 x 9 Pin change) serial connector SystemBase Chipset J3-J6: JP3: PME On/Off Internal connectors 3.2 Connections S1-S4: DB9 (EX-41384) DB9 (Device) 1 DCD 1 DCD 2 RXD 2 RXD 3 TXD 3 TXD 4 DTR 4 DTR... -
Page 11: Jumper Settings
EX-41384 English 3. Layout and Connections 3.2 Connections 1 +5V 2 GND 3 GND 4 +12V For aux power X5V and X12V (JP2), J2 must be connected to pc power supply! If not, the card wont work. 4. Jumper Settings JP1: +3.3V... -
Page 12: Hardware Installation
If you are ready with the jumper settings, please proceed with the following installation instructions. Because there are large differences between PC’s, we can give you only a general installation guide for the EX-41384. Please refer to your computer’s reference manual whenever in doubt. -
Page 13: Driver Installation
EX-41384 English 6. Driver Installation Windows 2000/ XP/ Vista/ 7/ 8.x/ 10/ Server 20xx After starting Windows it recognizes a new “PCI Controller“ and opens the hardware assistant. Please choose manual installation and put the driver CD into your CD-Rom drive. -
Page 14: Technical Information
English EX-41384 6. Driver Installation CHECK THE INSTALLED DRIVER Click at >Start< >Programs< >Administrative Tools[Common]< >Windows NT- Diagnostics< then click at >Resource< >IRQ<. Here you should find the entry „09 o 0 PCI“. Then click at >I/O-Port< here you should see the entries „D400-D407 sysbase 0 PCI“...
