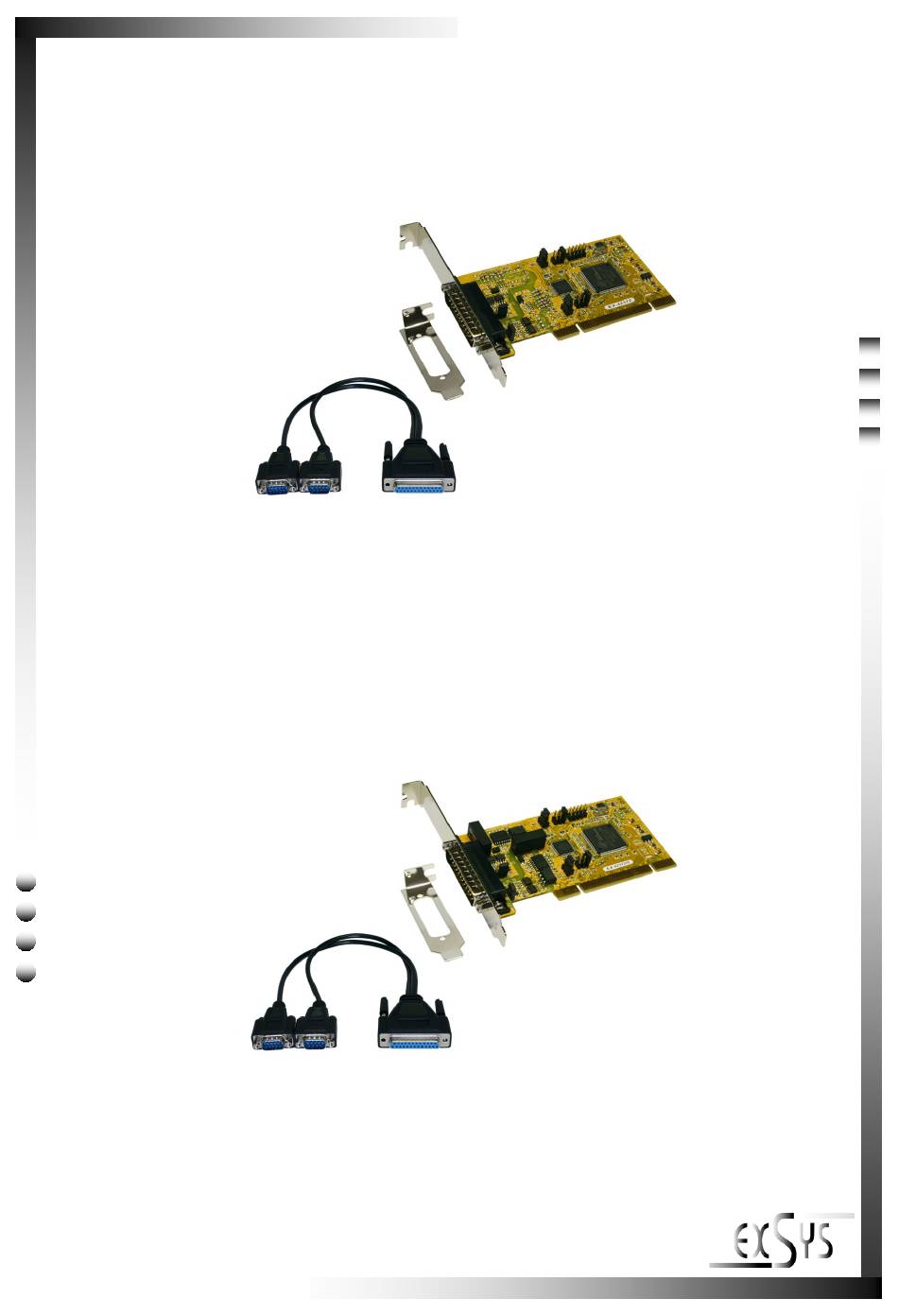

- Page 1 Bedienungsanleitung Vers. 1.1 / 31.05.13 EX-42372 RS-422/485 Board EX-42372IS RS-422/485 Board Surge Protection & Optical Isolation User Manual...
-
Page 2: Table Of Contents
Deutsch Seriell RS-422/485 PCI Karte Inhaltsverzeichnis Beschreibung ··························································································· 3 Paketinhalt ······························································································· 3 Layout und Jumper Einstellungen ··························································· 4 3.1 Layout ······················································································································· 4 3.2 Octopus-Kabel ··········································································································· 4 3.3 Jumper Einstellungen ································································································ 5 Hardware Installation ··············································································· 6 Treiber Installation ··················································································· 7 5.1 Windows 98/ ME/ 2000/ XP/ Vista/ 7/ 8 und Server 200x ·········································· 7 Windows NT 4.0 ·······································································································... -
Page 3: Beschreibung
Deutsch 1. Beschreibung Vielen Dank das Sie sich für die RS-422/485 PCI Karte von EXSYS entschieden haben. Sie ist eine Add-On Karte für den PCI-Bus für Desktop, Workstation oder Server um eine High-Speed Datenübertragung herzustellen. Die Seriellen Ports sind kompatible mit dem RS-422/485 Standard. -
Page 4: Layout Und Jumpereinstellungen
Deutsch Seriell RS-422/485 PCI Karte 3. Layout und Jumpereinstellungen 3.1 Layout JP7: S1 Abschlusswiderstand JP1 RS-485TXD Control JP5: RS-422/485 Ein/Ausschalten JP3 Echo Mode Einstellung Nur für Testzwecke im Werk JP8: JP6: RS-422/485 S2 Abschlusswiderstand JP2 RS-485TXD Control Mode Einstellung Ein/Ausschalten JP4 Echo J2: DB25 Stecker für Octopus-Kabel 2 x 9 Pin 3.2 Octopus Kabel (DB25 Buchse zu 2 x DB9 Stecker) -
Page 5: Jumper Einstellungen
Seriell RS-422/485 PCI Karte Deutsch 3.3 Jumper-Einstellung Es gibt zwei Jumper-Reihen um die Ports S1 und S2 einzustellen 1. Mode Einstellungs-Jumper: JP5 für S1 und JP6 für S2 2. Abschlusswiderstand Jumper: JP7 für S1 und JP8 für S2 3. Echo oder No Echo Jumper: JP3 für S1 und JP4 für S2 4. -
Page 6: Hardware Installation
Deutsch Seriell RS-422/485 PCI Karte 4. TXD Control Einstellung: Dieser Jumper wird verwendet im Mode RS-485 um das Steuersignal des Sender- Puffer zu kontrollieren. Es hat zwei Einstellungen. Die erste ist „MAN“ (manuell) und die zweite ist „AUT“ (automatisch). Die zweite ist die Werkseinstellung und sollte nicht verstellt werden. -
Page 7: Treiber Installation
Seriell RS-422/485 PCI Karte Deutsch 5. Treiber Installation Anmerkung! Bitte lassen Sie Windows nicht automatisch nach den Treibern suchen, da dies wegen den INF Files zu Problemen führen könnte. Stattdessen durchsuchen sie manuell den Treiber an der richtigen Stelle (Ordner) auf der mitgelieferten CD. Bild 1 Die Treiber finden Sie in dem Ordner für das installierte Betriebssystem. -
Page 8: Verdrahtungsübersicht
Deutsch Seriell RS-422/485 PCI Karte 6. Verdrahtungsübersicht S1 und S2 Anschlussbelegung DB 9M 9 Pin D-SUB Stecker (S1 und S2) Pin Signal Pin Signal Pin Signal TXD- (DATA-) RXD- TXD+ (DATA+) RXD+ RS-485 (2 Draht) Verkabelung DATA(-) Pin 1 Pin 1 DATA (-) DATA(+) Pin 2... -
Page 9: Description
Seriell RS-422/485 PCI Board English 1. Description Thank you for purchasing this 2-Port RS422/485 Serial PCI Card. It is a universal add on card that connects to a PC or server via the PCI Bus, providing high-speed serial connectivity. The serial ports are fully compatible with RS422/485 standard by the bun- dled Serial COM port drivers. -
Page 10: Layout And Jumpersetting
English Seriell RS-422/485 PCI Board 3. Layout and Jumpersetting 3.1 Layout JP7: S1 Terminator JP1 RS-485TXD Control JP5: RS-422/485 Enable/Disable JP3 Echo Mode Setting Factory Use Only JP8: JP6: RS-422/485 S2 Terminator JP2 RS-485TXD Control Mode Setting Enable/Disable JP4 Echo J2: DB25 male connector for Octopus cable with 2 x 9 Pin 3.2 Octopus cable (DB25 female to 2 x DB9 male) Port 1 (DB 9 pin male connector) -
Page 11: Jumper Setting
Seriell RS-422/485 PCI Board English 3.3 Jumper setting There are 2 sets of the jumpers to set the settings for port 1 (S1) and port 2 (S2) respectively. 1. Mode Selection Jumper: JP5 for S1 and JP6 for S2 2. Termination Resistor Enable/Disable Jumper: JP7 for S1 and JP8 for S2 3. -
Page 12: Hardware Installation
English Seriell RS-422/485 PCI Board 4. TXD Control Setting: This jumper is used to select the control signal for the transmitter buffer in RS485 2- wire mode. There are 2 settings are selectable, one is “MAN” (manually) the other one is “AUT” (automatically, factor default), please keep it at “AUT” in all cases. JP1 for S1 Port JP2 for S2 Port MAN AUT... -
Page 13: Driver Installation
Seriell RS-422/485 PCI Board English 5. Driver Installation Note: PLEASE DO NOT LET WINDOWS AUTO SEARCH THE DRIVERS ON THE CD, it will cause problems because the INF files will be conflict in this case. Instead, please browse to the correct location (folder) manually to make sure the correct drivers are chosen and installed correctly. -
Page 14: Pin Assignments And Cable Wiring
English Seriell RS-422/485 PCI Board 6. Pin Assignments and Cable Wiring S1 and S2 Pin connection DB 9M 9 Pin D-SUB male connector (S1 and S2) Pin Signal Pin Signal Pin Signal TXD- (DATA-) RXD- TXD+ (DATA+) RXD+ RS-485 (2-wire) Cable Wiring Pin 1 DATA (-) DATA(-)
