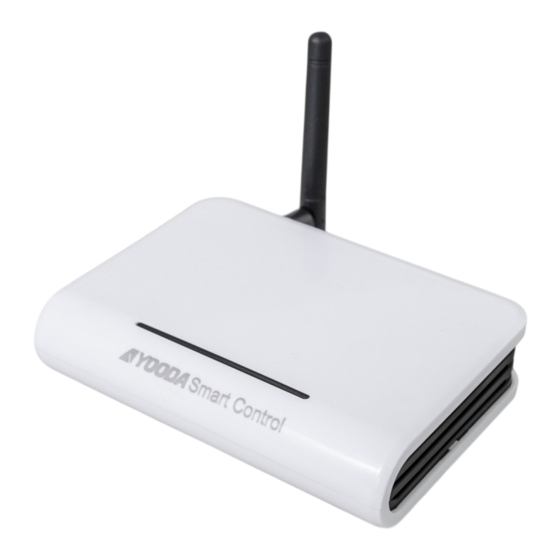

YOODA SMART CONTROL UNIT Manual

Hide thumbs Also See for SMART CONTROL UNIT:
Table of Contents

Advertisement

Quick Links

Download this manual
www.sukcesgroup.pl
In order to fully explore available functions of YOODA SMART CONTROL UNIT (YSC_UNIT) please take a moment and read this manual before
using the device.
All devices work on 433 MHz frequency.

Table of contents

1. Safety rules
1. Safety rules
1. Before connecting or starting control unit please read this manual.
2. Device needs to be connected to the internet according to specific parameters.
3. Control unit should not operate in places with high humidity (bathroom, sauna etc.).
4. Control unit should not be places next to sources of high temperature (radiator, fireplace, furnace etc.).
5. Control unit should not be placed within the reach of children.
6. Control unit should not be covered. It's recommended to leave at least 10 cm of free space over and on the sides of
the device.
7. Before cleaning or conservation control unit should be disconnected from power source. Unit is not water resistant
and should be protected from any liquids or any other potentially harmful substances.
8. Unit should not be opened. Do not attempt to repair the unit yourself - only manufacturer or authorized retailer can
perform any modifications or repairs.
9. Control unit should not be placed next to a strong magnetic field, as it can cause permanent damage to the device.
10. Control unit cannot be operated in explosive areas or where it is legally prohibited.
11. To protect the unit during a thunder storm power supply should be disconnected.
12. Control unit should not be connected to power supply that do not met all technical requirements.
13. Control unit should be protected from vibrations and shakes.
14. Control unit needs to be protected with a password - see point 2.3.
This symbol found on the apparatus indicates that the apparatus must be placed in a separate collection facility for
electronic waste and not disposed with household waste. Instead, it should be handed over to an applicable collection
point for the recycling of electrical and electronic equipment.
Allowing for specialized collection point to handle used device will allow for raw materials to be recycled and will have positive
impact on the natural environment.
YOODA SMART CONTROL UNIT
5. Configuration and work mode
5.1. Adding devices
5.3. Crating groups

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SMART CONTROL UNIT and is the answer not in the manual?

Questions and answers

Related Manuals for YOODA SMART CONTROL UNIT

Summary of Contents for YOODA SMART CONTROL UNIT

  • Page 1: Table Of Contents

    YOODA SMART CONTROL UNIT www.sukcesgroup.pl In order to fully explore available functions of YOODA SMART CONTROL UNIT (YSC_UNIT) please take a moment and read this manual before using the device. All devices work on 433 MHz frequency. Table of contents 1.

  • Page 2: Ysc Unit Description

    2. YSC unit description 2.1 Technical information 1. Can control YOODA and CORTINO brand devices with smartphones, tablets and computers. 2. Allows to create and manage groups of devices. 3. Allows to create scenarios (combination of set actions to different devices) and determine the time of automatic activation.

  • Page 3: Construction

    2. YSC unit description 2.3 Working mode YOODA SMART CONTROL unit can work in one of the three modes. Work mode can be changed after creating first connection of control unit through app: Settings > Network connections > Wireless network connection Warning! Control unit in default settings does not require password for connection, which allows for unauthorised users to set connection and control programmed devices.

  • Page 4: First Start-Up

    To operate control unit properly dedicated app needs to be downloaded and installed on the device. Using Google Play or App Store search ‘yooda smart control’ phrase or use QR code below. Language of the app can be changed. When app is started for the first time it will automatically set to the language of the device (or English, if it’s unavailable).

  • Page 5: Connecting By Ethernet Cable

    Than choose Wi-Fi network generated by the router (not by the Smart Control unit). 4. Mobile app - interface description Due to the changes introduced in the system functions and various sizes of mobile devices presented screenshots are only illustrative.
  • Page 6 To create a widget, hold your finger on the homescreen of your mobile device. Depending on your Android system version, add a widget from the popup window or open a list of available applications and go to the widgets tab. Click on the "YOODA Smart Control"...

  • Page 7: Creating And Activaitng Scenarios

    5. Configuration and work mode 5.3 Creating groups In the ‘Settings’ tab press Press ‘Add devices group’. Specify name of the group, select preferred ‘Devices groups’. image and add devices into the group. Select ‘Save’ to save the settings after configuration. 5.

  • Page 8: Creating And Activaitng Choreography

    Add devices After choosing devices specify After creating new scenario it can be Manually by running the script, for the scenario. its actions and save scenario activated manually by clicking on the we can run it immediately or set by clicking ‘Save’. ‘Play’...

  • Page 9: Connecting Ysc Unit To Local Wi-Fi

    Changes in choreography should be saved To run a choreography Choreography elements will appear Due to external factors it may happen that by clicking the button at the bottom of the click icon next to its name. and the timer will activate commands some devices may not receive commands screen.

  • Page 10: Remote Access Service

    1. Smart Control unit needs to be connected to the internet. 2. Current time needs to be set on Smart Control unit. 3. Remote access service function needs to be activated. Restart the Smart Control unit every time after you change network connection settings and test remote control service again.

  • Page 11: Setting Password

    To connect control device to using ‘Settings’ tab. Smart Control unit press ’Connect remotely’. 5. Configuration and work mode 5.8 Setting password To set password go into ‘Settings’, Choose ‘Change Smart Control unit and then choose ‘Advanced’. access password’.

  • Page 12: Controlling Device From Computer

    5. Configuration and work mode 5.9 Controlling device from computer Control unit, as well as the computer, must be connected to the same local Wi-Fi network. To control roller shutters using computers web browser it’s necessary to know IP address of the control unit in local Wi-Fi network.

  • Page 13: Demo Version

    7. Demo version Demo version was designed to show all the possibilities of the YOODA SMART CONTROL app. For the app to work in DEMO mode there is no need to connect to any control unit. App is equipped with exemplary setting.
