ORION TELESCOPES & BINOCULARS EZ Finder Deluxe 7227 Instruction Manual

orion
Congratulations on your purchase of an Orion EZ
Finder Deluxe.
The EZ Finder Deluxe reflex sight makes
pointing your telescope almost as easy as pointing your finger!
The sight boasts a wide field of view and many useful features
that truly make finding celestial objects easy.
The EZ Finder Deluxe has four different and useful reticles, or
sight patterns, to choose from. The chosen reticle is superim-
posed on the viewing window of sight and allows you to train
your telescope on a desired celestial object quickly and easily.
The EZ Finder Deluxe lets you point your telescope without
having to utilize the different and sometimes confusing view of
a magnified finderscope. Not only does the reflex sight have
four different reticles to choose from, but you can also control
the brightness of the reticle with the built-in brightness adjust-
ment knob, making it easy to retain your dark-sky optimized
eyes while still aiming your telescope with precision.
Parts list
1 EZ Finder Deluxe
1 Dovetail bracket
1 Hex key (3mm)
1 Lens cover
installation
First, open the box and make certain that all the parts listed
above are present.
For most Orion telescopes, the EZ Finder Deluxe's dovetail
bracket will slip neatly into the dovetail base that held the tele-
scope's original finder scope. If your telescope is not equipped
with an Orion dovetail base, we offer individual dovetail bases
designed to fit the EZ Finder Deluxe dovetail bracket. Call our
Sales department at 800-676-1343, or visit our web site at
www.oriontelescopes.com for details.
To attach the dovetail bracket to the EZ Finder Deluxe, loosen
the two 3mm socket-head cap screws on the bottom rail of
the EZ Finder Deluxe with the included 3mm hex key. Slide
the bottom rail onto the grooves of the dovetail bracket, and
tighten the two 3mm socket-head cap screws to secure the
sight (Figure 1).
To attach the EZ Finder Deluxe to your telescope, simply slide
the dovetail bracket into the telescope's dovetail base and
tighten the thumbscrew on the base to secure the bracket.
operation
The EZ Finder Deluxe works by projecting a small reticle, or pat-
tern, onto the viewing lens mounted in the front of the unit. When
you look through the viewing window, the reticle will appear to
float in space, allowing you to locate even the faintest of deep
instruction Manual
EZ Finder Deluxe
®
#7227
3mm socket-head screws

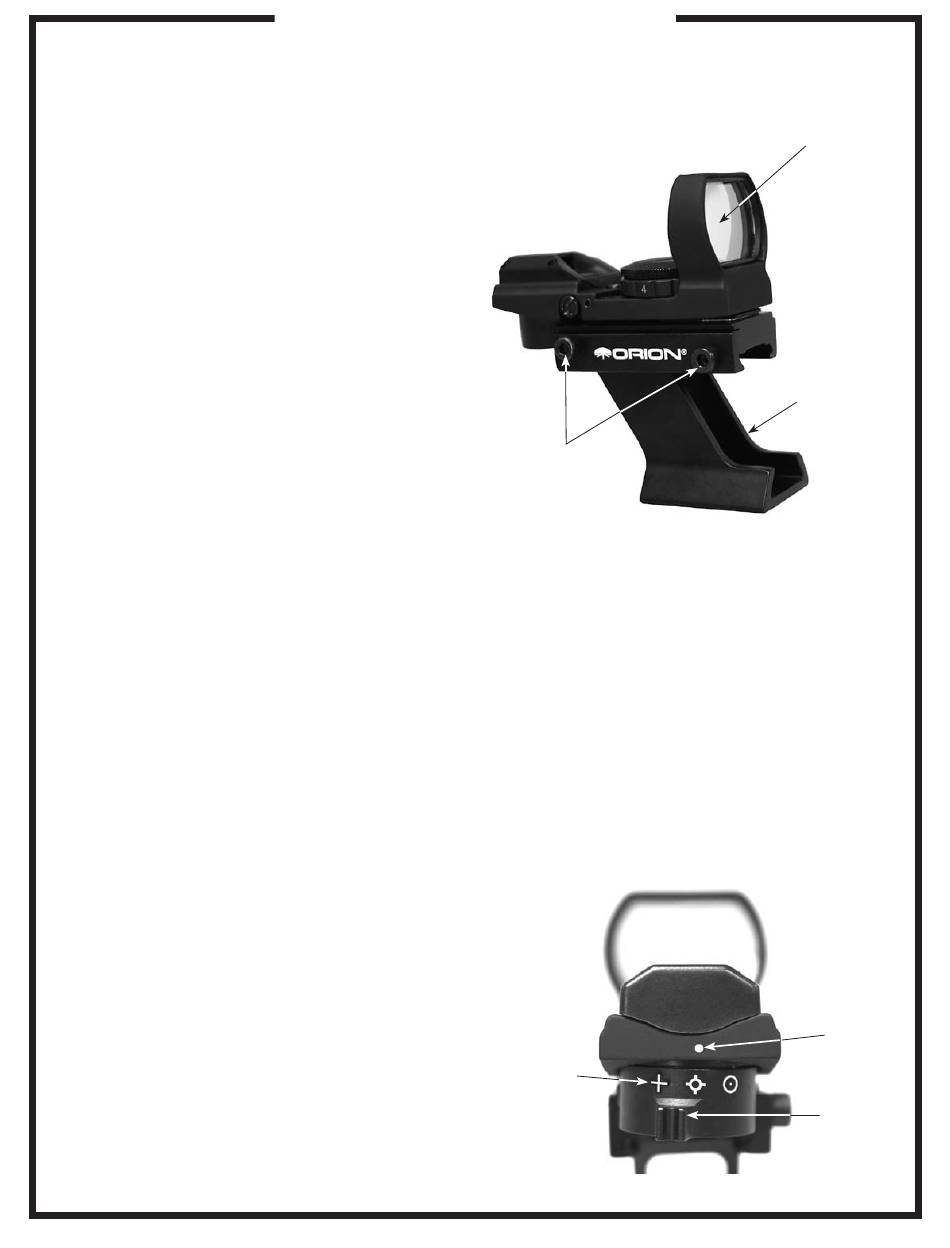

Figure 1.
The EZ Finder Deluxe
space objects with ease. The reticle is emitted by a light-emitting
diode (LED) housed in the rear portion of the sight.
Don't forget to remove the protective rubber lens cover to
expose the viewing window before operating the EZ Finder
Deluxe.
The EZ Finder Deluxe features four different sighting reticles
or patterns to choose from: a small dot, a crosshair, an open
circle, and a large circle with centered dot. Choose a reticle
pattern by adjusting the large switch at the end of the sight
(Figure 2) until the desired pattern is directly below the indica-
tor dot on the rear of the sight body.
Once you have selected a reticle pattern, power on your sight
by rotating the brightness adjustment knob clockwise (Figure
3). The numbers printed along the edge of the brightness
adjustment knob denote the relative brightness of the pro-
jected reticle pattern with 7 being the brightest, 1 being the
Reticle options
Figure 2.
The EZ Finder Deluxe reticle switch
Viewing window
Dovetail bracket
Indicator Dot
Reticle switch
IN 302 Rev. B 02/09
