Orion
®
USB Lithium PowerBank

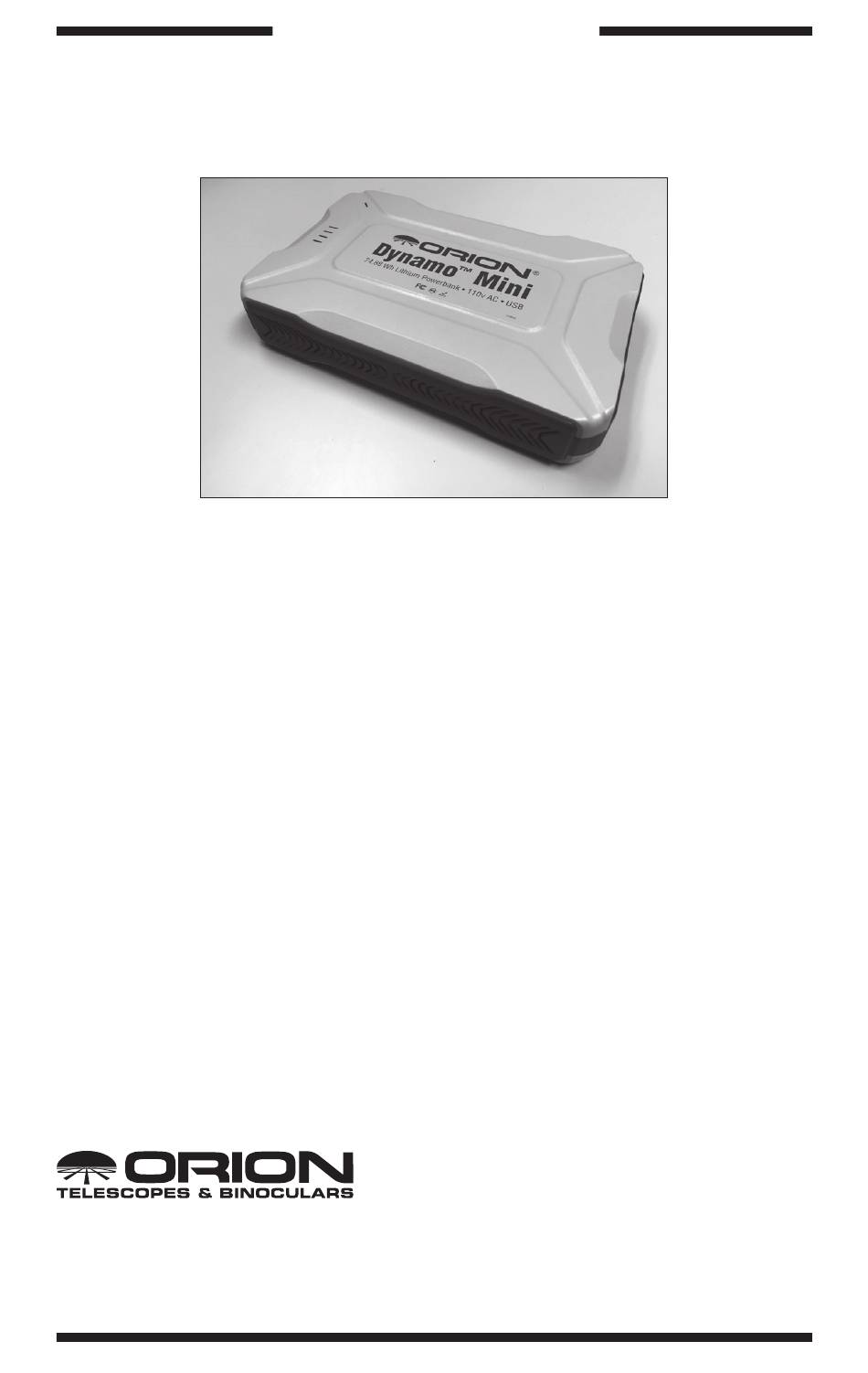

Congratulations on your purchase of an Orion Dynamo™ Mini Lithium PowerBank. The
generous 74.88 Watt-hour battery capacity provides power for any AC powered device,
as well as USB charging power for USB accessories as well as phones and tablets. It
includes two USB outputs (2.4A Max), and an 85 watt (100w max) AC output. All of this
in a battery that weighs only 1.6 lbs, which makes it ideal for campers, hikers, and any-
one looking for an extremely portable power supply! Peel back the two rubber covers
over the top edge and side wall to expose the ports and power button.
1. Operation
Powering USB devices
The Dynamo Mini has two USB ports (
USB devices such as smartphones and tablets, with a max output of 2.4A each. To
use, simply plug the USB device into one of the two USB ports, and the Dynamo will
automatically begin to charge the device (it is not necessary to press the power button
to activate USB charging). Both USB ports can be used simultaneously to charge two
devices.
Powering 110v AC devices
The Dynamo Mini also has a single 85w continuous/100w max 3-prong 110v AC out-
figure 1
put port (
) for powering small electronic devices such as telescopes equipped
with an AC adapter, lamps, televisions and laptop computers. Please note laptops can
draw 65w (or more), so keep in mind that a computer can quickly deplete the 74.88Wh
capacity of the Dynamo Mini. To use, plug in your 110v device to the AC port, then press
and hold the power button (
figure 1
power indicator (
AC port will power down soon after in order to conserve power.
A N E M P L O Y E E - O W N E D C O M P A N Y
Copyright © 2019 Orion Telescopes & Binoculars. All Rights Reserved. No part of this product instruction
or any of its contents may be reproduced, copied, modified or adapted, without the prior written consent
INSTRUCTION MANUAL
Dynamo
™
figure 1
) for approximately 3 seconds until the green AC
) light turns on. If no device is detected on the AC output, the
Corporate Offices: 89 Hangar Way, Watsonville CA 95076 - USA
Toll Free USA & Canada: (800) 447-1001
International: +1(831) 763-7000
Customer Support: support@telescope.com
of Orion Telescopes & Binoculars.
Mini 74.88Wh AC/
2306
#
figure 1
) that can be used to power or charge
IN 612 01/18
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ORION TELESCOPES & BINOCULARS Dynamo Mini
Summary of Contents for ORION TELESCOPES & BINOCULARS Dynamo Mini
- Page 1 AC adapter, lamps, televisions and laptop computers. Please note laptops can draw 65w (or more), so keep in mind that a computer can quickly deplete the 74.88Wh capacity of the Dynamo Mini. To use, plug in your 110v device to the AC port, then press figure 1...
- Page 2 When all four lights are solid, the unit is fully charged. The Micro USB port is the only power charging input on the Dynamo Mini. DO NOT try to charge the device by connecting a wall outlet to the other two larger USB ports – they are for output only.
- Page 3 The Dynamo Mini has a useful lifespan of at least 300 full charge cycles, and proba- bly more with proper handling. At some point, as with all rechargeable batteries, the lithium ion cells inside will no longer be able to hold a full charge, and the capacity will decrease.
- Page 4 One-Year Limited Warranty This Orion product is warranted against defects in materials or workmanship for a period of one year from the date of purchase. This warranty is for the benefit of the original retail purchaser only. During this warranty period Orion Telescopes & Binoculars will repair or replace, at Orion’s option, any warranted instrument that proves to be defective, provided it is returned postage paid.
