System Priming

Note:
This priming procedure should be performed
with the plotter turned on and initialized, and the head
positioned over the parking station.
1. Select the priming tool from the accessories kit. This tool
consists of a 100cc syringe, a short section of ink outlet
tubing, and a male side of the CPC connector. It will be
used in the next step.
1

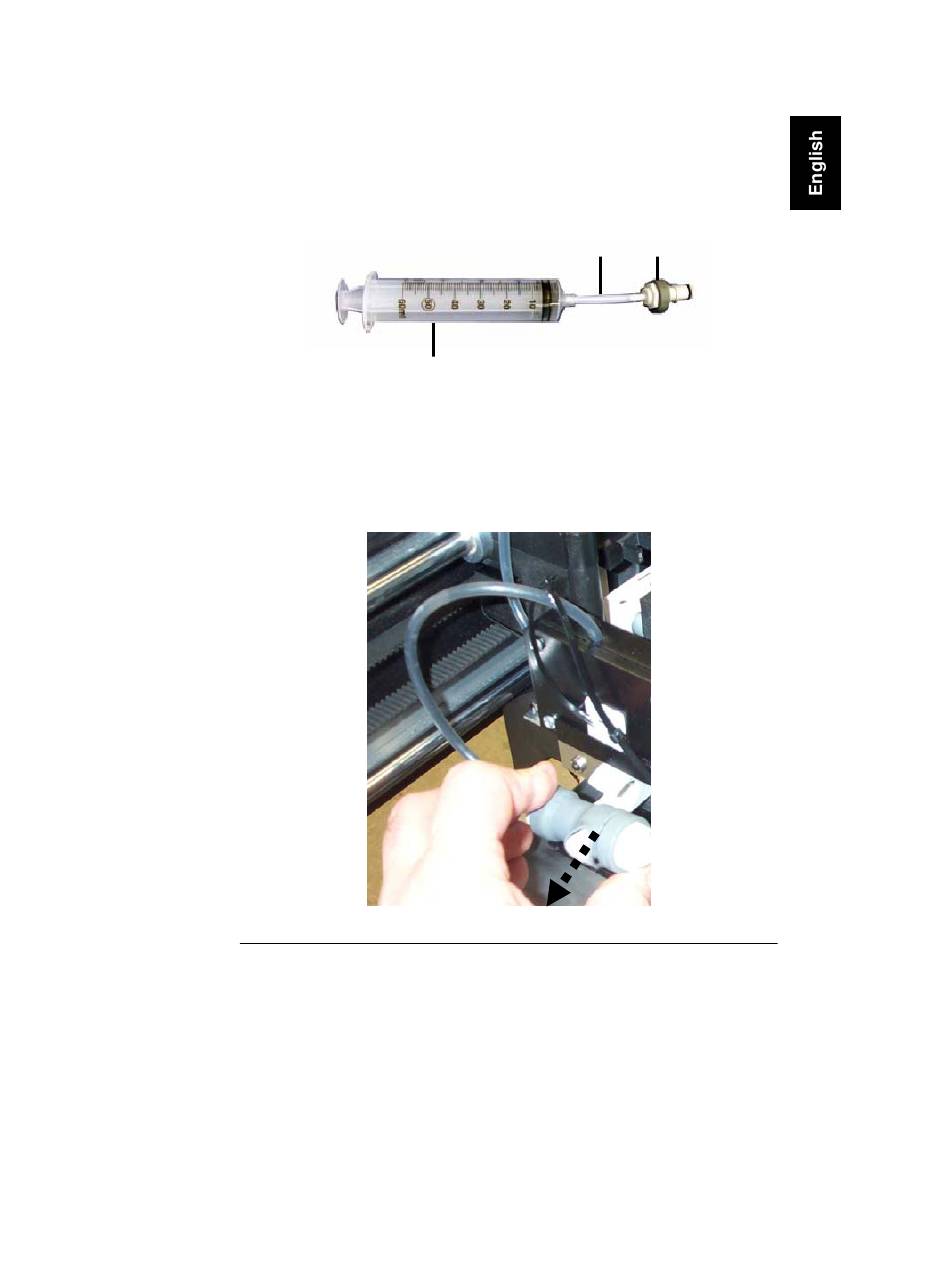

Figure 16. Priming Tool

1-Syringe, 2-Outlet Tubing, 3-Male Side of CPC Connector
2. Disengage the CPC connector from the mounting clip on
the side of the pressure regulator.

Figure 17. Disengage CPC Connector From Mounting Clip

2
Key to Figure
27
3
