c) Remove the electrical box rear panel (3) to
access the power switch (4).
d) Set the power switch (4) to the 115 volt
position.
e) Install the electrical box rear panel (3) and
tighten the screws (2).
f) Install the top plotter cover (1).
g) Install a yellow 110 volt power rating sticker
over the yellow 220 volt sticker on the rear.
h) Use a 'permanent' marker to write voltage used
on the Voltage Installed portion of the serial
number plate (Figure 9).

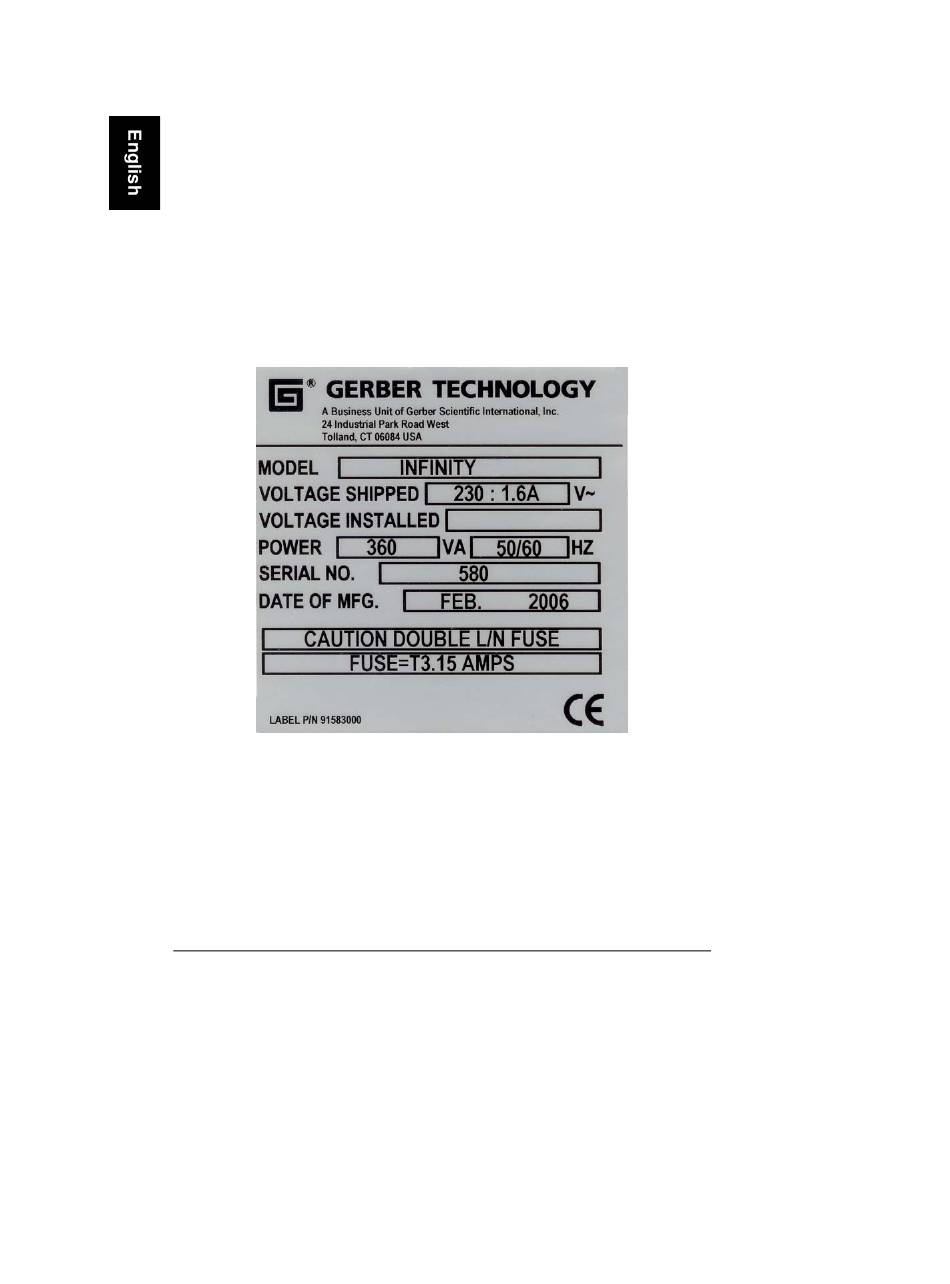

Figure 9. Infinity Serial Number Plate (Typical)

18
