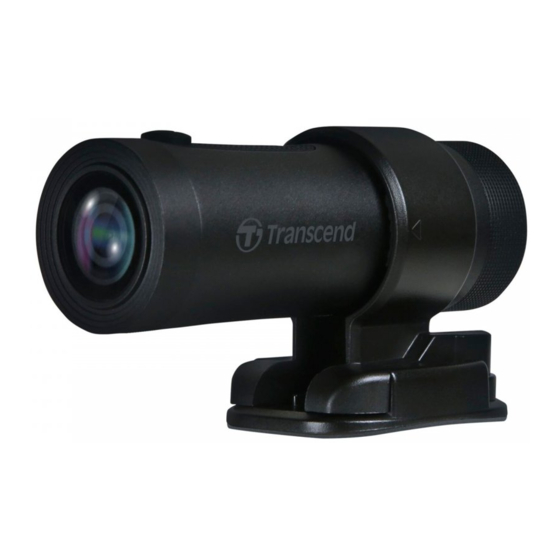

Transcend DrivePro 20 User Manual
Motorcycle dashcam
Hide thumbs
Also See for DrivePro 20:
- User manual (29 pages) ,
- User manual (29 pages) ,
- User manual (29 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Related Manuals for Transcend DrivePro 20
Summary of Contents for Transcend DrivePro 20

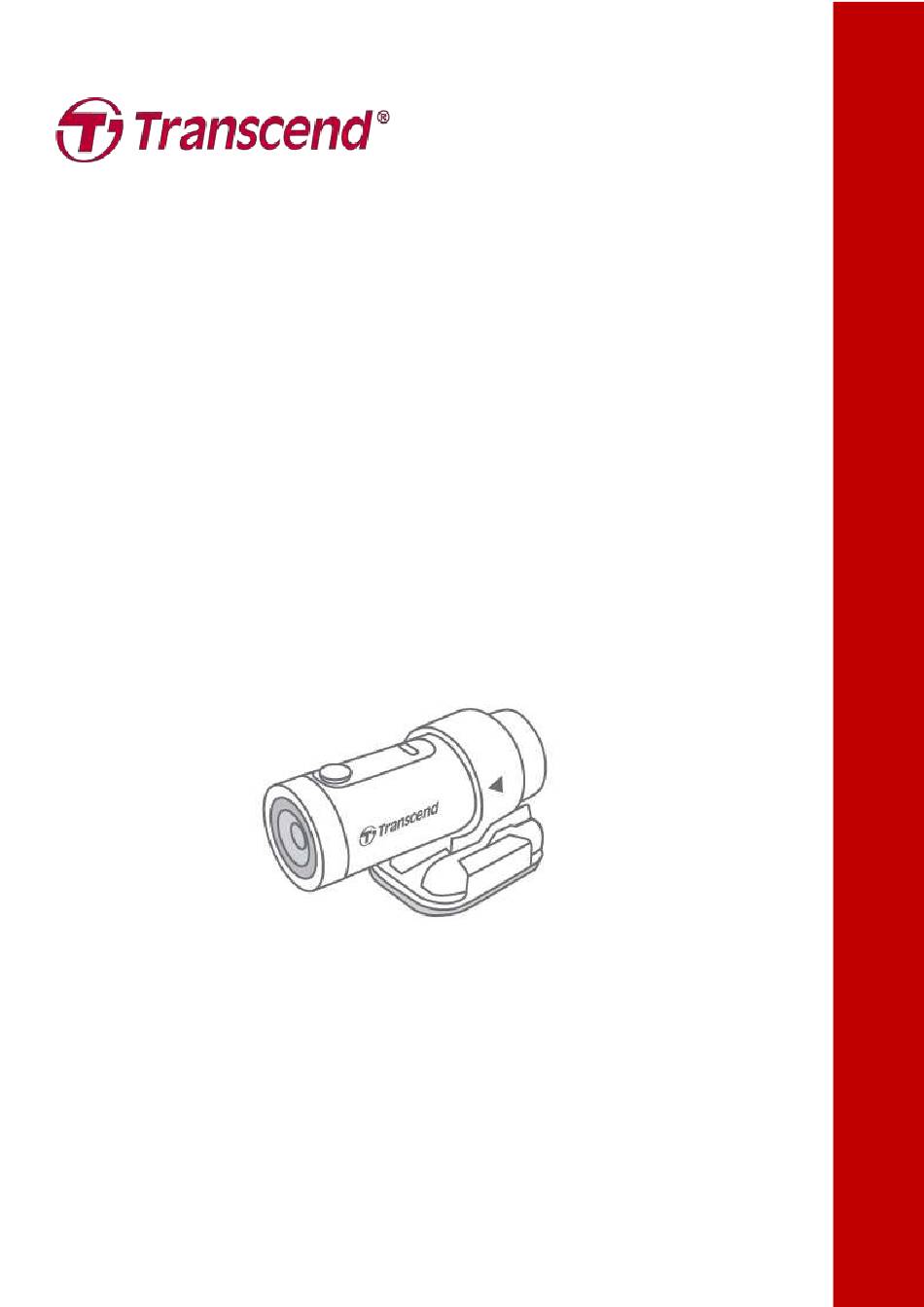

- Page 1 User’s Manual Motorcycle Dashcam ™ DrivePro 2021/07...
-
Page 2: Table Of Contents
DrivePro 20 Table of Contents 1. Package Contents ..................... 3 2. System Requirements ..................3 3. Getting Started ....................4 3-1 Overview ............................4 3-2 Inserting a microSD Memory Card .................... 4 3-3 Mounting the DrivePro ........................5 3-4 Charging ............................5 3-6 Operation ............................ -
Page 3: Package Contents
DrivePro 20 1. Package Contents The DrivePro 20 dashcam package includes the following items: DrivePro 20 32GB microSD card Camera holder Quick Start Guide Adhesive mounting base micro USB to USB Type-A power cable 2. -
Page 4: Getting Started
Always format new memory cards in the DrivePro before using them for the first time. Formatting will erase all data on the memory card. WARNING Do not remove the memory card during a shutdown to avoid damages to the memory card and loss of recorded videos. DrivePro 20 can support FAT32 and exFAT file format, but not NTFS. -
Page 5: Mounting The Drivepro
DrivePro 20 The following table shows approximate recording time according to capacity and resolution (for reference only): Capacity 32GB 64GB 128GB 256GB Frame Rate Full HD 1080P 60 fps 2.5 hr 5 hr 10.5 hr 22 hr Full HD 1080P 30 fps 3.5 hr... -
Page 6: Operation
DrivePro 20 3-6 Operation Status Operation Vibration Turn on/off dashcam Long press Power Button for 3 s Vibrate 0.5 s Turn on/off Wi-Fi Press Power Button once Vibrate 0.2 s Factory Reset Connect dashcam to a USB port Vibrate 2 s... -
Page 7: Recording Videos
DrivePro 20 4. Recording Videos 4-1 Normal Recording By default, one video file is saved for every 1 minute of recording. To adjust the recording length, please refer to the Settings section in this manual. When G-sensor detects the DrivePro is idle for 300 seconds, power saving mode will be activated. -
Page 8: Using The Drivepro App & Drivepro Toolbox
DrivePro 20 5. Using the DrivePro App & DrivePro Toolbox 5-1 Connecting to DrivePro App After downloading and installing the DrivePro App from the Google Play or App Store, Tap Settings > Wi-Fi from your mobile device. Select the Wi-Fi network with DP 20 in the SSID. (password is 12345678) Tap the DrivePro icon on the home screen of your mobile device to use the App. -
Page 9: Drivepro Toolbox
WARNING NEVER remove the power cord or the microSD memory card while the firmware is being upgraded. If the DrivePro cannot be turned on due to firmware upgrade failure, please contact Transcend customer service for technical support. 5-3 DrivePro Toolbox Download the installation files from https://www.transcend-info.com/downloads... - Page 10 DrivePro 20 Take the microSD memory card out of the DrivePro, and insert it into a compatible card reader to transfer files to a computer. Option 2: 1. Insert the microSD memory card into the DrivePro. 2. Plug the small end of a USB cable into the USB port located on the right-hand side of the DrivePro.
-
Page 11: Troubleshooting
DrivePro for repair. If you cannot find an ideal solution to your question below, please consult your dealer, service center, or local Transcend branch office for further help. You can also visit the Transcend website for FAQ and Technical Support services (https://www.transcend-info.com/Support). -
Page 12: Safety Cautions
4. IP68 DrivePro 20 is backed by an international standard rating of IP68, able to withstand dust, dirt, splash or spray. Its protection against intrusions of solid objects/liquid does not mean invincible. The protection level may decrease as the device is used. Damages caused by a liquid are not covered in the warranty service. -
Page 13: Specifications
CE, FCC, BSMI, KC, NCC, MIC, EAC, RCM Certification 2 years Warranty In addition to the bundled microSD card, we recommend Transcend’s High Endurance microSD cards or MLC-based memory cards to ensure the best recording performance. 32GB-64GB High Endurance microSDHC card Note (TS32GUSDHC10V/TS64GUSDXC10V) ... -
Page 14: Legal Compliance
9. Legal Compliance EU Compliance Statement Transcend Information hereby declares that all CE marked Transcend products incorporating radio equipment functionality are in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.transcend-info.com/eu_compliance... -
Page 15: Two-Year Limited Warranty
9-4 Two-Year Limited Warranty Please visit www.transcend-info.com/warranty to view the Transcend Warranty Policy. By using the product, you agree that you accept the terms of the Transcend Warranty Policy, which may be amended from time to time. 9-5 GNU General Public License (GPL) Disclosure Firmware incorporated into this product and/or software used for this product may include third party copyrighted software licensed under the GPL (hereinafter referred to as “GPL Software”). - Page 16 3. Intellectual Property Rights. As between Transcend and Customer, the copyright and all other intellectual property rights in the Licensed Software are the property of Transcend or its supplier(s) or licensor(s). Any rights not expressly granted in this License are reserved to Transcend.
-
Page 17: Eurasian Conformity Mark (Eac)
STRICT LIABILITY OR OTHERWISE, EVEN IF TRANSCEND HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. 8. Limitation of Liability. IN ANY CASE, TRANSCEND 'S LIABILITY ARISING OUT OF OR IN CONNECTION WITH THIS AGREEMENT WILL BE LIMITED TO THE TOTAL AMOUNT ACTUALLY AND ORIGINALLY PAID AT RETAIL BY CUSTOMER FOR THE PRODUCT.
