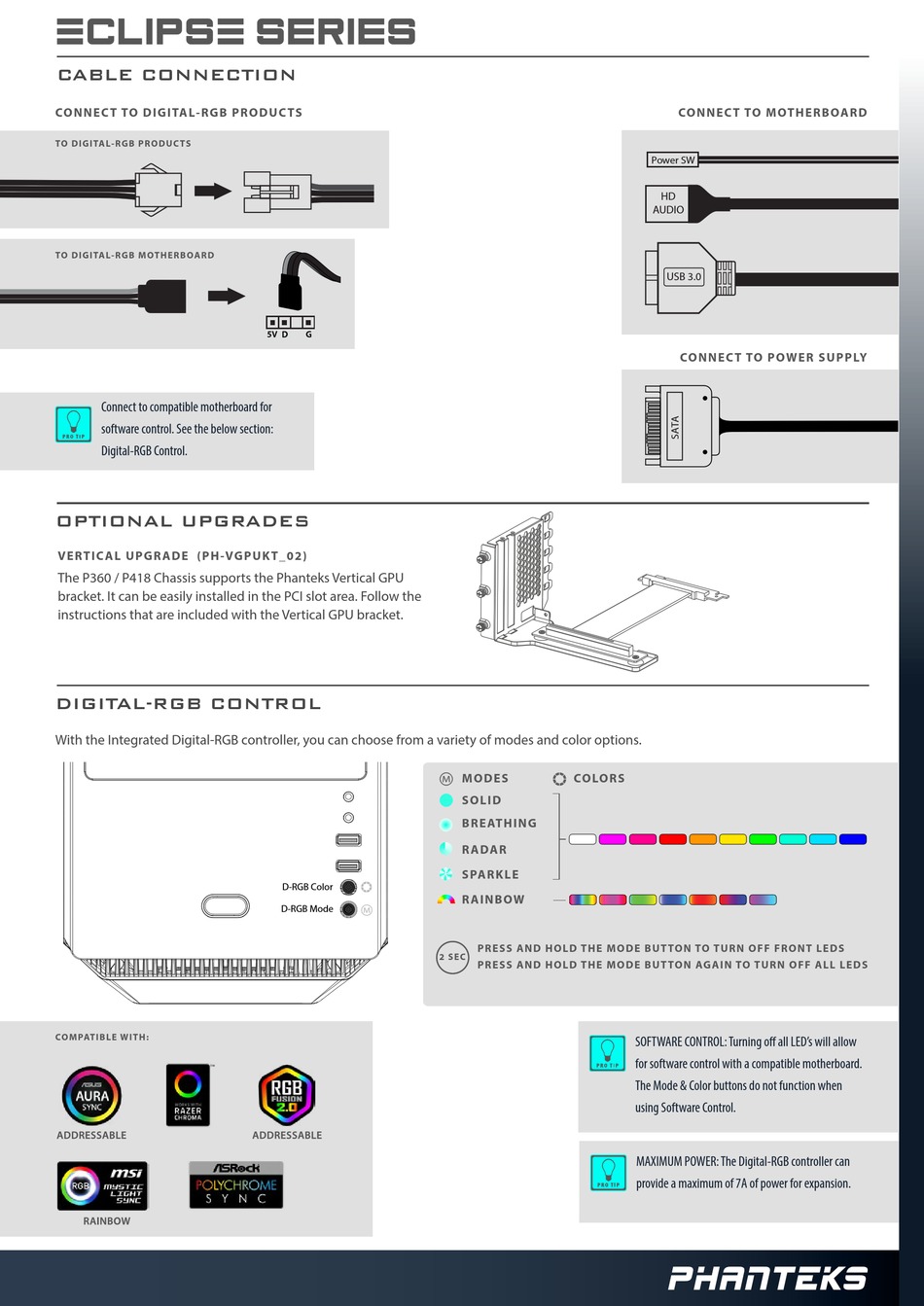

ECLIPSE series
CABLE CONNECTION
CO NNE C T TO DI G ITA L- RG B P RO D U C TS
TO D I GI TA L-RG B P RO DU C TS
TO D I GI TA L-RG B M OT HE RB OA RD
Connect to compatible motherboard for
software control. See the below section:
Digital-RGB Control.
OPTIONAL UPGRADES
VE R TI C AL U PG R A D E ( P H -VG P U K T _ 0 2 )
The P360 / P418 Chassis supports the Phanteks Vertical GPU
bracket. It can be easily installed in the PCI slot area. Follow the
instructions that are included with the Vertical GPU bracket.
DIGITAL-RGB CONTROL
With the Integrated Digital-RGB controller, you can choose from a variety of modes and color options.
CO M PATIB LE W I T H:
D-RGB Color
D-RGB Mode
2 SEC
MO D E S CO LO R S
S O L ID
B RE AT H I NG
R A DAR
S PA RK LE
R A IN B OW
PRES S AN D H OLD T H E MOD E B UT TON TO T URN OF F F RON T L ED S
PRES S AN D H OLD T H E MOD E B UT TON AGAI N TO T URN O F F A L L L EDS
SOFTWARE CONTROL: Turning off all LED's will allow
for software control with a compatible motherboard.
The Mode & Color buttons do not function when
using Software Control.
CO N N EC T TO M OT H E RB OA R D
Power SW
HD
AUDIO
USB 3.0
CO N N E C T TO P OW ER SUP P LY
MAXIMUM POWER: The Digital-RGB controller can
provide a maximum of 7A of power for expansion.
