ECLIPSE series

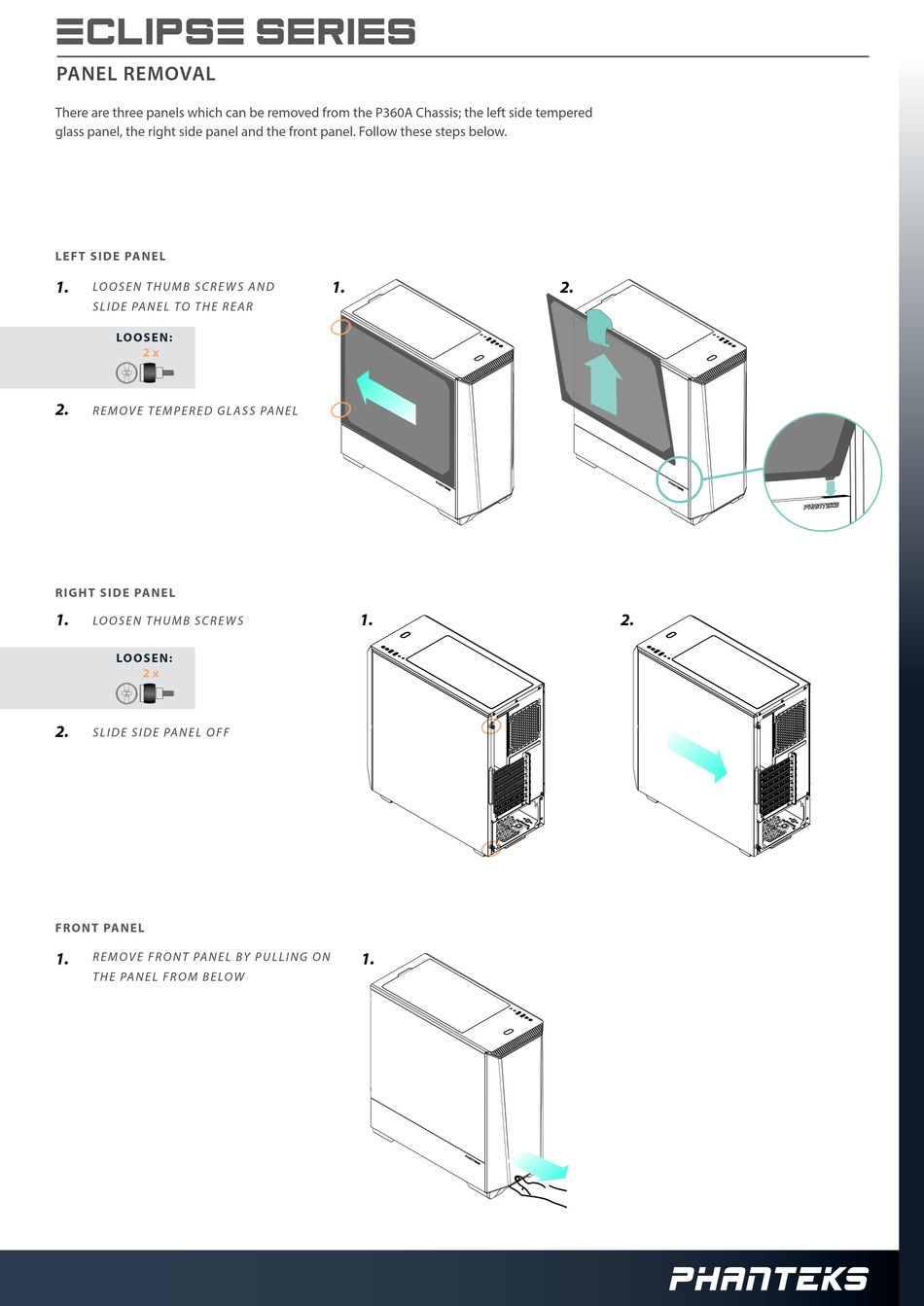

PANEL REMOVAL
There are three panels which can be removed from the P360A Chassis; the left side tempered
glass panel, the right side panel and the front panel. Follow these steps below.
LE FT S I DE PAN E L
1.
LO O S E N T H U M B S C R E W S A N D
S L I D E PA N E L T O T H E R E A R
LO O S E N :
2 x
2.
R E M O V E T E M P E R E D G L A S S PA N E L
R IG HT S I DE PA NE L
1.
LO O S E N T H U M B S C R E W S
LO O S E N :
2 x
2.
S L I D E S I D E PA N E L O F F
FRO NT PA N E L
1.
R E M O V E F R O N T PA N E L B Y P U L L I N G O N
T H E PA N E L F R O M B E LO W
1.
1.
1.
2.
2.
