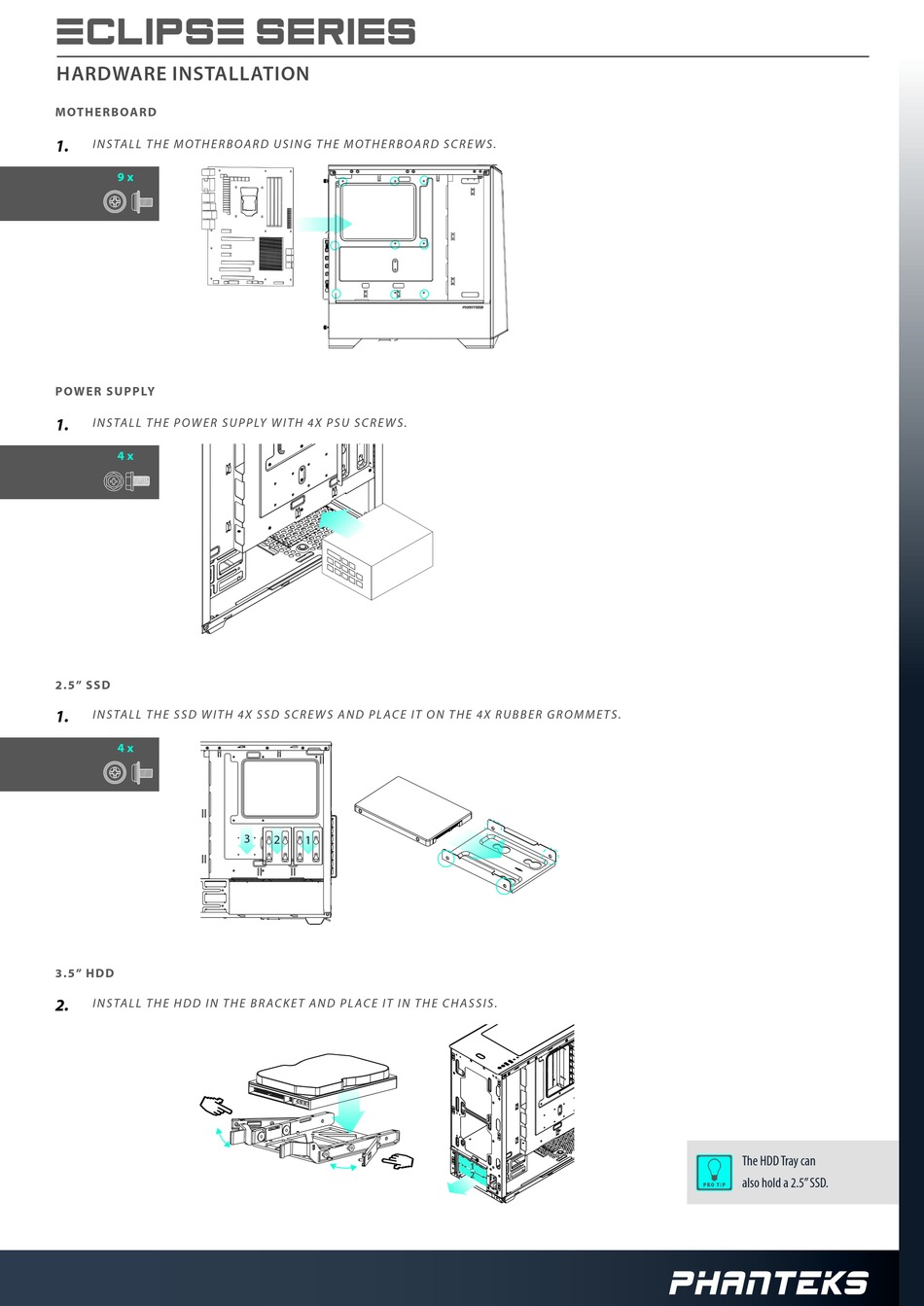

ECLIPSE series
HARDWARE INSTALLATION
M OT HER B OAR D
1.
I N S TA L L T H E M OT H E R B O A R D U S I N G T H E M OT H E R B O A R D S C R E W S .
9 x
P OW E R S U PP LY
1.
I N S TA L L T H E P O W E R S U P P LY W I T H 4 X P S U S C R E W S .
4 x
2 .5" S SD
1.
I N S TA L L T H E S S D W I T H 4 X S S D S C R E W S A N D P L AC E I T O N T H E 4 X R U B B E R G R O M M E T S .
4 x
3 .5" H DD
2.
I N S TA L L T H E H D D I N T H E B R AC K E T A N D P L AC E I T I N T H E C H A S S I S .
3 2
1
1
2
The HDD Tray can
also hold a 2.5" SSD.
