netvox RB11E User Manual

Wireless occupancy & temperature & light sensor
Hide thumbs Also See for RB11E:
Table of Contents

Advertisement

Quick Links

Download this manual
Model：RB11E

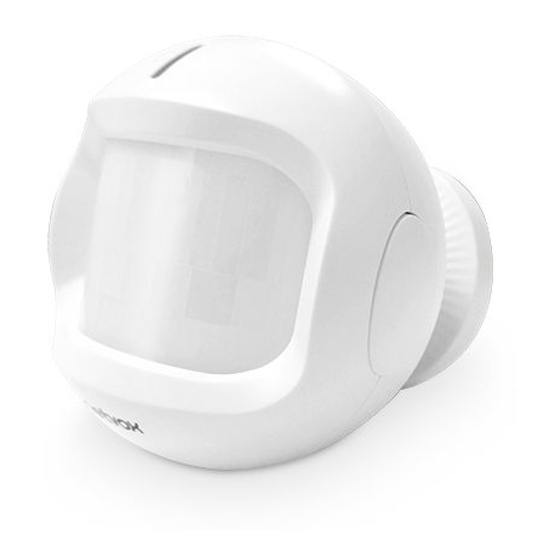

Wireless Occupancy & Temperature & Light Sensor
Wireless
Occupancy & Temperature & Light Sensor
User Manual
Copyright© Netvox Technology Co., Ltd.
This document contains proprietary technical information which is the property of NETVOX Technology. It shall be maintained
in strict confidence and shall not be disclosed to other parties, in whole or in part, without written permission of NETVOX
Technology. The specifications are subject to change without prior notice.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RB11E and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for netvox RB11E

Summary of Contents for netvox RB11E

  • Page 1 This document contains proprietary technical information which is the property of NETVOX Technology. It shall be maintained in strict confidence and shall not be disclosed to other parties, in whole or in part, without written permission of NETVOX Technology. The specifications are subject to change without prior notice.

  • Page 2: Table Of Contents

    Table of Content 1. Introduction ....................................... 2 2. Appearance ......................................3 3. Main Features ....................................4 4. Set up Instruction ....................................5 5. Data Report ....................................... 6 6. IR Delay Configuration ..................................9 7. Installation ...................................... 11 7.1 Tips for installing the double-sided stickers ........................... 11 7.2 Tips for installing the steel nails .............................

  • Page 3: Introduction

    RB11E combines infrared detection, temperature, and illumination sensors. During infrared real-time detection, if a people or other organism which is active in the monitoring area, RB11E will detect the infrared signal and report status information to the gateway. Users can execute different instructions or scenes according to the different status configuration.

  • Page 4: Appearance

    2. Appearance Indicator Function Key Function Key Infrared Sensor Infrared Sensitivity Adjustment Knob Snap-fit joint...

  • Page 5: Main Features

    ⚫ Applicable to third-party platforms: Actility/ThingPark, TTN, MyDevices/Cayenne Improved power management for longer battery life Battery Life: ⁻ Please refer to web: http://www.netvox.com.tw/electric/electric_calc.html ⁻ At this website, users can find battery life time for variety models at different configurations. 1. Actual range may vary depending on environment.

  • Page 6: Set Up Instruction

    4. Set up Instruction On/Off Insert batteries. Operation method: Press and hold the snap-fit joint to open the upper and lower lids along the gap Power on between the upper and lower covers. After opening the case, insert two pcs ER14505 3.6V AA into the battery compartment, and close the upper and lower covers.

  • Page 7: Data Report

    IRDisableTime:0x001E (30s) , IRDetectionTime must ≧ IRDisableTime IRDectionTime:0x012C(300s) Occupy status detection: After the RB11E device detects the infrared, the red LED blinks once, and immediately reports an uplink packet. Un-occupy = 0 Occupy = 1 Disassembled Alarm: When the RB11E case is removed, the device will report an alarm...
  • Page 8 0x84 TImeRsp (2bytes Unit:s) (2bytes Unit:s) (5Bytes,Fixed 0x00) (1) Configure RB11E report parameters MinTime = 1min, MaxTime = 1min, BatteryChange = 0.1v, TemperatureChange = 1°C, illuminance = 100 Lux Downlink: 0103003C003C0100640064 Devices return: 8103000000000000000000 (the configuration is successful) 8103010000000000000000 (the configuration is failed)
  • Page 9 (3) Configure RB11E IR Delay parameters IRDisableTime= 30s、IRDectionTime= 30s (IRDectionTime >= IRDisableTime) Downlink: 0303001E001E0000000000 Devices return: 8403000000000000000000 (the configuration is successful) 8403010000000000000000 (the configuration is failed) (4) Read RB11E IR Delay parameters Downlink: 0403000000000000000000 Devices return: 8403001E001E0000000000 (current device configuration parameters) Example for MinTime/MaxTime logic: Example#1 based on MinTime = 1 Hour, MaxTime= 1 Hour, Reportable Change i.e.

  • Page 10: Ir Delay Configuration

    6. IR Delay Configuration If someone or animal is moving in the monitoring area, RB11E will detect the infrared signal and the red indicator will flash once. In the meantime, it reports occupied status (at the same time, other sensor status value is also reported).
  • Page 11 ➢ If living creature is detected during the last 30% of IRDisableTime, the IR delay time will be extended for another IRDetectionTime till no infrared signal is detected. ➢ If no living creature is detected during IRDetectionTime, RB11E will report “unoccupied” along with other sensor status, such as temperature, illuminance, etc.

  • Page 12: Installation

    7. Installation 7.1 Tips for installing the double-sided stickers 1. Clean the surface of the objects you plan to use the sticker with. 2. Tear off one side of the sticker, place it to the bottom of the product as shown on the picture, and press it. 3.

  • Page 13: Installation Battery Steps

    Note: The steel nails are only for brick walls, cement walls, woods, etc. They are not for concrete, as concrete is too hard for the nails. 7.3 Installation battery steps The device must use 2 sections of ER14505 battery (3.6v/section) Step1 Press and hold the on the device, and separate the upper lid and lower cover.

  • Page 14: Installation Requirements

    7.4 Installation requirements 1. Indoor use only, please check the installation places.

  • Page 15: Detection Coverage

    The sensitivity of the PIR sensor has a lot to do with the motion direction of the human body. The PIR sensor is more sensitive to vertical motions, while it is less sensitive to horizontal motions. Thus, it is important to choose the proper location for installation and higher sensitivity.

  • Page 16: Information About Battery Passivation

    8. Information about Battery Passivation Many of Netvox devices are powered by 3.6V ER14505 Li-SOCl2 (lithium-thionyl chloride) batteries that offer many advantages including low self-discharge rate and high energy density. However, primary lithium batteries like Li-SOCl2 batteries will form a passivation layer as a reaction between the lithium anode and thionyl chloride if they are in storage for a long time or if the storage temperature is too high.

  • Page 17: Important Maintenance Instruction

    9. Important Maintenance Instruction Kindly pay attention to the following in order to achieve the best maintenance of the product: • Keep the device dry. Rain, moisture, or any liquid, might contain minerals and thus corrode electronic circuits. If the device gets wet, please dry it completely. •...
