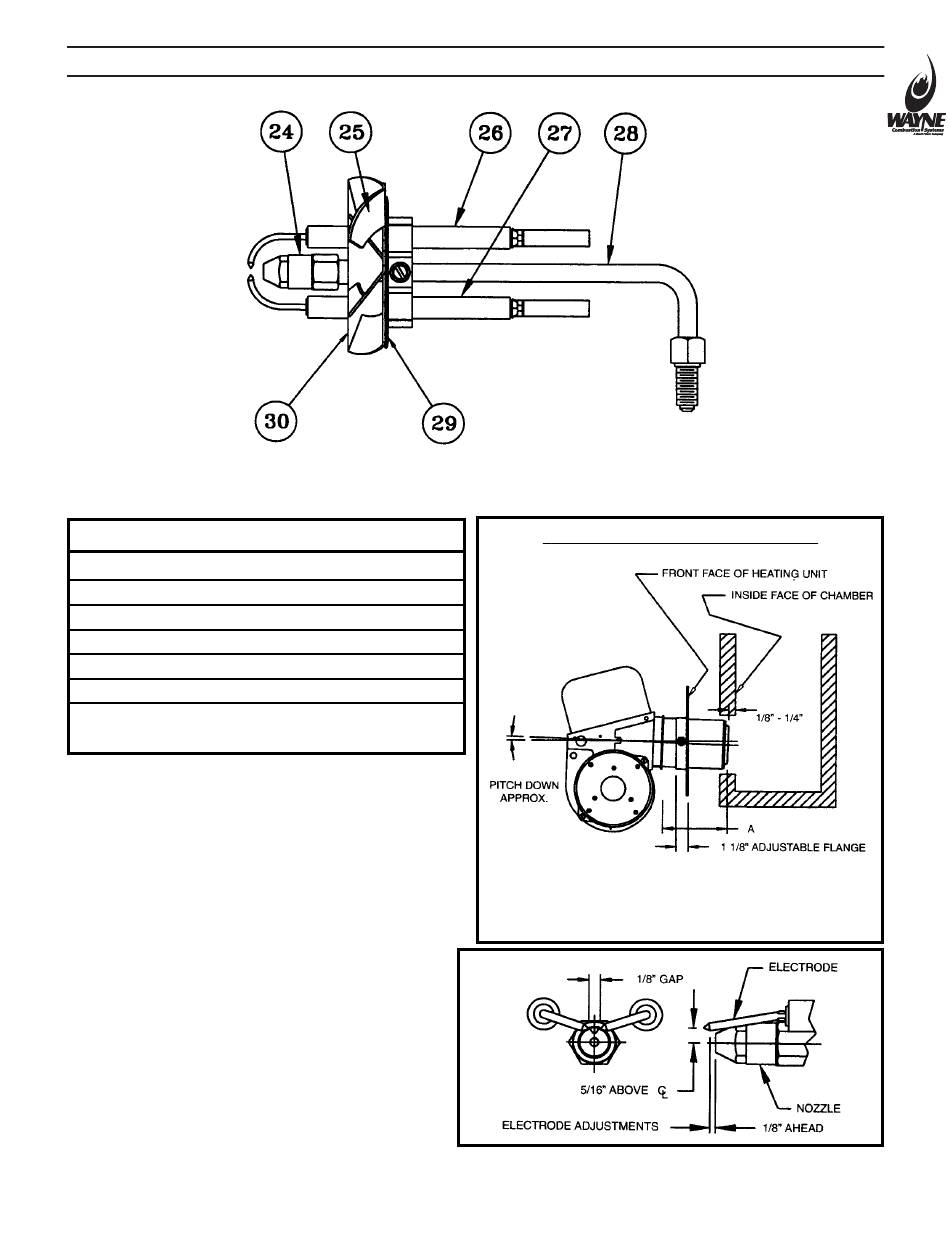

AIR TUBE & GUN ASSEMBLY DETAILS MODEL MSR-DC
NO. DESCRIPTION
24 ADAPTOR, NOZZLE SUPPORT
25 ELECTRODE SUPPORT ASM
26 ELECTRODE (RH)
27 ELECTRODE (LH)
28 OIL PIPE/FITTING
29 DISC/BAFFLE PLATE
30 CAST STABILIZER
STAMPED STABILIZER
NOTE: WHEN ORDERING STATE BURNER MODEL MSR, SPEC #, PART DESCRIPTION, AIR TUBE
COMBINATION, WHAT USABLE AIR TUBE LENGTH, (DIMENSION A), AND FIRING RATE.
PART NO.
TO DETERMINE THE AIR TUBE LENGTH
21913-001
SEE NOTE
SEE NOTE
SEE NOTE
SEE NOTE
SEE NOTE
21408-SER
100704-001
2˚
THE AIR TUBE LENGTH (DIM A) IS THE DISTANCE FROM THE FRONT
OF AIR TUBE RETAINER FLANGE TO FACE OF AIR CONE.
NOTE ADJUSTABLE FLANGE WIDTH.
13
