801 Glasgow Ave.
Fort Wayne, IN 46803
ELECTRIC SHOCK HAZARD
HIGH VOLTAGES ARE PRESENT IN THIS
EQUIPMENT. FOLLOW THESE RULES TO
AVOID ELECTRIC SHOCK.
L Use only a properly grounded circuit. A ground
fault interrupter is recommended.
L Do not spray water directly on burner.
L Turn off power before servicing.
L Read the owner's manual before using.
SPECIFICATIONS
FUELS
Use No. 1 or No. 2 heating oil (ASTM D-396) only.
* NEVER burn garbage or refuse in the heating unit.
* NEVER try to ignite oil by tossing burning paper or other material into the heating unit
* NEVER burn waste or crankcase oil in the heating unit.
FIRING CAPACITIES - MODEL HS
0.50 TO 3.00 GALLONS PER HOUR
- See page 6.
70,000 TO 420,000 BTU/HR INPUT
FUEL UNIT
Suntec or Danfoss
ELECTRICAL
Power Supply.........................115V / 60HZ / 1 PH
Motor......................................3450 RPM, N.E.M.A. Flange, Manual Reset Overload Protection
Ignition ...................................10,000V / 23MA secondary, Continuous Duty-Shielded Interrupted
INSTALLATION OF THE BURNER MUST BE DONE BY A QUALIFIED INSTALLER IN ACCORDANCE WITH REGULATIONS OF THE NATION-
AL FIRE PROTECTION STANDARD FOR OIL-BURNING EQUIPMENT, NFPA NO. 31, AND IN COMPLETE ACCORDANCE WITH ALL LOCAL
CODES AND AUTHORITIES HAVING JURISDICTION.
A QUALIFIED INSTALLER IS THE PERSON WHO IS RESPONSIBLE FOR THE INSTALLATION AND ADJUSTMENT OF THE EQUIPMENT
AND WHO IS LICENSED TO INSTALL OIL-BURNING EQUIPMENT IN ACCORDANCE WITH ALL CODES AND ORDINANCES.
THESE INSTRUCTIONS SHOULD BE AFFIXED TO THE BURNER

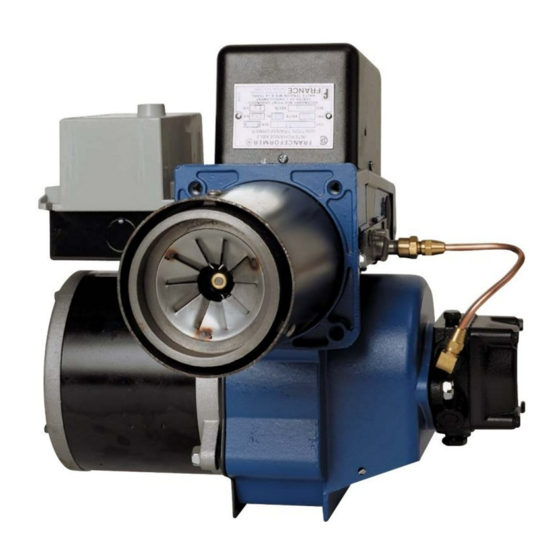

MODEL
HS OIL
BURNERS
Publication Date 8/01/01
Manual 21663
INSTALLATION OF BURNER
OR ADJACENT TO THE HEATING APPLIANCE.
Revision 12
U.S. Patent No. 4,388,064
OVERHEATING HAZARD
SHOULD OVERHEATING OCCUR:
L Shut off the manual oil valve to the appliance.
L Do not shut off the control switch to the pump or blower.
BURNER, AS IT IS MORE COMBUSTIBLE AND COULD
RESULT IN A SERIOUS EXPLOSION.
DO NOT STORE OR USE GASOLINE OR OTHER
FLAMMABLE VAPORS AND LIQUIDS IN THE
VICINITY OF THIS OR ANY OTHER APPLIANCE.
DIMENSIONS (STANDARD)
HEIGHT ......................................................12 1/2"
WIDTH........................................................12 7/8"
DEPTH .........................................................7 3/4"
CENTER LINE
OF TUBE TO FLOOR.........................................7"
MOUNTING
Rigid Flange, Adjustable Flange, or Base Mount
NEVER ATTEMPT TO USE
GASOLINE AS A FUEL FOR THIS
FOR YOUR SAFETY
