MODET
EG-I
WAYI\IE HOME EQUIPMEITT
oft
a Scoflfttef cornparry
BIIRNER
801 Glasgow Avenue
Fort Wayne, Indiana 46803
Manual 21255-ml
PUBLICATION DATE 06-20-88
SPECITICATIONS
FIRING CAPACITIES - Model EG-l
.50 to 2.75 GALLONS PER HOUR
70,000 to 350,000 BTU/HR INPUT
FUELS*
.-,
Use No. I or No. 2 Heating Oil (ASTM D-396) only.
t
*Never attempt.to use gasoline as a fuel for your burner, as it is more combustible and could result in a
senous exploslon.
ELECTRICAL
P ower Suppl y
..... 1 l5 V/ 6 0 H2 / lPH
Motor
3450 RPM N.E.M.A. Flange, Manual Reset Overload Protection
Ignition
...,. 10,000V/23MASecondary,
ContinuousDuty-Shielded,
Interrupted
Duty-Shielded TLansformetr, or Solid-State Ignition System.
50 HERTZ BURNERS AVAILABLE ON SPECIAL ORDER
FUEL UNIT
Sundstrand or Webster
DIMENSIONS (Standard)
Height
ll%'
width
t3r/r,
Depth
6%'
MOUNTING
Rigid flange, Adjustable flanqe or Base mount.
TO THE HOMEOWNER
Since 1928, Wayne has supplied the Homeowners of the world with oil burners. You are obtaining quality and
design unsurpassed with the engineering and product development. It will provide you with many years of
efficient, trouble free operation, if properly installed and serviced. Please read this manual carefully.
Wayne warrants its burners specifically to those who have purchased it for resale, includingryor"rr dealer. If
in any case you have a problem with your burner, or its installation, you should contact your dealer for
assistance.
Printed in U.S.A.
•
WAYNE HOME EQUIPMENT
[aScoCl~com~
801 Glasgow Avenue
Fort Wayne, Indiana 46803
MODEL

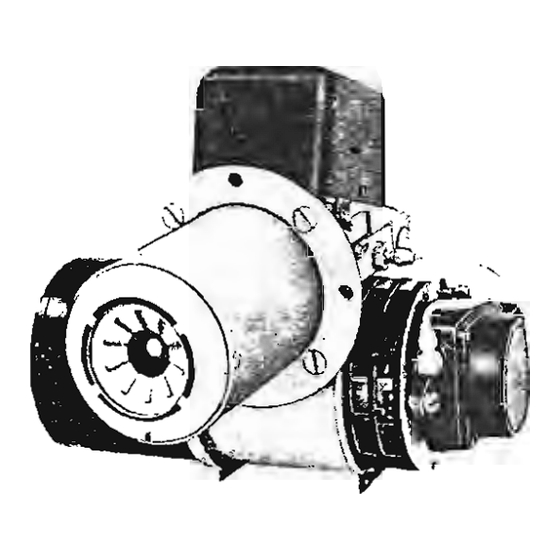

EG-I
OIL
BURNER
Manual 21755-001
PUBLICATION DATE 06-20-88
Revision 04
•
•
SPECIFICATIONS
FIRING CAPACITIES - Model EG-I
.50 to 2.75 GALLONS PER HOUR
70,000 to 350,000 BTUIHR INPUT
FUELS*
Use No.1 or NO.2 Heating Oil (ASTM D-396) only.
*Never attempt to use gasoline as a fuel for your burner, as it is more combustible and could result in a
serious explosion.
ELECTRICAl.
Power Supply
Il5V 160HZI IPH
Motor
3450 RPM N.E.M.A. Flange, Manual Reset Overload Protection
Ignition
,
,
1O,000V123MA Secondary, Continuous Duty-Shielded, Interrupted
Duty-Shielded Transformer, or Solid-State Ignition System.
50 HERTZ BURNERS AVAILABLE ON SPECIAL ORDER
FUEL UNIT
Sundstrand or Webster
DIMENSIONS (Standard)
Height ,
, . , , ,
, .. , . , . . . .. 11 Ye "
Width
,."
,..... 13Ye"
Depth
, . ..
6Ye"
MOUNTING
Rigid flange, Adjustable flange or Base mount.
TO THE HOMEOWNER
Since 1928, Wayne has supplied the Homeowners of the world with oil burners. You are obtaining quality and
design unsurpassed with the engineering and product development. It will provide you with many years of
efficient, trouble free operation, if properly installed and serviced. Please read this manual carefully.
Wayne warrants its burners specifically to those who have purchased it for resale, including your dealer.
If
in any case you have a problem with your burner, or its installation, you should contact your dealer for
assistance.
Printed in U.S.A.
