Adapters
Indicator status
Description
Red
Error. Overcurrent limit (520 mA) detected and power to target was
switched off for protection.
Table 5: TPWR indicator statuses
THE ARM-20 ADAPTER
The ARM-20 adapter is included with I-jet. It converts the MIPI-20 I-jet cable to the

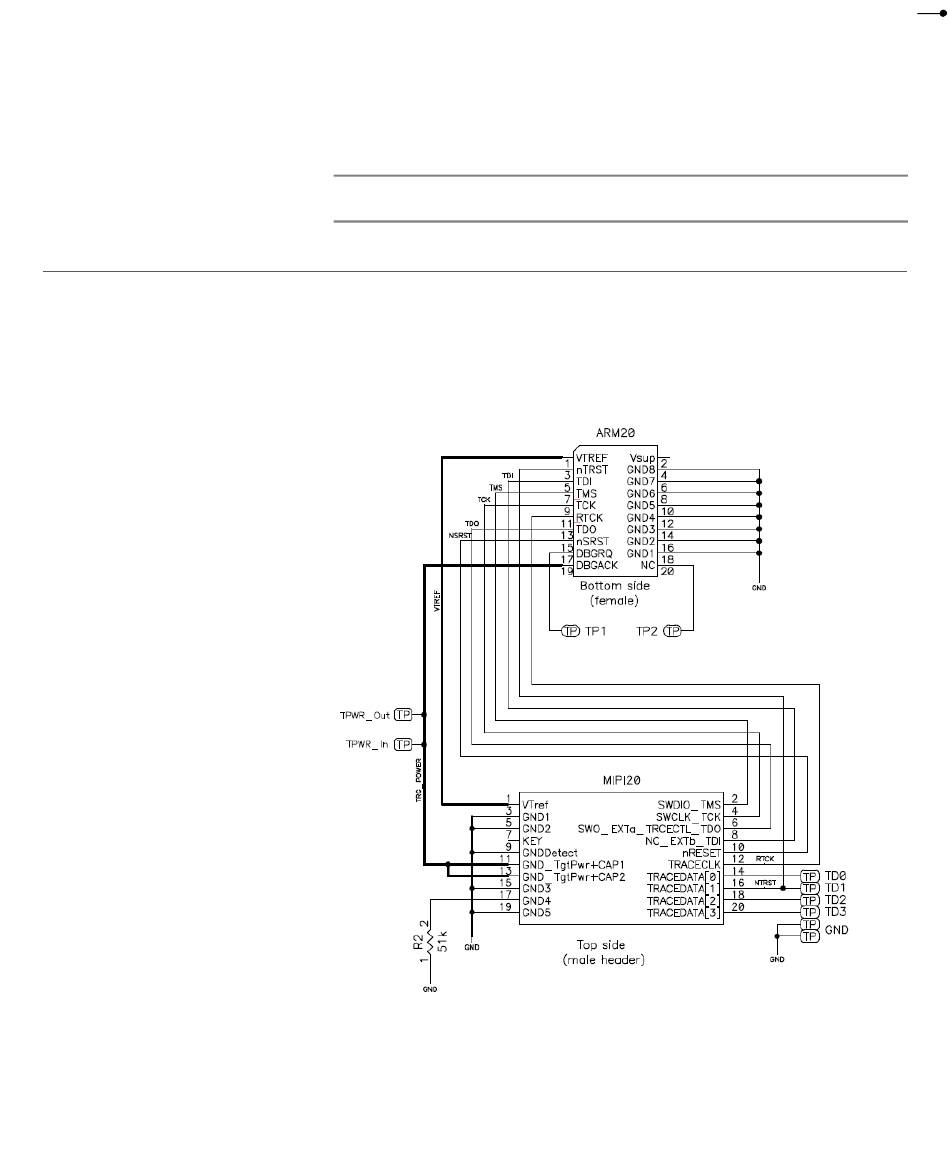

legacy ARM-20 (0.1 in × 0.1 in pitch) JTAG headers. This is a diagram of the adapter:
Figure 5: MIPI-20 to ARM-20 JTAG adapter
Technical specifications
17
