Adapters
I-jet®
26
User Guide

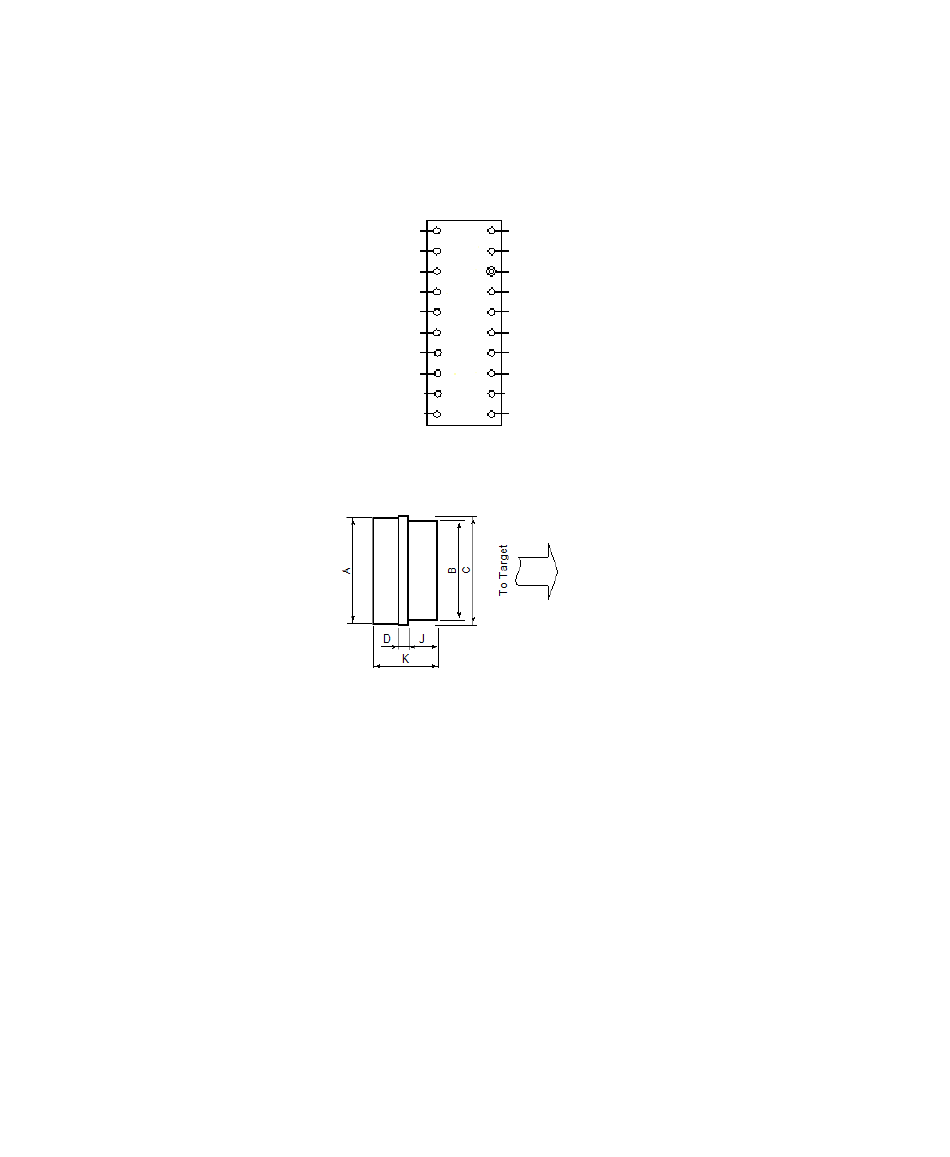

This is the pinout of the target cTI20 JTAG header. Pin 6 should be missing to indicate
the proper orientation.
TMS
1 2
TDI 3
4
TVD (PD)
5 6
TDO
8
7
TCKRTN
9 10
TCK
11
12
EMU0
13
14
nSYSRST
15 16
EMU2 (NC)
17 18
EMU4 (NC)
19
20
Figure 13: Pinout of the target cTI20 JTAG header
These are the top view dimensions of the ADA-MIPI20-cTI20 adapter:
Figure 14: Top view of the ADA-MIPI20-cTI20 adapter
A
18.9 mm (0.74 in)
B
17.7 mm (0.7 in)
C
19.4 mm (0.76 in)
D
1.8 mm (0.07 in)
J
6.0 mm (0.24 in)
K
12.8 mm (0.50 in)
nTRST
TDIS
KEY
GND
GND
GND
EMU1
GND
EMU3 (NC)
GND
