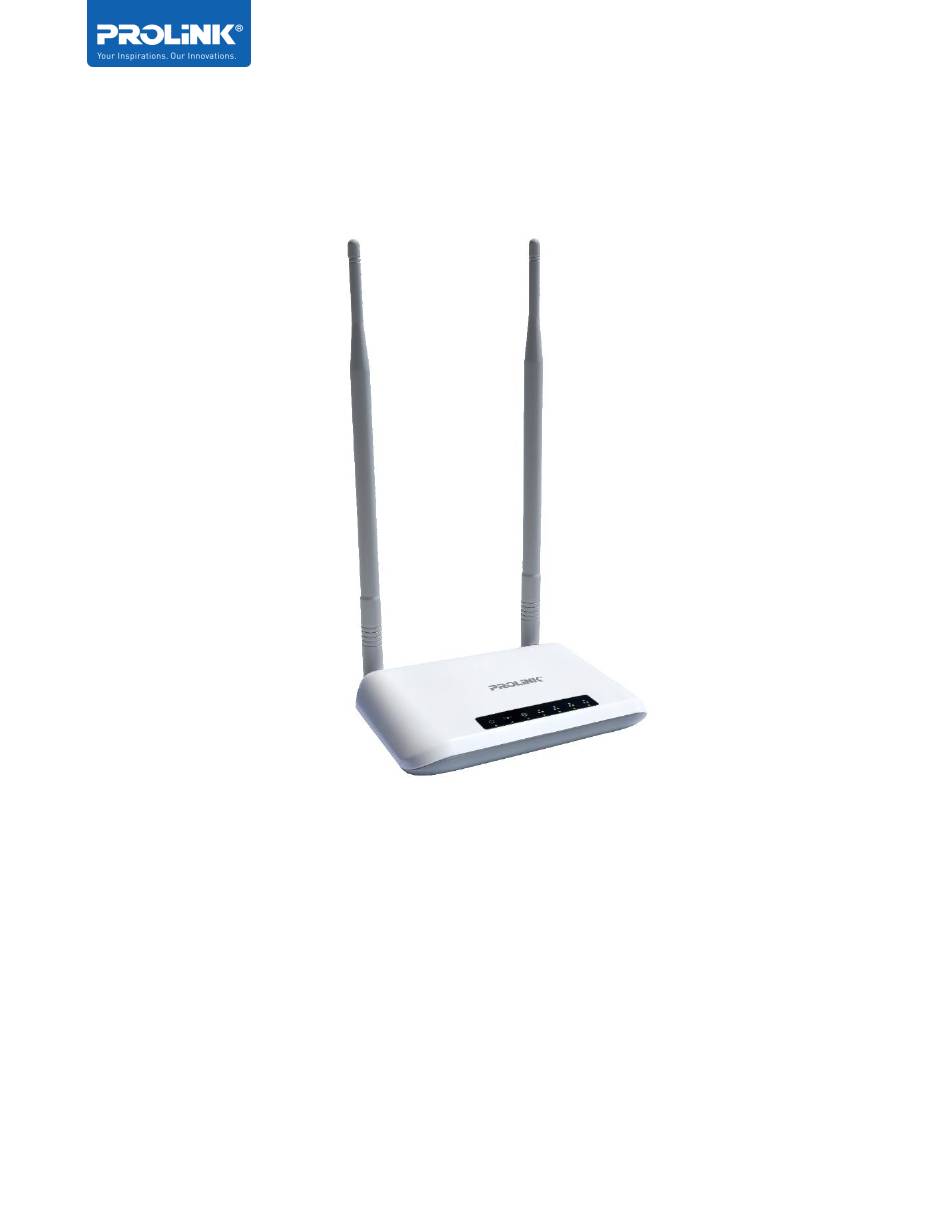

Product User Manual ® PROLiNK Wireless-N 300Mbps Router PRN3009 v. 1.0...
Page 2
Copyright The contents of this publication may not be reproduced in any part or as a whole, stored, transcribed in an information retrieval system, translated into any language, or transmitted in any form or by any means, mechanical, magnetic, electronic, optical, photocopying, manual, or otherwise, without the prior written permission.
Page 3
Preface Revision Date Descriptions 11/09/2019 Initial release...
PRN3009 Wireless-N 300 Routers 1 Introduction This chapter introduces the packaging contents of PRN3009 Router, the product overview regarding all the key features available and the appearance of the product included the LED indicator. Packaging Contents Quantity (unit) Item Descriptions...
Wireless-N 300 Routers Product Overview The PROLiNK Wireless-N 300Mbps PRN3009 is a router which has Six Modes available to choose depending on the user's needs in all circumstances. The PRN3009 powered up by 2x2 MIMO technology. This enhanced version of the existing Wireless-N 300Mbps Router improved on connectivity, extensive wireless coverage and network speed, which It can fully meet the requirement of Small Office Network with High Networking Performance.
® PROLiNK PRN3009 Wireless-N 300 Routers Hardware Overview LAN 1 - 4 The LAN ports to be connected to local PC / laptop WAN port is to be connected to the broadband access device:- Fibre / Cable / DSL modem, or to any other internet source...
® PROLiNK PRN3009 Wireless-N 300 Routers LED Indicator Power Wi-Fi Signal Internet/WAN Strength LED ICON LED DISCRIPTION LED BEHAVIOR Power OFF - Power is off ON - Power is on Wi-Fi OFF - Wireless interface is disabled ON - Wireless interface is active...
• Keep away or avoid placing PRN3009 from electrical devices or appliance that generate the electromagnetic wave. To prevent Wi-Fi signal interference and signal loss • Place PRN3009 where it can be connected to multiple client and power source to ease the installation work.
Routers by following the instructions below. Router Mode Setup The following is a step to setup PRN3009 as a Router. Make sure your internet connection source is coming from the ONT/Cable/DSL modem or any other internet source. Follow the step below to complete the hardware connection 1.
Wireless-N 300 Routers AP (Access Point) Mode Setup The following is a step to setup PRN3009 as AP Mode. If the internet connection is coming from the Main router, follow the following step below to complete the hardware connection. 1. Turn OFF Main Router/Existing Router 2.
Repeater / Repeater WISP Mode Setup The following is a step to setup PRN3009 as a Wi-Fi Repeater or Repeater WISP. Make sure your internet connection source is coming from the main router. Follow the step below to complete the hardware connection.
Client / Client (WISP) Mode Setup The following is a step to setup PRN3009 as a Client or Client WISP. Make sure your internet connection source is coming from the main router. Follow the step below to complete the hardware connection.
In the previous chapter, we have made a network hardware connection setup between Internet Access, Computer and PRN3009 Router through wireless and LAN cable. In this chapter, it guides user on how to check TCP/IP setup before getting started, how to logging into the PRN3009 Desktop and Mobile Web User Interface configuration and guide on using Setup Wizard.
Page 16
LAN port. At the same time observe the LED indicator on PRN3009 Router and on Computer network adapter (if applicable) 2. Ensure the IP Address provided by PRN3009 is valid and not overlapping with other Computer by checking through the TCP/IP configuration of the network adapter.
“http://192.168.123.254”, or enter default Domain Name “http://prn3009.setup/”. 2. For the first time setup, it Pop-Up the login Requirement for PRN3009 Router. At this stage, the user needs to enter a login Username and Password. For the first time setup, the default Username for login page is “admin”, and the default password is “password”.
Page 18
PROLiNK® PRN3009 Wireless-N 300 Routers 3. After successfully login, it directed to the Home/ Setup Wizard Page with current Operation Mode. By default, the operation mode is set as Routers.
Browser” either user using android or IOS. The support most of the browser available, its also included Chrome, Firefox and safari. Mobile Phone Web Utility is the easiest way to access and also to manage the PROLiNK PRN3009, where it can help the user to easily monitor Internet status, device status, and connected clients information.
Page 20
PROLiNK® PRN3009 Wireless-N 300 Routers After Login, it redirects to the Home Page. By Default, the PROLiNK PRN3009 is in Router Mode.
Wireless-N 300 Routers Setup Wizard PROLiNK PRN3009 come with six operations. All this mode is available for user choose base on network infrastructure. Operation mode available is Router Mode, Access Point (AP), Repeater Mode, Repeater WISP Mode, Client Mode and Client WISP Mode. For the first time entering the PRN3009 web utility, by default, the PROLiNK PRN3009 is setup as Router Mode.
Page 22
PROLiNK® PRN3009 Wireless-N 300 Routers 2. Set the Wireless Network detail. By default, the Wireless Network Name (SSID) is “PROLiNK_PRN3009_xxxx” (XXXX is the last 4 LAN MAC address), and Set Wireless Security Key. For Wireless password/Security Key, as an enhanced security measure, the user needs to create a new password, and the requirement must meet at least 3 out of the following 4 complexity rules with minimum 10 characters and maximum 63 characters.
Page 23
Auto Config (DHCP) - If your Internet connection is assigning IP Address automatically to PRN3009, then press “Save/Apply” when finished. Please note, if there is a special requirement from ISP, then get the information required from ISP on VLAN ID for Internet and IPTV.
Page 24
PROLiNK® PRN3009 Wireless-N 300 Routers b) PPPoE Dial-Up – Enter the Username and Password provided by the ISP if the subscription with the ISP is using PPPoE. Click “Save/Apply” when finished. If PPPoE username and password is incorrect, at the Status Table will shows PPPoE Disconnected.
Page 25
Click “Save/Apply” when finished. At the homepage, if the configuration is correct, the connection status shows “Fixed IP Connected” in the status. 4. After Click “Save/Apply”, the PRN3009 will auto reboot and need to login, it shows the wizard page with the “Router” configuration set earlier.
PROLiNK® PRN3009 Wireless-N 300 Routers Access Point (AP) Wizard 1. Select Access Point (AP) Mode as operation mode. 2. Click “Auto Configuration LAN IP Address” to automatically get LAN IP Address from the Main router.
Page 27
PROLiNK® PRN3009 Wireless-N 300 Routers 3. Set the Wireless Network detail. By default, the Wireless Network Name (SSID) is “PROLiNK_PRN3009_xxxx” (XXXX is the last 4 LAN MAC address), and Set Wireless Security Key. Click “Save/Apply”. For Wireless password/Security Key, as an enhanced security measure, the user needs to create a new password, and the requirement must meet at least 3 out of the following 4 complexity rules with minimum 10 characters and maximum 63 characters.
PROLiNK® PRN3009 Wireless-N 300 Routers 5. After Click “Save/Apply”, the PRN3009 will auto reboot and need to login, it shows the wizard page with the “Access Point (AP)” configuration set earlier. Repeater Wizard 1. Select Repeater Mode for the operation mode.
Page 29
PROLiNK® PRN3009 Wireless-N 300 Routers 2. Click “Auto Configuration LAN IP Address” to automatically get LAN IP Address from the main router.
Page 30
PROLiNK® PRN3009 Wireless-N 300 Routers 3. Set the Wireless Network detail. By default, the Wireless Network Name (SSID) is “PROLiNK_PRN3009_xxxx” (XXXX is the last 4 LAN MAC address), and Set Wireless Security Key. For Wireless password/Security Key, as an enhanced security measure, the user needs to create a new password, and the requirement must meet at least 3 out of the following 4 complexity rules with minimum 10 characters and maximum 63 characters.
Page 31
Wireless SSID once click the “Auto Copy From Router”. 5. After click “Save/Apply”, PRN3009 will reboot and if your PC connected to the Wi-Fi while setup the Repeater Wizard, reconnect again to the new SSID. After the Wi-Fi is connected, user need to login again and it shows the wizard page with the “Repeater”...
PROLiNK® PRN3009 Wireless-N 300 Routers Repeater (WISP) Wizard Select Repeater Mode for the operation mode.
Page 33
PROLiNK® PRN3009 Wireless-N 300 Routers 2. Set the Wireless Network detail. By default, the Wireless Network Name (SSID) is “PROLiNK_PRN3009_xxxx” (XXXX is the last 4 LAN MAC address), and Set Wireless Security Key. For Wireless password/Security Key, as an enhanced security measure, the user needs to create a new password, and the requirement must meet at least 3 out of the following 4 complexity rules with minimum 10 characters and maximum 63 characters.
Page 34
Wireless SSID once click the “Auto Copy From Router”. 4. After click “Save/Apply”, PRN3009 will reboot and if your PC connected to the Wi-Fi while setup the Repeater Wizard, reconnect again to the new SSID. After Wi-Fi is connected, user need to login again, and it shows the wizard page with the “Repeater (WISP)”...
Page 36
PROLiNK® PRN3009 Wireless-N 300 Routers 2. Click “Auto Configuration LAN IP Address” to automatically get LAN IP Address from the main router.
Page 37
3. Click “Site Survey” to scan the host network if your host network is hidden, user need to enter it manually. Select the network host and enter the Network Key. Note that if the PRN3009 in Client Mode, the PRN3009 will no longer accept wireless clients or broadcast the wireless signal.
Page 39
2. By click “Site Survey” to scan the host network if your host network is hidden, you need to enter it manually. Select the network host and enter the Network Key. Note that if the PRN3009 in Client (WISP) Mode, the PRN3009 will no longer accept wireless clients or broadcast the wireless signal.
If the user forgot the password, user need factory would reset the router by pressing and hold the Reset button for more than 10 seconds. Locate the reset button on the rear side of the PROLiNK PRN3009.
Page 41
The First page shows up after login successfully is the Wizard Page. The Wizard page displays the current mode select for PRN3009. To set up for each Operation Mode, please check on Setup Wizard Step. Next Sub-chapter explains all the available option for each mode by clicking the Advance Button on the top right page.
Wireless-N 300 Routers Router Status For PRN3009 has six different modes and each Mode has a different status. For the first time setup, by default, the PRN3009 will in Router Mode. Shown below is the Status info and status for each Mode.
This information only available on Repeater Mode and Repeater (WISP) Mode. It shows the information about wireless mode, the SSID of the host router connected, Authentication and Encryption of the host router, Host Router BSSID or MAC address and the state connection between PRN3009 with the host router.
IPv6 WAN and LAN Configuration and Status This table shows the PRN3009 is supported IPV6 ready. The info in the table shows IPV6 WAN is Link Type, Origin type, Link-Local Address, Default Gateway and LAN MAC address. For IPV6 LAN is...
PROLiNK® PRN3009 Wireless-N 300 Routers Router Mode Status The status table shows the current status and some basic information about PRN3009 in Router Mode. Including the version number, WLAN setting set for the router, LAN and WAN setting and IPV6 Setting.
Wireless-N 300 Routers Access Point (AP) Mode Status The status table shows the current status and some basic information about PRN3009 in Access Point Mode. Including the version number, WLAN setting set for the router, LAN and WAN setting and...
PROLiNK® PRN3009 Wireless-N 300 Routers Repeater Mode Status The status table shows the current status and some basic information about PRN3009 in Repeater Mode. Including the version number, WLAN setting set for the router, LAN and WAN setting and IPV6 Setting.
Wireless-N 300 Routers Repeater (WISP) Mode Status The status table shows the current status and some basic information about PRN3009 in Repeater (WISP) Mode. Including the version number, WLAN setting set for the router, LAN and WAN setting and IPV6 Setting.
PROLiNK® PRN3009 Wireless-N 300 Routers Client Mode Status The status table shows the current status and some basic information about PRN3009 in Client Mode. Including the version number, WLAN setting set for the router, LAN and WAN setting and IPV6 Setting.
Wireless-N 300 Routers Client (WISP) Mode Status The status table shows the current status and some basic information about PRN3009 in Client (WISP) Mode. Including the version number, WLAN setting set for the router, LAN and WAN setting and IPV6 Setting.
In the Wireless Advance setting, there is six option that the user can manually configure. Basic Settings, Advance Settings, Security Settings, Access Control, WPS Settings, and GREEN AP. Each subchapter below explain in more details for each option available in Wireless Advance Setting for PRN3009. Basic Settings The option available in Wireless basic setting is:- Country Region –...
PROLiNK® PRN3009 Wireless-N 300 Routers Multiple AP The device supports multiple vertical AP. They are sharing the same RF radio, but are able to set auth. and encryption, and are able to accept associations separately. By click “Enable”, The Multiple AP can be created up to four extra AP.
PROLiNK® PRN3009 Wireless-N 300 Routers Advance Settings Advanced Settings is only for more technically advanced users, who have sufficient knowledge about wireless LAN. These settings should not be changed unless the user knows what effect the changes will have on wireless compatibilities.
PROLiNK® PRN3009 Wireless-N 300 Routers Security Settings This setting is manually set up the wireless security settings to prevent any unauthorized access to your wireless network. WEP - Wired Equivalent Privacy, old encryption introduced by IEEE 802.11. It supports 64-bit and 128-bit keys and has two security methods: Open and Shared.
PROLiNK® PRN3009 Wireless-N 300 Routers Access Control Access Control can be set to allow or deny client associating with the wireless network by MAC address. There is two option available:- Allow Listed - only allows the clients whose MAC addresses are in the access control list.
PROLiNK® PRN3009 Wireless-N 300 Routers WPS Settings WPS (Wi-Fi Protected Setup) could let wireless user client atomically synchronize its settings and connect to the Access Point in a minute without any hassle. WPS Settings – User has the option to enable and disable WPS settings.
PROLiNK® PRN3009 Wireless-N 300 Routers Green AP Green AP allows the user to set up the wireless turning Off and On schedule. Start time is the time the wireless turn off the broadcasting and the End Time is the time wireless turn on the broadcasting.
DHCP Type - Client will obtain an IP address from DHCP server elsewhere, while on Server will offer IP addresses for the network. DHCP Client Range – Range of IP address provided by the PRN3009 to the client DHCP Lease Time - Enter the length of time for the IP address lease in minutes.
PROLiNK® PRN3009 Wireless-N 300 Routers Show Client – DHCP Client Range Click on “Show Client” the table DHCP client list will popup. It will list all the DHCP connection to the router. Set Static DHCP Static DHCP is used to reserve a specified IP address for the MAC address, so the host will always obtain the bound IP address when booting up.
PROLiNK® PRN3009 Wireless-N 300 Routers WAN Settings On WAN setting, there is three different connection configuration can manually configure. Fixed IP, Auto-Config (DHCP) and PPPoE Dial-UP. This is the advanced setting for advanced user to configure. Fixed IP - Manually set IP address, gateway, DNS server etc. for the network connection.
Page 61
PROLiNK® PRN3009 Wireless-N 300 Routers Auto Config. (DHCP) - No need to set connection settings if the network supports DHCP. Usually all the configuration is configure automatically when connected to the host network.
Page 62
PROLiNK® PRN3009 Wireless-N 300 Routers PPP Dial-Up - Most widely used connection type. User name and password must provide for Internet surfing authentication. MTU - Maximum Transmit Unit. Some network type may require proper MTU size to work correctly; DNS Server – Resolves a domain name to IP address, required by almost all network applications;...
IPV6 Settings WAN Setting PRN3009 is the IPV6 ready router. This page is used to configure parameter for internet network which connects to WAN port of your router, this to enable IPv6 function and set up the WAN settings for IPv6 connection.
PROLiNK® PRN3009 Wireless-N 300 Routers LAN Setting This page is to set up the LAN settings for IPv6. DHCP Server - can be used to offer IPv6 address and DNS server address for the hosts, but is not able to provide default gateway. Please set router advertisement for a gateway if necessary.
PROLiNK® PRN3009 Wireless-N 300 Routers Router Advertisement The PRN3009 support IPV6 Router advertisement for Neighbor Discovery and Auto-configuration. Below are the details on the configurations. Max. Router Advertisement Interval - The maximum time allowed between sending unsolicited multicast router advertisements from the interface.
A firewall is software used to maintain the security of a private network. Firewalls block unauthorized access to or from gaining access to private networks connected to the Internet. The PRN3009 has seven option on firewall setting, which is Port Filtering, IP filtering, MAC Filtering, Port Forwarding, URL Filtering, DMZ and VLAN setting.
PROLiNK® PRN3009 Wireless-N 300 Routers IP Filtering IP Filtering is used to restrict local host with specified IP address from accessing the Internet IP Filtering allow you to restrict certain types of data packets from your local network to Internet through the Gateway.
PROLiNK® PRN3009 Wireless-N 300 Routers Port Forwarding Port Forwarding allows you to automatically redirect common network services to a specific machine behind the NAT firewall. These settings are only necessary if you wish to host public services such as a Web server or mail server on the private local network.
PROLiNK® PRN3009 Wireless-N 300 Routers DMZ is a short form from Demilitarized Zone, is used to provide Internet services without sacrificing unauthorized access to its local private network. Typically, the DMZ host contains devices accessible to Internet traffic, such as Web (HTTP) servers, FTP servers, SMTP (e-mail) servers and DNS servers. By Enable the DMZ user can add the DMZ host IP address.
FTP or Web. By enable the QoS, user can set specific Upload and Download speed for the PRN3009 and can add rule for specific client either “Guaranteed Minimum Bandwidth” or “Restricted Maximum...
PROLiNK® PRN3009 Wireless-N 300 Routers Route Settings Dynamic Route may learn neighbour network topology by Route Information Protocol (RIP) and set the routing table automatically for the networks. Its allow you to define custom routes allowing to be directed to a specific client or location. There are two options user can manually configure which is...
Wireless-N 300 Routers Administration On the Administration page, there is eleven main option for the user to configure for PRN3009. The eleven option is Statistics, DDNS, Time Zone Settings, DoS Settings, System Log, Diagnostics, Upgrade Firmware, Settings, TR069 Settings, Password and Others Settings.
Wireless-N 300 Routers Time Zone Settings Time Zone Settings allow the user to change PRN3009 time and date. You could manually insert the time and date or automatically sync with the server (Syn. My Host). Please note, the system time may synchronize with a public time server over the Internet by choosing NTP server.
DoS is a short form from Denial-of-Service, is a type of attack on a network that is designed to bring the network to its knees by flooding it with useless traffic. PRN3009 comes with DoS attack protection. DoS Prevention will detect attempts and prevent your network from attacking. Below is the details...
Page 79
PROLiNK® PRN3009 Wireless-N 300 Routers Flooding - The attack flooding requests in a short time, and cause the service is not available for legal requests because of the server busy handling invalid flooding requests. This is the most widely used attack.
PROLiNK® PRN3009 Wireless-N 300 Routers System Log The system log is continuous records the running events of the device to help to find and solve the issues. All log will record into System Log Window. By default, the system log is disabled.
PROLiNK® PRN3009 Wireless-N 300 Routers Diagnostic This features is use to check the connection PRN3009 over the internet. The available check is using PING and Trace Route. Shows below is the Diagnostic Result table.
Please DO NOT power off or reboot the device during the upgrade. Otherwise, your device may be damaged. Settings In this page user can Import and export PRN3009 router setting and also user can reset to factory setting. Export - Export current settings information into a file.
Internet Protocol network. Setup the TR069 CPE (Customer Provide Equipment) and change the settings of the ACS (Auto Configuration Server) parameters. PRN3009 is equipped with these features, by default its disable.
PROLiNK® PRN3009 Wireless-N 300 Routers Password On this option user can set user name and password for the web pages login authentication. The requirement must meet at least 3 out of the following 4 complexity rules with minimum 10 characters and maximum 63 characters. Below is the popup if user key in password don’t meet the...
Other settings are the extra setting that includes in the administration configuration page. User has an option to change the language to simplified Chinese or English, and the user has an option to reboot the PRN3009 by using WEB UI.
