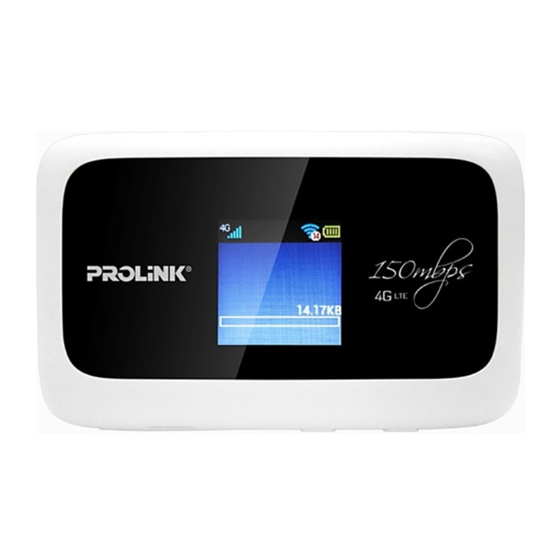

MODEL NO:
PRT7007L
Quick Installation Guide
Portable 4G LTE WiFi Hotspot
Version 1.00
(English / Indonesian)
BEFORE GETTING STARTED
This document is designed to aid you to get started with the device. If you experience problems following
these guides or need further information pertaining to the device, please visit our website at
www.prolink2u.com. All specifications are subject to the manufacturer's configuration at the time of
shipping and may change without prior notice, written or otherwise.

Advertisement

loading
Need help?

Need help?

Do you have a question about the PRT7007L and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PROLiNK PRT7007L

Summary of Contents for PROLiNK PRT7007L

  • Page 1 MODEL NO: PRT7007L Quick Installation Guide Portable 4G LTE WiFi Hotspot Version 1.00 (English / Indonesian) BEFORE GETTING STARTED This document is designed to aid you to get started with the device. If you experience problems following these guides or need further information pertaining to the device, please visit our website at www.prolink2u.com.

  • Page 2: Package Contents

    All specifications are subject to the manufacturer’s configuration at the time of shipping and may change without prior notice, written or otherwise. Items: ® One (1) PROLiNK PRT7007L with built-in 2300mAh Lithium (Li-ion) Battery One (1) unit of USB Cable One (1) piece of Quick Installation Guide (QIG) Note: 1.
  • Page 3 2. Overview Interface and Buttons 4. LCD Screen 1. SIM/USIM Card Slot / Reset Button 6. Charger/USB port 2. WPS Button 7. AUX Antenna Connector 3. Power Button 8. Main Antenna Connector Indicators When the device is powered on, the following icons may be displayed on the LCD screen.

  • Page 4: Hardware Installation

    3. Close the SIM (or USIM) card cover. Note: 1. Open the card slot cover gently. 2. PRT7007L does not support the Micro/Nano SIM card. To avoid damaging the device, do not use Micro/Nano SIM cards or with any card holders. EN 3...
  • Page 5 Note: 1. If the system does not launch installation automatically, you can run the installation program in the path of My Computer > PROLiNK 4G. 2. The driver of your device will be installed at the same time. • After the installation, the system will create a shortcut icon on your desktop.
  • Page 6 3. Hardware Installation ii. Wi-Fi mode - Connection via Wi-Fi Power on your device directly. It will take 1~2 minutes to initialize. Use your normal Wi-Fi application on the client to search for the available wireless network. Select the SSID of your device (default SSID is PROLiNK_PRT7007L_xxxxx), and then click Connect.
  • Page 7 3. Hardware Installation iii. Mixed Mode – Connection via both USB and Wi-Fi This is a combination of using the USB cable and Wi-Fi connection. 4. Web-based Con guration Accessing the WebGUI Configuration Page Make sure the connection between your device and the client is active.

  • Page 8: Quick Setup

    4. Web-based Con guration Quick Setup After logging in, select Settings > Quick Settings, and then the Quick Setup wizard will appear. The Quick Setup wizard will guide you on setting up the basic parameters for your device in the safest way. After this procedure, you can use your Internet service.
  • Page 9 4. Web-based Con guration Select Settings > Firewall Set the Mac/IP/Port Filtering, Port Forwarding or the System Security configuration. Select Settings > Router Settings Change Router LAN IP and DHCP settings. Select Settings > Internet Wi-Fi Connect to Hotspot as Wi-Fi repeater.
  • Page 10 4. Web-based Con guration ii. Under Settings > Wi-Fi Settings > Advanced Settings, select Enable for Multi Band Switch and click Apply EN 9...
  • Page 11 4. Web-based Con guration iii. Under Settings > Wi-Fi Settings > Basic / Advanced Settings, the Guest SSID / Guest SSID setting will appear. Users can view or edit 5GHz SSID and Password. EN 10...

  • Page 12: Disconnect From The Internet

    4. Web-based Con guration Disconnect from the Internet 1. Log in the WebGUI Configuration page, and go to Home. 2. Click Connect / Disconnect to connect or to terminate the Internet connection. Note: Turning off the device can also terminate the Internet connection. Sleep Mode The device will enter into Sleep Mode when no users are connected to the device in 10 minutes.

  • Page 13: Isi Kemasan

    All specifications are subject to the manufacturer’s configuration at the time of shipping and may change without prior notice, written or otherwise. Items: ® Satu (1) PROLiNK PRT7007L with built-in 2300mAh Lithium (Li-ion) Battery Satu (1) unit of Kabel USB Satu (1) buah Lembar Panduan Instalasi Catatan: 1.
  • Page 14 2. Penjelasan Tombol dan Antarmuka 4. LCD Screen 1. Slot Kartu SIM/USIM / Tombol Reset 6. Charger/USB port 2. Tombol WPS 7. AUX Antenna Connector 3. Tombol Power 8. Main Antenna Connector Indikator Bila perangkat diaktifkan, ikon berikut akan ditampilkan pada layar LCD.
  • Page 15 2. Masukkan SIM (atau USIM) ke dalam slot SIM, akan terdengar bunyi klik jika SIM (atau USIM) sudah benar-benar terpasang. 3. Tutup penutup SIM (or USIM). Catatan: 1. Buka penutup SIM secara perlahan. 2. PRT7007L tidak dapat mendukung Micro/Nano SIM, maka akan terjadi kerusakan, Jangan menggunakan Micro/Nano SIM. ID 3...
  • Page 16 • Setelah instalasi, sistem akan membuat ikon shortcut pada desktop Anda. Double klik pada shortcut dan akan membawa Anda ke konfigurasi Web halaman PRT7007L. Kecuali Anda perlu mengubah pengaturan 3G/4G atau mengakses pengaturan lanjutan dari perangkat, Anda dapat mengakses Internet tanpa perlu mengkonfigurasi perangkat.
  • Page 17 3. Instalasi Perangkat ii. Modus WiFi – Koneksi melalui WiFi Hidupkan perangkat Anda secara langsung. Ini akan memakan waktu 1 ~ 2 menit untuk menginisialisasi. Gunakan aplikasi WiFi normal pada klien untuk mencari nirkabel yang tersedia pada jaringan. Pilihlah SSID dari perangkat Anda (Default SSID adalah PROLiNK_PRT7007L_xxxxx), lalu klik konek.
  • Page 18 3. Instalasi Perangkat iii. Modus Campuran – Koneksi melalui WiFi dan USB Ini adalah kombinasi dari menggunakan kabel USB dan Wi-Fi. 4. Web-based Con guration Mengakses Halaman Konfigurasi WebGUI Pastikan sambungan antara perangkat Anda dan klien aktif. Jalankan Internet browser dan masukkan http://192.168.123.1 atau http://p.home Halaman login akan muncul sebagai berikut.
  • Page 19 4. Web-based Con guration Pengaturan Cepat Setelah login, pilih Settings > Quick Settings, dan kemudian wizard Pengaturan Cepat akan muncul. Wizard Pengaturan Cepat akan memandu Anda tentang pengaturan parameter dasar untuk perangkat dengan cara yang paling aman. Setelah prosedur ini, Anda dapat menggunakan layanan Internet Anda.
  • Page 20 4. Web-based Con guration Pilih Settings > Device Settings Mengubah pengaturan Administrator, memulihkan standar pabrik, mengelola PIN atau mengatur konfigurasi antarmuka LAN. Pilih Settings > Firewall Pengaturan Mac / IP / Port Filtering, Port Forwarding atau konfigurasi Sistem Keamanan. Pilih Settings > Router Settings Ubah LAN Router IP dan pengaturan DHCP.
  • Page 21 4. Web-based Con guration ii. Menu settings > Wi-Fi Settings > Advanced Settings, klik Enable untuk Multi Band Switch dan klik Apply ID 9...
  • Page 22 4. Web-based Con guration iii. Menu Settings > Wi-Fi Settings > Basic / Advanced Settings, the Guest SSID / Guest SSID setting akan terlihat. Pengguna dapat melihat/mengubah setting untuk 5GHz SSID dan Password. ID 10...
  • Page 23 4. Web-based Con guration Mengakhiri koneksi dari Internet 1. Masuk halaman Konfigurasi WebGUI, dan pergi ke Home. 2. Klik Connect / Disconnect untuk menghubungkan atau untuk mengakhiri koneksi internet. Catatan: Mematikan perangkat ini juga dapat menghentikan koneksi Internet. Modus Tidur Perangkat akan masuk ke Modus Tidur tanpa pengguna yang terhubung ke perangkat dalam 10 menit.
  • Page 28 Note: Closed on Saturdays, Sundays and local/regional Public Holidays. Register Online For Your Product Warranty @ www.prolink2u.com/register PROLiNK® is a trademark of Fida International (S) Pte Ltd and is manufactured under its authority. Microsoft®, Windows®, Windows® 98SE/ME/2000/XP/Vista/7/8 are either registered trademarks or trademarks of Microsoft Corporation.
