PRC2402M - Setting up for Singtel Internet with ONT Connection

All physical connection is assumed to be connected properly and working.

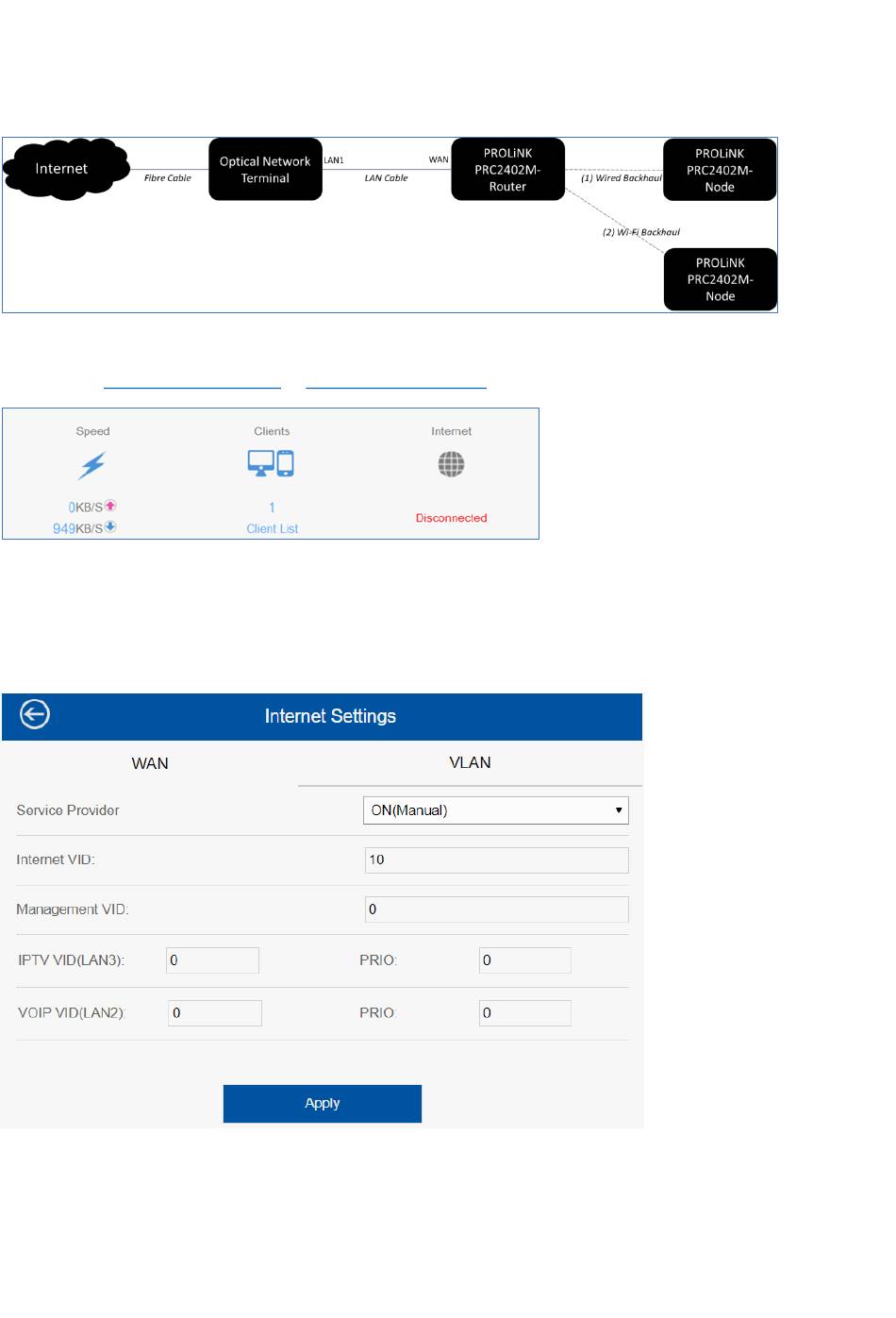

Below diagram depicts correct physical connectivity setting

Step 1. Connect the PRC2402M Router's WAN port to Optical Network Terminal's LAN 1

Step 2. Go to

http://prc2402m.setup

Step 3. Click Setup

Step 4. Click Internet Settings

Step 5. Click VLAN

Step 6. Set the same as per below screenshot and press Apply button to proceed

Step 7. Power On the other mesh node.

http://192.168.123.254

and Go through the Setup Wizard

Table of Contents

Need help?

Do you have a question about the PRC2402M and is the answer not in the manual?

Page 1 PRC2402M - Setting up for Singtel Internet with ONT Connection Notes: All physical connection is assumed to be connected properly and working. Below diagram depicts correct physical connectivity setting Step 1. Connect the PRC2402M Router’s WAN port to Optical Network Terminal’s LAN 1 Step 2. Go to http://prc2402m.setup http://192.168.123.254 and Go through the Setup Wizard Step 3.
Page 2 The Set Top Box is to be connected at Mesh Router’s LAN3. Currently, no support for Set Top Box at node. Step 1. Connect the PRC2402M Router’s WAN port to Optical Network Terminal’s LAN 1 Step 2. Go to http://prc2402m.setup http://192.168.123.254...
