Dakota Desk
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.
A
B
bolt
screw
x6
x6
D
E
bolt
nut
x4
x4

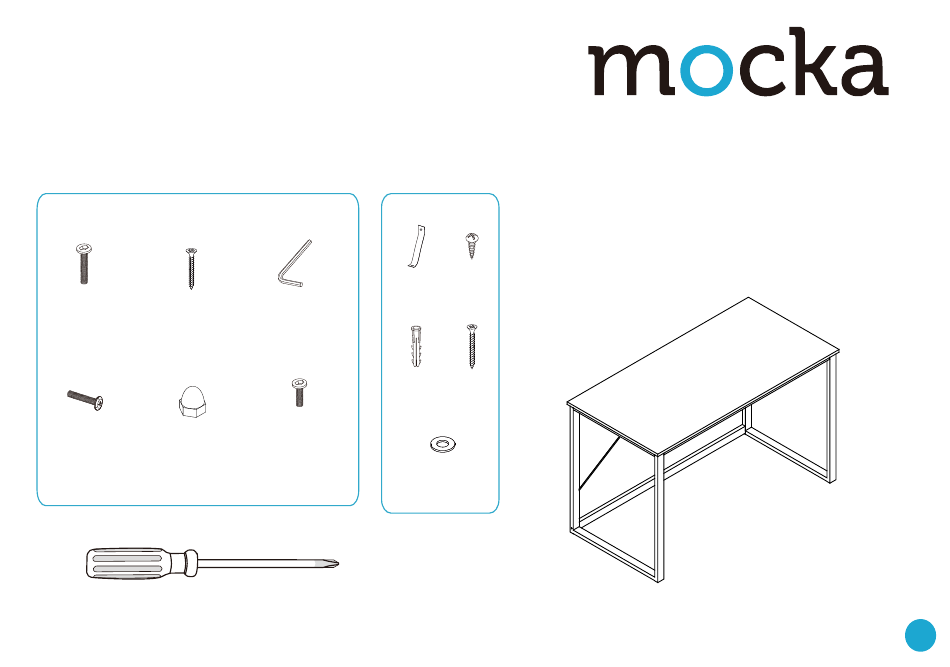

Hardware Supplied
Phillips screwdriver required
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
mocka.co.nz | mocka.com.au
| PO BOX 6171, Maroochydore, QLD, 4558
V
C
safety
strap x1
allen key
X
x1
F
wall
anchor
x1
Z
bolt
x4
washer
x2
Wall Strap
WARNING:
Any furniture that is not anchored to a wall has the potential to tip
over in certain circumstances, i.e. if a child attempts to climb up on the furniture
W
or in the event of an earthquake. Accordingly, we recommend that all furniture
is anchored to a wall. We supply a free safety wall anchor with all furniture sold
and we recommend these are used to prevent your product tipping. The fixing
device provided should fit most wall types, but please note that different wall
materials may require different fixing devices from those supplied.
screw
x1
Y
wall
screw
x1
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Mocka Dakota Desk
Summary of Contents for Mocka Dakota Desk
- Page 1 Dakota Desk Assembly Instructions Thank you for your purchase. Please follow the instructions below for correct assembly. WARNING: Any furniture that is not anchored to a wall has the potential to tip over in certain circumstances, i.e. if a child attempts to climb up on the furniture or in the event of an earthquake.
- Page 2 Attach panels [2], [3] and [5] to panel [1] and secure with 6x screws (B) with 6x bolts (A). Tighten with an Allen key (C). 4x bolts (F). Tighten with a screwdriver and an Allen key (C). mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558...
- Page 3 [6] to panels [2] and [5] and secure with 4x bolts (D) and Fasten to the wall using 1x washer (Z), 1x wall anchor (X) and 1x 4x nuts (E). Tighten with a screwdriver. wall screw (Y). mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558...
- Page 4 Dakota Desk Assembly Instructions Ensure unit is balanced and steady before use. You’re done, enjoy! mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558...
