Dakota Bookcase
Thank you for your purchase.
Please follow the instructions below for correct assembly.
A
B
long bolt
screw
x20
x16
D
E
screw
bolt
x6
x4

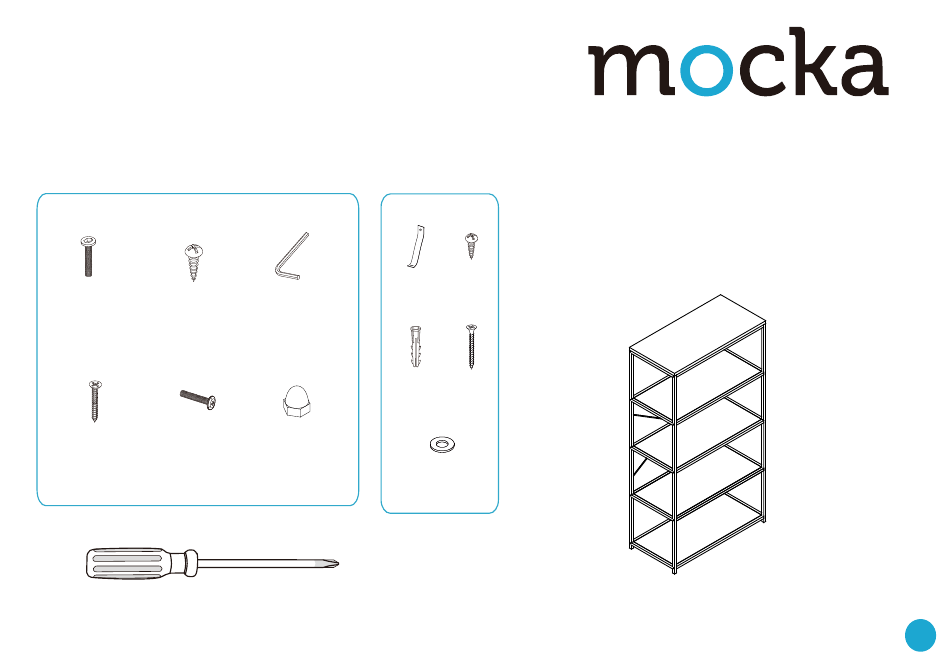

Hardware Supplied
Phillips screwdriver required
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
mocka.co.nz | mocka.com.au
| PO BOX 6171, Maroochydore, QLD, 4558
C
V
safety
strap x1
allen key
x1
X
F
wall
anchor
x1
Z
nut
x4
washer
x2
Wall Strap
WARNING:
Any furniture that is not anchored to a wall has the potential to tip
over in certain circumstances, i.e. if a child attempts to climb up on the furniture
W
or in the event of an earthquake. Accordingly, we recommend that all furniture
is anchored to a wall. We supply a free safety wall anchor with all furniture sold
and we recommend these are used to prevent your product tipping. The fixing
device provided should fit most wall types, but please note that different wall
materials may require different fixing devices from those supplied.
screw
x1
Y
wall
screw
x1
