SHD-EB
Budget Hopper Dryer
Date: Nov. , 2020
Version: Ver.C

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SHD-EB and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Shini SHD-EB

Summary of Contents for Shini SHD-EB

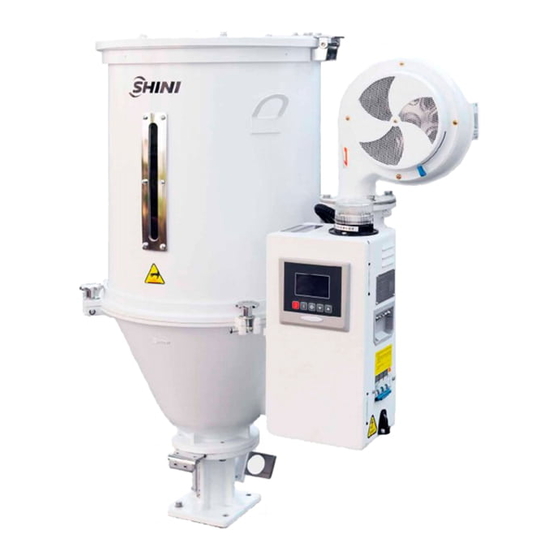

  • Page 1 SHD-EB Budget Hopper Dryer Date: Nov. , 2020 Version: Ver.C...

  • Page 3: Table Of Contents

    Content General Description ..................5 1.1 Coding Principle ..................6 1.2 Feature ....................6 1.3 Technical Specifications ................. 8 1.3.1 External Dimensions ..............8 1.3.2 Specification .................. 8 1.4 Safety Regulations ................11 1.4.1 Safety Signs and Labels .............. 11 1.4.2 Signs and Labels .................
  • Page 4 4.1 Control Panel ..................22 4.1.1 Panel Operation ................22 4.1.2 Setting Temperature ..............23 4.1.3 Panel Operation ................24 4.1.4 Timer Setting ................24 Maintenance and Repair ................27 5.1 Blower ....................27 Troubleshooting ..................27 Table Index Table 1-1: Specification ..................8 Table 1-2: Dryer Drying Capacity(kg/hr)(Selection Guide) ........

  • Page 5: General Description

    1. General Description Please read through this operation manual before using the machine to prevent damages of the machine or personal injuries. SHD-12-EB 5(27)

  • Page 6: Coding Principle

    Ÿ All material contact surfaces are made of stainless steel to eliminate material contamination. Ÿ Hopper separated from its base, ensuring convenient cleaning. Ÿ Adopts heat-insulated blower to prolong blower lifespan. Ÿ SHD-EB series has standard timer Ÿ SHD-EB series of blowers equip with overheat protectors 6(27)
  • Page 7 Chapter 5, which contains service instructions intended for service engineers. Other chapters contain instructions for the daily operator. Any modifications of the machine must be approved by SHINI in order to avoid personal injury and damage to machine. We shall not be liable for any damage caused by unauthorized change of the machine.

  • Page 8: Technical Specifications

    1.3 Technical Specifications 1.3.1 External Dimensions Picture 1-1: External Dimensions 1.3.2 Specification Table 1-1: Specification SHD-12- SHD-25- SHD-50- SHD-75- SHD-100- SHD-150- SHD-200- SHD-300- SHD-400- Model Ver. Drying 2.2/3* 3/3.3* 3.9/4.2* 4.2/4.8* 6/6.6* 6.6/7.2* 8.4/9.6* Heater(kW) Blower(W) Loading Capacity(kg) H(mm) 1015 1145 1445 1330...
  • Page 9 W1（mm) φA（mm) φB（mm) Weight（kg) Notes:1) Test condition of conveying capacity: plastic material of bulk density 0.65kg/L, dia. 3-5mm/0.12~0.2inch. 2) “*”Optional high-temp model that up to max. 180℃. 3) Power supply：SHD-12-50EB is 1/PE/220V, 75-400EB is 3/N/PE/400V. 9(27)
  • Page 10 Table 1-2: Dryer Drying Capacity(kg/hr)(Selection Guide) Material 50-E 75-E 100- 150- 200- 300- 400- Drying Drying Mode Time Temp. SHD- Polystyre (PS) 0.75hrs 80℃ Polyethylen 0.75hrs 80℃ (PE) Poly propyrene 0.75hrs 80℃ (PP) Polystyrene 1hrs 80℃ (EPR) 1hrs 80℃ 4hrs 75℃...

  • Page 11: Safety Regulations

    1.4 Safety Regulations 1.4.1 Safety Signs and Labels Note! Electrical installation should be done by qualified electrician only. Before connecting to AC Power Source, turn power switch to OFF position. While AC power source is connected, make sure specifications and overload protection rating of the power switch are suitable and reliable.

  • Page 12: Signs And Labels

    Shini (including employees and agents). Shini is exempted from liability for any costs, fees, claims and losses caused by reasons below: 1. Any careless or man-made installations, operation and maintenances upon machines without referring to the Manual prior to machine using.

  • Page 13: Structure Characteristics And Working Principle

    2. Structure Characteristics and Working Principle 2.1 Working Principle Picture 2-1: Working Principle In the drying process, hot air with constant temperature is blown by a blower into a two-layer insulated hopper to dry the materials. Moisture will be separated out and taken away by hot air, thus to gain a satisfied drying effect.

  • Page 14: Options

    2.2 Options 2.2.1 Magnetic Base Model Applied to MB-12EB SHD-12EB MB-50 SHD-25EB~75EB MB-100EB SHD-100EB~150EB MB-200EB SHD-200EB~300EB MB-400EB SHD-400EB Made of aluminum with built-in hopper magnet, can effectively separate metal scraps out to avoid material contamination. 2.2.2 Hot Air Recycler Filtering Inlet Air Flange of Barrel...

  • Page 15: Exhaust Air Filter

    2.2.3 Exhaust Air Filter Model Applicable Models ADC-1 SHD-12EB ADC-2EB SHD-25EB ~150EB ADC-3EB SHD-200EB ~400EB It can effectively filter the dust air discharged from the dryer to prevent air pollution, and the efficiency can reach 99%. 2.2.4 Blower Inlet Filter Model Filter Dia.
  • Page 16 Applied to SHD-12EB~75EB SHD-100EB~400EB Model -20-38S -160-38S -20-50S -160-50S -20-38D -160-38D -20-50D -160-50D Notes：1) Install pneumatic shut off valve (add “V” at the end of the model code). 2) Change into stainless steel material (add “S” at the end of the model code). 3) Stainless steel polishing (add “P”...

  • Page 17: Installation And Debugging

    3. Installation and Debugging Notes for Installation and Positioning： 1) Machine just can be mounted in vertical position. Make sure there’s no pipe, fixed structure or other objects above the installing location and around the machine which may block machine’s installation, hit objects or injure human person.

  • Page 18: Connecting The Power Source

    3.2 Connecting the Power Source Open the control box and connect the power source in accordance with wiring diagram. Notice should be taken concerning if the power voltage is in compliance with the required specifications, also if the switch and load are proper and safe. Notes: Before connecting, the main switch and heat switch should be off.

  • Page 19: Installation Of The Options

    3.4 Installation of the Options 3.4.1 Installation of Air-Exhaust Filter If the materials contain dust or to avoid the dust-contain air exhausted by dryer polluting the workshop’s environment. Option with air-exhaust filter ADC can filter the exhausted air from the dryer. ADC can reach filter efficiency of 99%. ADC are installed on air-exhaust elbow of the dryer.

  • Page 20: Suction Box Installation

    3.4.2 Suction Box Installation Picture 3-4: European Suction Box When installing the SHD-EB on the floor stand, the suction box SBU is required,so conveyor can take away the dried plastics. The installation of European suction box and shut-off suction box is simple, which are mounted at the hopper bottom, and it must lock corresponding holes with screws.

  • Page 21: Blower Inlet Filter Installation

    3.4.3 Blower Inlet Filter Installation When dryers in the dust-contain environment or hot air requires high cleanliness, it can option with AIF blower inlet filter. Picture 3-6: AIF Blower Inlet Filter AIF is installed at the blower air inlet. Firstly, loosen the set screw at the blower air inlet to remove the air screen;...

  • Page 22: Operation Guide

    4. Operation Guide 4.1 Control Panel Picture 4-1: Control Panel 4.1.1 Panel Operation 1) Turn on the blower switch; 2) Turn on heater switch, and start heating operation; 22(27)

  • Page 23: Setting Temperature

    4.1.2 Setting Temperature Picture 4-2: Temperature Controller As figures on above picture 4-2： 1. Temperature difference display area. It is used to display difference value between actual temp. and set temp. For example, if actual temperature is lower than set temp., the pointer turns left (negative direction), otherwise, it turns right( positive direction).

  • Page 24: Panel Operation

    AL: light on means over temperature alarm output; TC B： light on means temperature sensor line breaks Notes: Drying temperature setting of plastic material must be in accordance with related drying temperature. If temperature gets too high, it would make material blocked and potentially cause serious accident.

  • Page 25: Picture 4-4: Timer

    Picture 4-4: Timer 1. Adjust current time: press and hold " CLOCK", and then press" DAY " to adjust current week; press " HOUR " to adjust current hour; press " MIN" to adjust current minute, and then release " CLOCK", and the current time is set. 2.
  • Page 26 9. MO （Monday） 10. TU （Tuesday） 11. WE （Wednesday） 12. TH （Thursday） 13. FR （Friday） 14. SA （Saturday） 15. SU （Sunday） l Hour timing: continue to press " HOUR" to adjust the timing hour. l Minute timing: continue to press " MIN" to adjust the timing minute. At this time, press "...

  • Page 27: Maintenance And Repair

    5. Maintenance and Repair 5.1 Blower 1) Clean the blower regularly (especially the air inlet path). 2) Eliminate the fan's dirt regularly to avoid the damage to the blower. Attention！ No need for regular inspection because all the electrical parts in the control unit are fixed tightly! 6.
