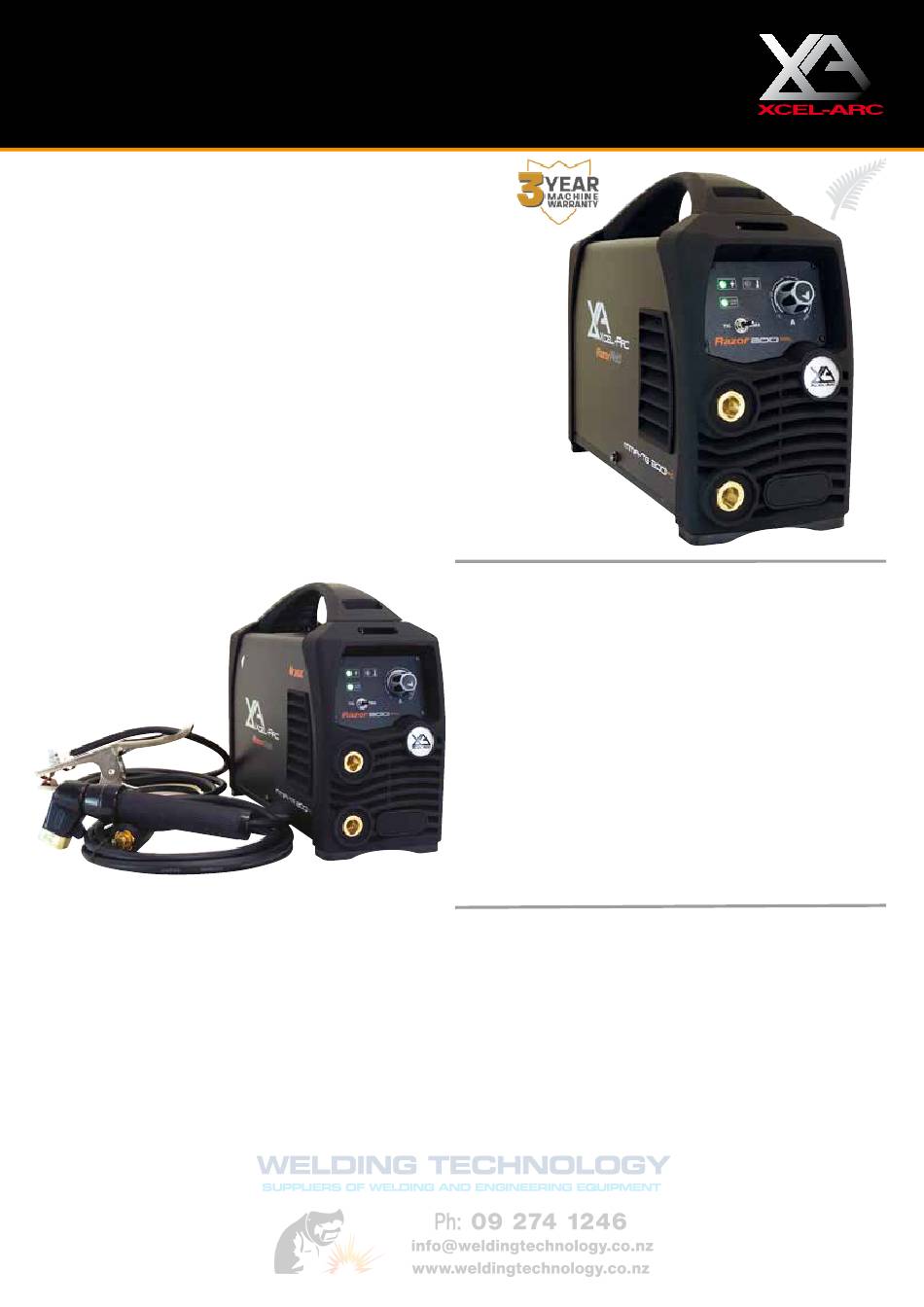

RAZORWELD ARC200
MMA/TIG - 200 Amp DC Inverter Welder
Welds: Steels, Stainless, Cast Iron, Bronze, Copper
RAZORWELD ARC200 RAZORWELD ARC200
230V Single Phase 200 Amp DC Welder MMA/TIG
Selectable VRD - Stick Electrode, Lift Arc DC TIG
Industrial Rated with PFC (Power Factor Correction)
Features
New 40KHz inverter frequency technology
■
PFC
(Power Factor Correction)
■
MMA function
(Stick electrode)
■
- Selectable On/Off VRD
(Voltage Reduction Device)
- Hot start
(improves electrode starting)
- Arc Force
(boosts current to prevent electrode extinguishing)
- Excellent arc stability with all electrodes
DC-TIG
■
- Lift Arc ignition
(prevents tungsten sticking during arc ignition)
- Ultra smooth DC-TIG welding current
Thermal overload protection
■
IP21S rating for environmental/safety protection
■
Generator compatible
(recommend 9.0 kVA minimum)
■
Auto-compensation for voltage fluctuation
■
Minimal harmonic feedback to power grid
■
XA-ARC200RZ-K
Standard Package
Optional machine accessories available - refer page 16
Overview
The RazorWeld ARC200 from Xcel-Arc is a high quality inverter welding machine with a primary function of DC-MMA (Stick) welding and
additional DC-TIG function incorporating Lift-Arc Ignition. Produced using the very latest generation 40KHz IGBT inverter technology;
this machine offers outstanding arc characteristics whilst also being highly reliable, robust and incredibly portable. The DC-MMA welding
function delivers a smooth and incredibly stable arc, producing high quality welds including cast Iron, stainless and low hydrogen. With the
inclusion of Hot-Start and Arc Force coupled with Selectable VRD and Power Factor Correction (PFC), this machine is perfectly suited to
site work and is an ideal choice for the welding professional or contractor. Connection of the optional XA17V Tig Torch provides intermediate
level DC-TIG welding of steel, stainless steel, bronze and copper. The Lift-Arc TIG function is superb and delivers perfect arc ignition every
time without any sticking or inclusion of the tungsten electrode to the work piece and a remarkably smooth stable arc produces high quality
TIG welds. The ARC200RZ is an exceptional machine suitable for a wide range of applications including medium to heavy industrial use, site
welding, farming and general repair and maintenance work. The ARC200RZ gives you great portability with the power to get the job done.
Built to our specification and manufactured in compliance to AS/NZ60974-1.
Product Code: XA-ARC200RZ-K
Standard Package includes: ARC200RZ Machine, Earth Lead & Arc Lead 25mm x 4m
for maximum electrical efficiency
Razor Weld
Technical Data
Power Supply
Rated Input Power
I i eff
as per AS/NZ60974-1
Rated Output
Welding Current Range
No Load Voltage
(OCV)
Duty Cycle @ 40ºC
as per AS/NZ60974-1
Duty Cycle @ 25ºC
(approximate)
Power Factor
Protection Class
Insulation Class
Dimensions
(LxWxH)
Weight
Certification Approval
8
240V 1-Phase ±15%
9.0 kVA
15 Amps
200 Amps / 28V MMA
200 Amps / 18V TIG
10 ~ 200 Amps
VRD On 9V - Off 77V
25% @ 200 Amps MMA
25% @ 200 Amps TIG
40% @ 200 Amps MMA
40% @ 200Amps TIG
0.99
IP21S
F
365 x 135 x 227mm
6.5 Kg
AS/NZ60974-1
