MR500 View

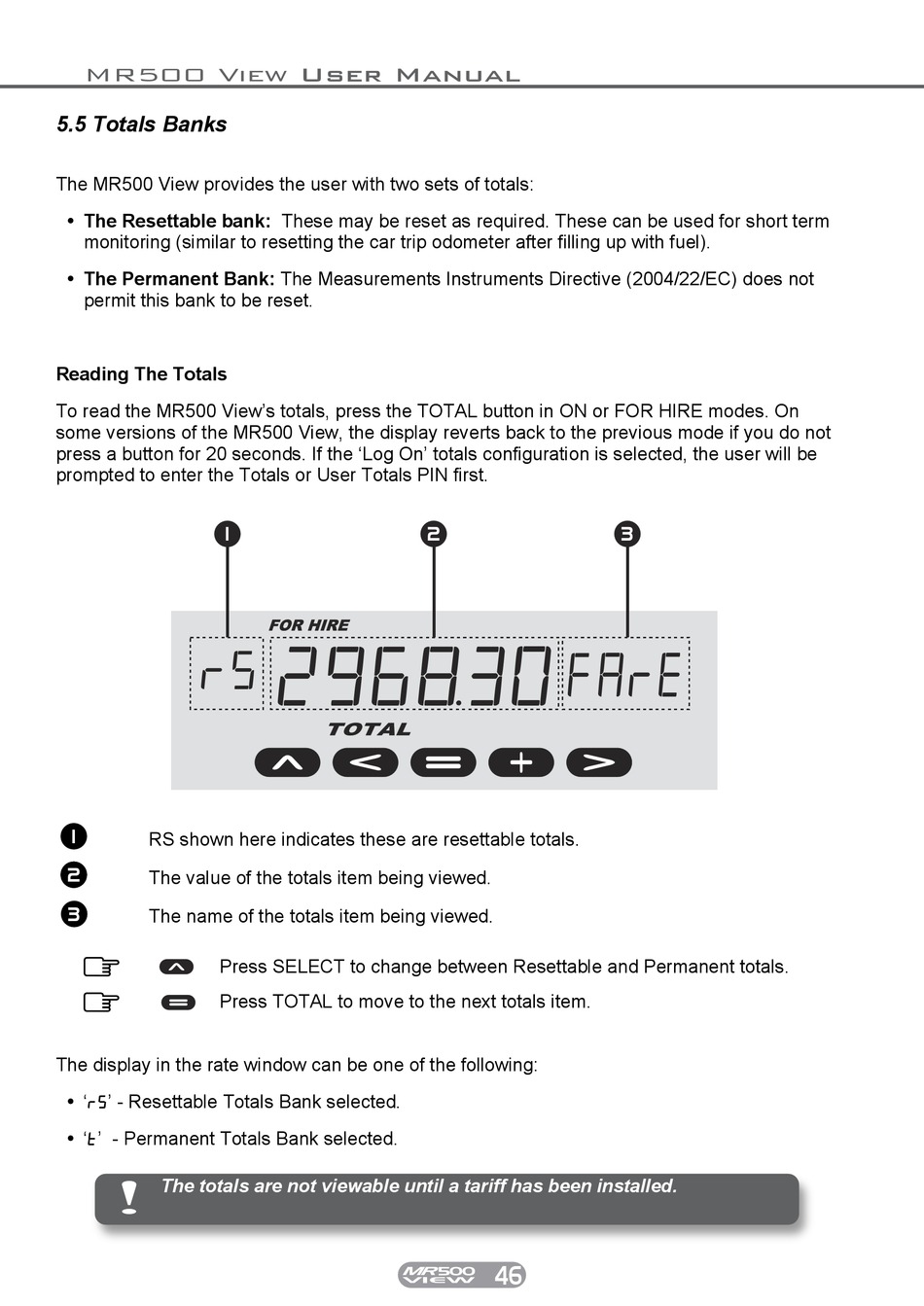

5.5 Totals Banks

The MR500 View provides the user with two sets of totals:
Ÿ The Resettable bank: These may be reset as required. These can be used for short term
monitoring (similar to resetting the car trip odometer after filling up with fuel).
Ÿ The Permanent Bank: The Measurements Instruments Directive (2004/22/EC) does not
permit this bank to be reset.
Reading The Totals
To read the MR500 View's totals, press the TOTAL button in ON or FOR HIRE modes. On
some versions of the MR500 View, the display reverts back to the previous mode if you do not
press a button for 20 seconds. If the 'Log On' totals configuration is selected, the user will be
prompted to enter the Totals or User Totals PIN first.
1
rs
1
RS shown here indicates these are resettable totals.
1 2
The value of the totals item being viewed.
3
The name of the totals item being viewed.
Press SELECT to change between Resettable and Permanent totals.
Press TOTAL to move to the next totals item.
The display in the rate window can be one of the following:
Ÿ '
' - Resettable Totals Bank selected.
Ÿ ' ' - Permanent Totals Bank selected.
The totals are not viewable until a tariff has been installed.
2
296*30
3
fare
46
