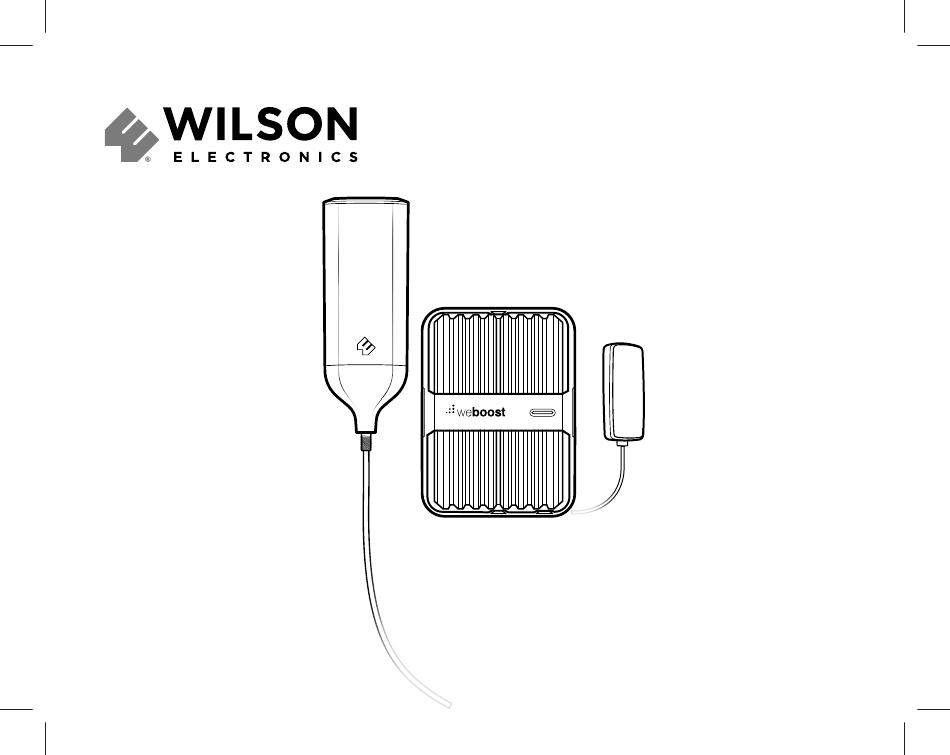

- Page 1 Installation Guide ® Drive Reach OTR Cell Signal Booster BU-GDE000286-DriveReachOTR-001-091820.indd 1 BU-GDE000286-DriveReachOTR-001-091820.indd 1 9/18/2020 11:34:55 AM 9/18/2020 11:34:55 AM...
-
Page 2: Table Of Contents
Index Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 STEP 1 Select Mounting Location &... -
Page 3: Package Contents
Package Contents Drive Reach Outside Inside Power 13 in . & 18 in . Signal Booster Antenna Antenna Supply Mast Extensions, & Bracket Side-Exit Adapter, Spring, 3-Way Mount & Thread Lock Packs BU-GDE000286-DriveReachOTR-001-091820.indd 1 BU-GDE000286-DriveReachOTR-001-091820.indd 1 9/18/2020 11:34:55 AM 9/18/2020 11:34:55 AM... -
Page 4: Step 1 Select Mounting Location & Assemble The Outside Antenna
STEP 1 Select Mounting Location & Assemble the antenna Outside Antenna Once you have determined the best location for the antenna, insert cable 13 in. 13 in. 13 in. through mast(s) then through Side mast mast mast Exit Adpater . run cable cable from through Mast... - Page 5 (STEP 1 cont .) Use thread locker (provided) to thread Drive OTR Antenna points and screw into place . NOTE: Be sure the antenna is the correct height before applying thread locker . NOTE: When adding the side exit adapter hold the antenna vertically and screw the adapter from the bottom up .
-
Page 6: Step 2 Mounting The Outside Antenna
STEP 2 Mounting the Outside Antenna Mast Extension If the vehicle does not have built-in mounting points, a three-way mount is included that will work on vehicles with mirror rails . Side Exit NOTE: The cable is strong enough that Adapter it may be shut in most vehicle doors add thread... - Page 7 (STEP 2 cont .) Mast Extension If installing with the Spring, disassemble Side Exit the 3-Way Mount and use disc washer Adapter and nut (provided) to mount the antenna with Spring as shown . add thread locker Spring Remove nut & shake proof washer add thread locker...
-
Page 8: Step 3 Mounting The Inside Antenna
STEP 3 Mounting the Inside Antenna Identify a place to mount the In-Vehicle Antenna, either on the side of the seat or on the dash and mount . The location should be at least 18 inches but no more than 36 inches from where the cellular device will be used . -
Page 9: Step 4 Connect Coax Cables To Booster
STEP 4 Connect Coax Cables to Booster Connect the cable from the Outside Antenna from Outside Antenna to the port labeled “Outside Antenna” on the booster and connect the cable from the In-Vehicle Antenna to the port labeled “Inside Antenna” on the booster . from Inside Antenna BU-GDE000286-DriveReachOTR-001-091820.indd 7 BU-GDE000286-DriveReachOTR-001-091820.indd 7... -
Page 10: Step 5 Connect Power Supply To Booster
STEP 5 Connect Power Supply to Booster Connect the power supply cord to the end of the booster, labeled “ ”, then plug the power adapter into vehicle’s 12V DC power supply . The Drive Reach will automatically power on when plugged in . If your Drive Reach is working correctly, the light on the power adapter will be red, and the light on the booster connect Power... -
Page 11: Booster Light Patterns
Booster Light Patterns SOLID GREEN This indicates that your Drive Reach Booster is functioning properly and there are no issues with installation . SOLID RED Band has shutoff . This is due to a feedback loop condition called oscillation . This is a built in safety feature that causes a band to shut off to prevent harmful interference with a nearby cell tower . - Page 12 (Booster Light Patterns cont .) NOTE: The Signal Booster can be reset by disconnecting and reconnecting the power supply . After troubleshooting you must initiate a new power cycle by disconnecting and then reconnecting power to the Booster . BU-GDE000286-DriveReachOTR-001-091820.indd 10 BU-GDE000286-DriveReachOTR-001-091820.indd 10 9/18/2020 11:34:57 AM 9/18/2020 11:34:57 AM...
-
Page 13: Troubleshooting
Troubleshooting FIXING BLINKING OR RED LIGHT ISSUES This section is only applicable if the booster is red or blinking red and you are not experiencing the desired signal boost. 1 Unplug the Booster’s power supply . 2 Relocate the inside and outside antenna further from each other . The objective is to increase the separation distance between them, so that they will not create this feedback condition discussed before . - Page 14 (Troubleshooting cont .) FREQUENTLY ASKED QUESTIONS How can I contact customer support? Customer Support can be reached Monday thru Friday by calling 866 .294 . 1 660, or through our support site at support . w eboost .com . Why do I need to create distance between the booster and the antenna? Antennas connected to a booster create spheres of signal .
-
Page 15: Safety Guidelines
Safety Guidelines Use only the power supply provided in this package . Use of a non-weBoost product may damage your equipment . Connecting this signal booster directly to the cell phone with use of an adapter will damage the cell phone . RF Safety Warning: Any antenna used with this device must be located at least 8 inches from all persons . - Page 16 (Safety Guidelines cont .) FOR MORE INFORMATION ON REGISTERING YOUR SIGNAL BOOSTER WITH YOUR WIRELESS PROVIDER, PLEASE SEE BELOW: Sprint: http://www .sprint .com/en/legal/signal-boosters .html?=search:booster T-Mobile/MetroPCS: https://support . t -mobile .com/docs/DOC-9827 Verizon Wireless: http://www . v erizonwireless .com/wcms/consumer/register-signal-booster .html AT&T: https://securec45 .securewebsession .com/attsignalbooster .com/ U.S.
- Page 17 Antenna Info The following accessories are certified by the FCC to be used with the Drive Reach Booster . MOBILE INSIDE ANTENNA KIT OPTIONS Kit # Coax Type Ln(ft) Antenna Type Ω 314419 LMR-100 4G Slim Low Profile SMB MOBILE OUTSIDE ANTENNA KIT OPTIONS Kit # Coax Type Ln(ft)
-
Page 18: Specifications
Specifications Drive Reach Cell Signal Booster 460054 Model PWO460054 Connectors SMB-Jack 50 Ohms Antenna Impedence Frequency 698-716 MHz, 728-756 MHz, 777-787 MHz, 824-894 MHz, 1850-1995 MHz, 1710-1755/2110-2155 MHz Power output for single cell 700 MHz B12/17 700 MHz B13 800 MHz B5... -
Page 19: Warranty
Returned Material Authorization (RMA) number supplied by Wilson Electronics . Wilson Electronics shall, at its option, either repair or replace the product . Wilson Electronics will pay for delivery of the repaired or replaced product back to the original consumer if located within the continental U .S . - Page 20 866 .294 . 1 660 www .wilsonelectronics .com support@wilsonelectronics .com Copyright © 2020 Wilson Electronics . All rights reserved . Wilson Electronics products covered by U .S . patent(s) and pending application(s) For patents go to: weboost .com/us/patents NOT AFFILIATED WITH WILSON ANTENNA GDE000286_Rev01_09 .
