1. INSTALLATION OF OPTIMA TOUCH
1.1 Installation
Installation of the control panel The control panel is
designed to be mounted onto a flat wall.
1.2 Mounting
Find the location on the wall where you will fix the control
panel and mark the screw-hole positions. A min. of four
screws must be used to fix the display fixture to the wall.
Drilling of holes, hole size and the corresponding screws for
fixing the panel depends on the wall material.

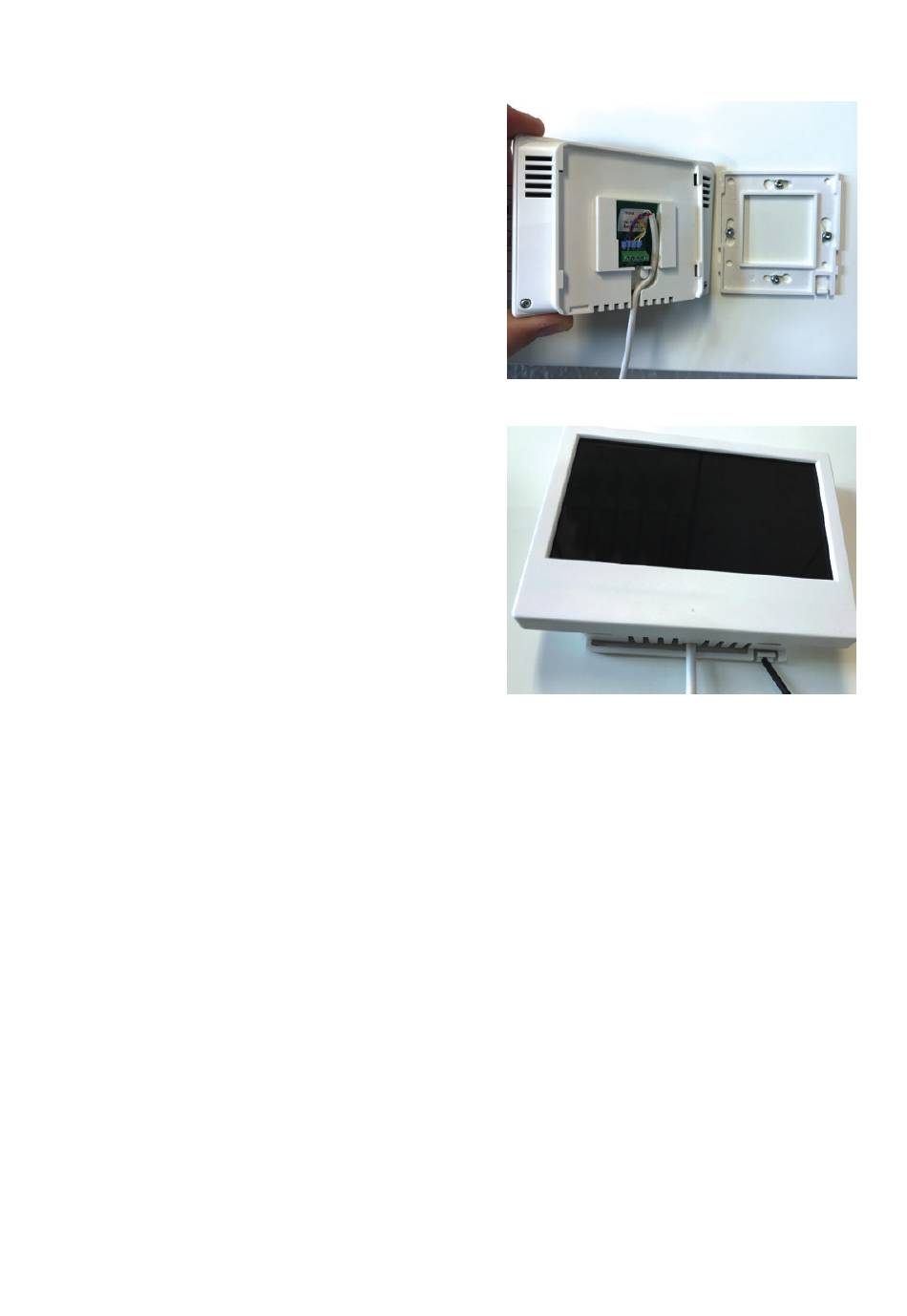

When the display fixture has been securely installed to the
wall. Take the Optima Touch display which comes with a
preinstalled wire connected and clip the display carefully
on the fixture. Ensure that the cable is carefully positioned
as indicated on the picture before fitting the display.
NOTE: if the preinstalled 1,8 meter length is not sufficient,
it is possible to replace this with a 4 wire twisted pairs 0,25
mm2 cable with a maximum length of 50 meters.
To remove the display , carefully push the plastic clip
(locking mechanism) as indicated on the picture.
For additional information on connecting the control panel
to Optima 270 – please refer to the electrical diagram in
the installation manual
