Summary of Contents for Genvex GE ENERGY 3

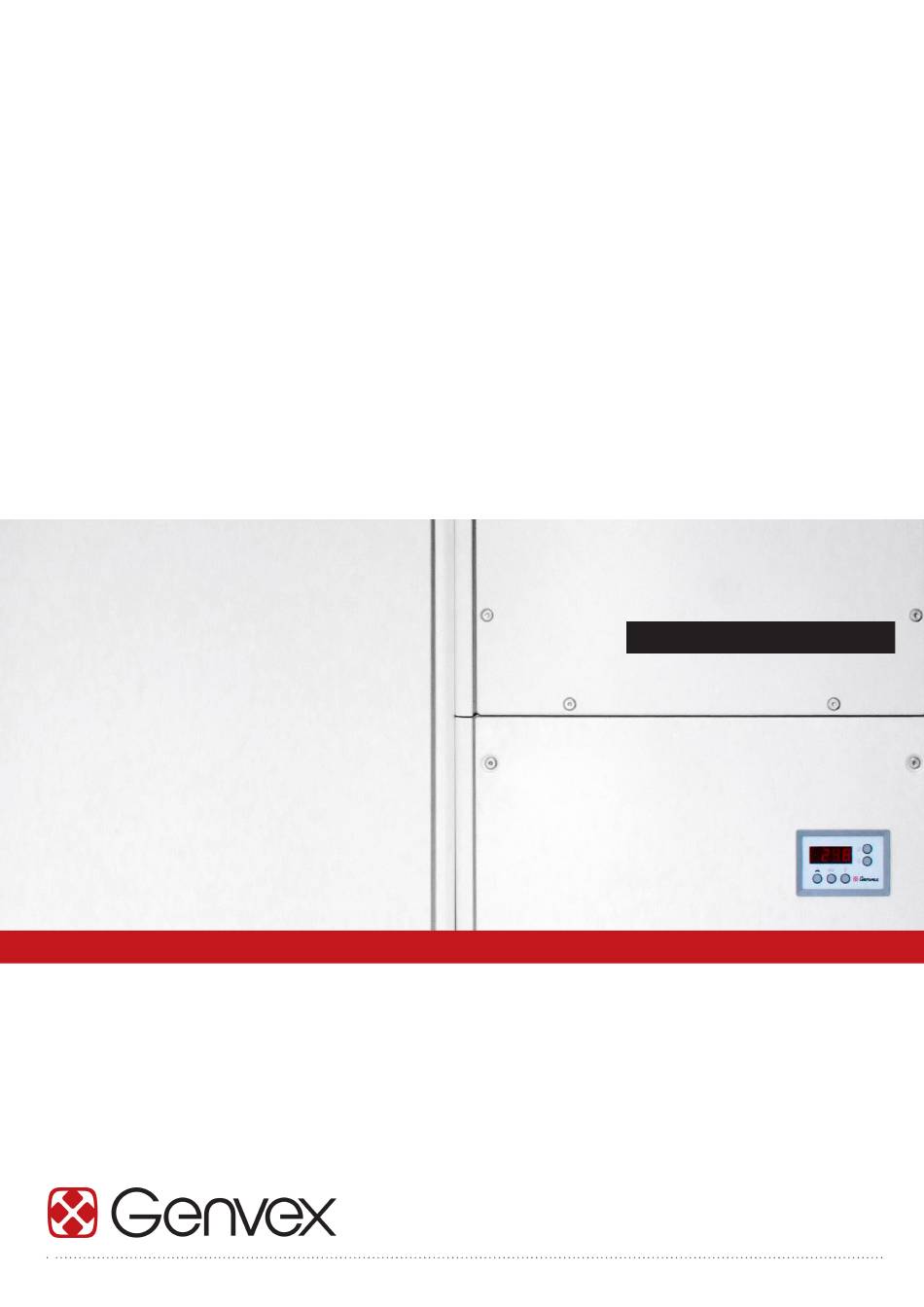

- Page 1 GE ENERGY 1 / 2 / 3 GES ENERGY 1 PASSIVE VENTILATION WITH WIRING DIAGRAM FOR OPTIMA 100 AND OPTIMA 250 INSTALLATION MANUAL UK / Version 21.08.2014 Genvex A/S • Sverigesvej 6 • DK-6100 Haderslev • Tel.: +45 73 53 27 00 • salg@genvex.dk • genvex.dk...
-
Page 2: Table Of Contents
Table of contents GE Energy 1 - Installation........4 GE Energy 2 - Installation........5 GE Energy 3 - Installation........5 GES Energy 1 - Installation ........5 Duct connection ............. 6 Duct system ............6 Condensate drain ..........7 Insulation of ducts in cold loft spaces .... - Page 3 6) If freezing of the water trap may occur, it is which have nothing to do with the GENVEX unit. IMPORTANT IMPORTANT...
-
Page 4: Ge Energy 1 - Installation
GE Energy 1 - Installation GE Energy 1 The GE Energy 1 is available in a right-hand version (as Dimensions in mm shown). For a mirror image unit, the front and rear panels may be removed, the back panel mounted on the front and the unit rotated 180°. -
Page 5: Ge Energy 3 - Installation
GE Energy 3 - Installation GE Energy 3 The GE Energy 3 is supplied in a right-hand version (as Dimensions in mm shown) or left-hand version (mirror image), in which the fresh air exchanges places with the extract air and the supply air with the escaping air. -
Page 6: Duct Connection
Duct connection All duct connections display a yellow sticker indicating the Friskluft type of ventilation channel to be connected. Incomming Air Frischluft Connect the supply air: Duct system from the unit to the supply outlet in the living Afkast Exhaust Air room. -
Page 7: Condensate Drain
Bottom Back Bagside Bund Genvex recommends as follows: Supply and extract ducts: To minimise heat losses from the duct system in cold loft spaces, the supply and extract ducts must be insulated with a minimum of 100 mm insulation. If insulation form... -
Page 8: Insulation Of Ducts In Heated Spaces
Insulation of ducts in heated spaces Genvex recommends as follows: Supply and extract ducts: In warm loft spaces the supply and extract channels must be insulated with 50 mm insulation. Supply and extract air ducts led through heated spaces in dwellings do not require insulation. -
Page 9: Electrical Installation
To start up the unit before adjustment, do as follows: Before starting up the unit: 1: Check that the Genvex unit is correctly mounted and that all ducts are insulated as required. 2: Check that hatches can be opened so that service and maintenance on the unit can be carried out. -
Page 10: Adjustment And Maintainance
Service If you are unable to maintain your unit yourself, you can sign a service agreement with the Genvex service Careful handling of the plates is required. department. If any faults arise in the unit, contact the They have sharp edges and must not be Genvex service department. -
Page 11: Troubleshooting
The installer from whom you have bought the system or As an additional security there is a built-in thermal cut-out, the Genvex service department (+45 7353 2765). which disengages if the temperature exceeds 110 °C. Re- engaging must be done manually. -
Page 12: Pcb And Wiring Diagram Optima 100 Design
PCB ES951 and Wiring Diagram for Optima 100 Design ES951 L1 = Hygrostat Genvex Mains Hygrostat 1x230VAC, 50Hz Potentialfree MAX Fuse 10A L2 = T4 Sensor exhaust air Contact Must be connected to earth T9 Sensor heater/preheater Must be used... - Page 13 PCB ES960 for Optima 250 Design ...
-
Page 14: Pcb And Wiring Diagram Optima 250 Design
Wiring Diagram Optima 250 Design with ES960 PCB ... -
Page 15: Eu-Declaration Of Conformity - Ge Energy
Subject to Technical Modifications of GE Energy 1, 2 and 3/GES Energy 1... -
Page 16: Eu-Declaration Of Conformity - Ges Energy 1
Subject to Technical Modifications of GE Energy 1, 2 and 3/GES Energy 1... - Page 17 Advanced controls ensure that as little energy as possible is used for simplest installation. reaching an optimum level of comfort. Genvex A/S • Sverigesvej 6 • DK-6100 Haderslev • Tel.: +45 73 53 27 00 • salg@genvex.dk • genvex.dk...
