OPERATING
INSTRUCTIONS
OPTIMA 270
THE AIR WE BREATHE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OPTIMA 270 and is the answer not in the manual?

Questions and answers

Related Manuals for Genvex OPTIMA 270

Summary of Contents for Genvex OPTIMA 270

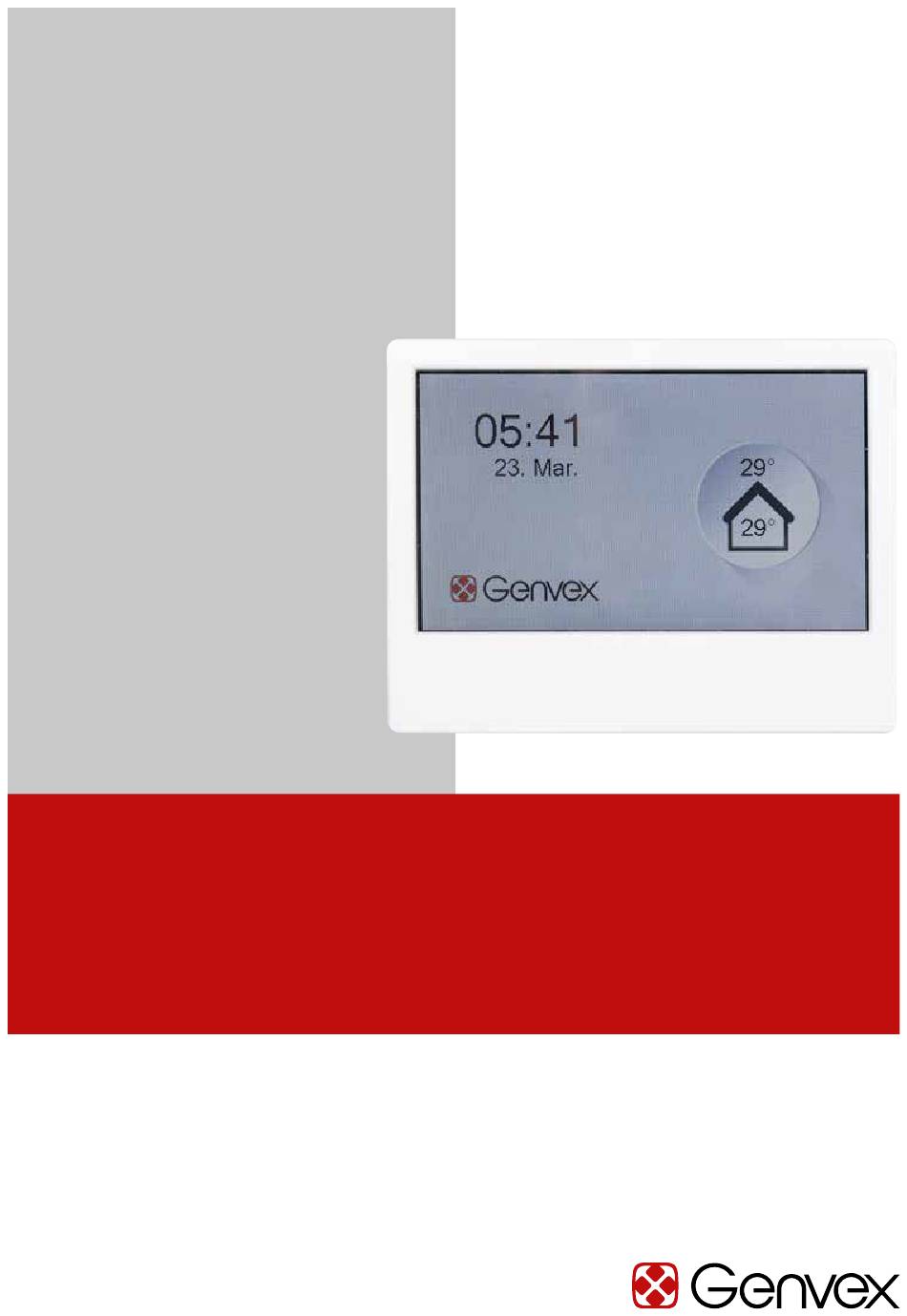

  • Page 1 OPERATING INSTRUCTIONS OPTIMA 270 THE AIR WE BREATHE...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS 1. Installation .....................................3 2. Programming the Optima 270 control unit .......................5 3. Displays ....................................6 4. Start ......................................8 5. Control unit menu ................................9 6. Control unit settings ...............................10 7. Further explanations of humidity and district heating control ..............21 8.

  • Page 3: Installation

    Euronorm box. To remove the control unit, click off the plastic cover and remove the screws. For further information about connecting the control panel to the Optima 270, refer to the electrical diagram in the installation manual.
  • Page 4 50 metres. To remove the display, gently press the plastic clip (locking mechanism) as shown in the picture. For further information about connecting the control panel to the Optima 270, refer to the electrical diagram in the installation manual.

  • Page 5: Programming The Optima 270 Control Unit

    Genvex ventilation system will continue to operate according to the new set parameters. 2.1.2 Use the Genvex PC tool to adjust the Optima 270 parameters. Connect a laptop to the IO interface via the Optima Basic or Touch display and use the PC as an...

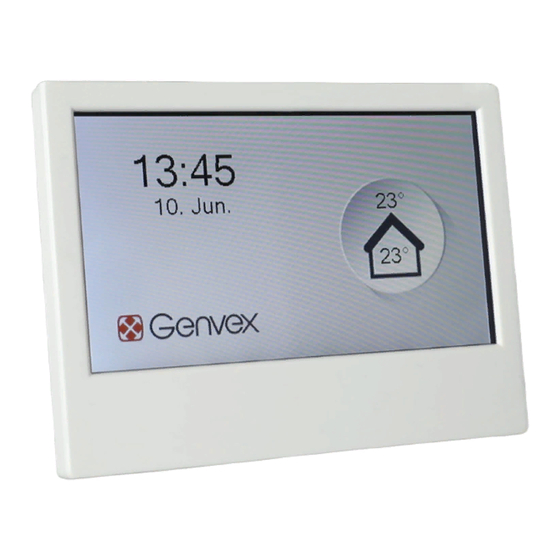

  • Page 6: Displays

    • Press and hold for 10 seconds to clear any errors and reboot the system *Micro USB interface for programming Optima 270 parameters via PC. Indicators, LED lights Button C: • When the LED light is on, the function is activated/on •...
  • Page 7 70% isopropyl alcohol. At the bottom of the display: *Micro USB interface for programming the Optima 270 control unit's parameters via PC. *micro SD card: card reader for firmware update of controller and display...

  • Page 8: Start

    The following information will be displayed during the Depends on the screen saver settings in D – Display menu. initial startup of the control unit for the Optima 270 The display will revert to the screen saver after 2 minutes.

  • Page 9: Control Unit Menu

    5. CONTROL UNIT MENU 5.1 Structure, user and service menu in Optima Touch The structure of the user and service menu in the Optima Touch display is divided into the following sections: A – User: main user settings B – Calendar: calendar schedules for changing fan speeds and temperature settings C –...

  • Page 10: Control Unit Settings

    6. CONTROL UNIT SETTINGS Menu Description Factory setting (max./ min. values) A1 – Post-heating If a post-heating surface is fitted in the system, you can choose A1: Off whether the heater should be activated. If the setting is set to OFF, the (On/Off) heater will not turn on even when required.
  • Page 11 EA1 – Save settings settings Saves the settings from the Optima270 controller to the display. EA2 – Load settings Loads settings stored in EA1 and transfers data to a new Optima 270 PCB. EB – Fan level EB1 – Level 1 Supply Air EB1: 30% Level 1 is the lowest speed, and is usually used when no one is home.
  • Page 12 Menu Description Factory setting (max./ min. values) EB – Fan level EB4 – Level 4 Supply Air is typically configured at 100% airflow for EB4: 100% rapid air exchange throughout the house. (0–100%) Remember that a higher air exchange rate increases energy consumption.
  • Page 13 Menu Description Factory setting (max./ min. values) EC – Regulator Vent. Reduc. = The fan speed for supply air is gradually reduced to keep the temperature sensor in the exhaust (T4) at the EC2 setpoint. Rotor Reduc. = Rotary heat exchanger speed is gradually reduced to keep the exhaust temperature sensor (T4) at the EC2 setpoint.
  • Page 14 Menu Description Factory setting (max./ min. values) EC – Regulator 6 The relay will be on when terminal L1 is shorted/activated (e.g. by connecting a kitchen cooker hood to the ventilation unit). This function can be used to activate a damper, which reduces the airflow to the rest of the house and focuses the exhaust air through the hood.
  • Page 15 Menu Description Factory setting (max./ min. values) EC – Regulator EC13 – Output H3 option EC13: Preheat H3 Operating modes (Preheat / Post- Preheat = R1 released for operation as preheater (activated via EC1) heating / Always on) Post-heat = R1 released for operation as post-heating surface (activated via A1) Always on = R1 is switched on as operating relay, independent of EC1 and A1...
  • Page 16 Menu Description Factory setting (max./ min. values) ED – Electric ED9 – Post-heating reg. ED9: 40 sec. heating The post-heating surface function works as follows: E.g. necessary (10–120 sec.) output 50% and cycle = 60 sec. means that the control unit turns on the post-heating surface for 30 seconds and turns it off for 30 seconds.
  • Page 17 Menu Description Factory setting (max./ min. values) EE – Bypass EE3 – Forced speed EE3: 0% In this menu, the desired forced, stepped fan speeds can be selected (0–100%) when the bypass opens for night cooling and when the setpoint in EE4 is exceeded.
  • Page 18 Menu Description Factory setting (max./ min. values) EG – Humidity EG4 – Humidity reg. frequency EG4: 10 minutes control Setting the desired frequency for how often the fan speed (1–60 min) can be changed. The function is defined as 1% per unit of time. When humidity control is activated, the current humidity is continuously measured via the integrated humidity sensor in the ventilation system, located in the exhaust air duct.
  • Page 19 Menu Description Factory setting (max./ min. values) EJ – Fire control EJ1 – Number of fire dampers EJ1: 0 Setpoint for the number of fire dampers connected to the system that (0–4) should be monitored. 0 = Fire control system inactive 1-4 = Number of dampers connected EJ2 –...
  • Page 20 Menu Description Factory setting (max./ min. values) EK – District heating EK6 – Max. flow temperature EK6: 45°C control The supply temperature will be limited to a maximum of 45°C if (20–65°C) underfloor heating is chosen in EK1. The supply temperature will be limited to 90°C if radiator heating is selected in EK1.

  • Page 21: Further Explanations Of Humidity And District Heating Control

    7. FURTHER EXPLANATIONS OF HUMIDITY AND DISTRICT HEATING CONTROL 7.1 Explanation of humidity control Example 1: At an outdoor air temperature of 10°C, the RH control aims for 53% humidity, as Setting range EG1 measured in the exhaust air. and EG2 Example 2: At an outdoor air temperature of 20°C, the RH control aims for 60% humidity, as...
  • Page 22 7.3 Schedule for set points Optima 270 Main menu/submenu Factory settings Setting range Form for user settings A – User A1 – Post-heating On – Off A2 – Humidity control On – Off A3 – Boost time 30 mins 1 – 120 min A4 –...
  • Page 23 Optima 270 Main menu/submenu Factory settings Setting range Form for user settings EC – Regulator EC1 – Frost protection Off / T3 Outdoor air / T4 Exhaust / Vent. Reduc. / Rotor Reduc. / Vent.+Rotor EC2 – Frost reduction 0.0°C -10°C to +10°C...
  • Page 24 Optima 270 Main menu/submenu Factory settings Setting range Form for user settings EH – Rotor EH1 – Speed (rpm) 10 rpm 0 – 25 rpm EH2 – Rotor stop °C 2°C 0 – 10°C EH3 – Rotor max. defrost time 30 mins 1 –...

  • Page 25: Maintenance

    – it is recommended to close all recommended. supply air and exhaust air valves. Recommended filters to use: Original Genvex filters, Coarse/G4 = Standard filter (typically used on the exhaust side); ePM10/F5 = Fine filter; ePM1/F7 = Pollen filter (typically used on the outside air side).

  • Page 26: Troubleshooting

    9. TROUBLESHOOTING Cold supply air 9.1 Safety thermostat in electric heater (optional) Possible error If there is a fault on an electric heater, the safety • Clogged heat exchanger. thermostat will be disconnected. The heater is equipped • Defective exhaust fan. with overheating protection that automatically cuts the •...
  • Page 27 Rotary heat exchanger, operating status While the rotary heat exchanger is in operation, the following operation modes can be read on the control unit in the Info/Operation status menu: Rotor status = 0 (Rotary heat exchanger not activated in menu EC4) Rotor status = 1 (Rotor stopped due to temperature conditions, indoor/outdoor temperatures too close to each other)
  • Page 28 Please visit www.genvex.com to see a list of our distributors KVM-Genvex A/S • Sverigesvej 6 • DK-6100 Haderslev • Tel.: +45 73 53 27 00 • salgogsupport@genvex.dk • www.genvex.com...
