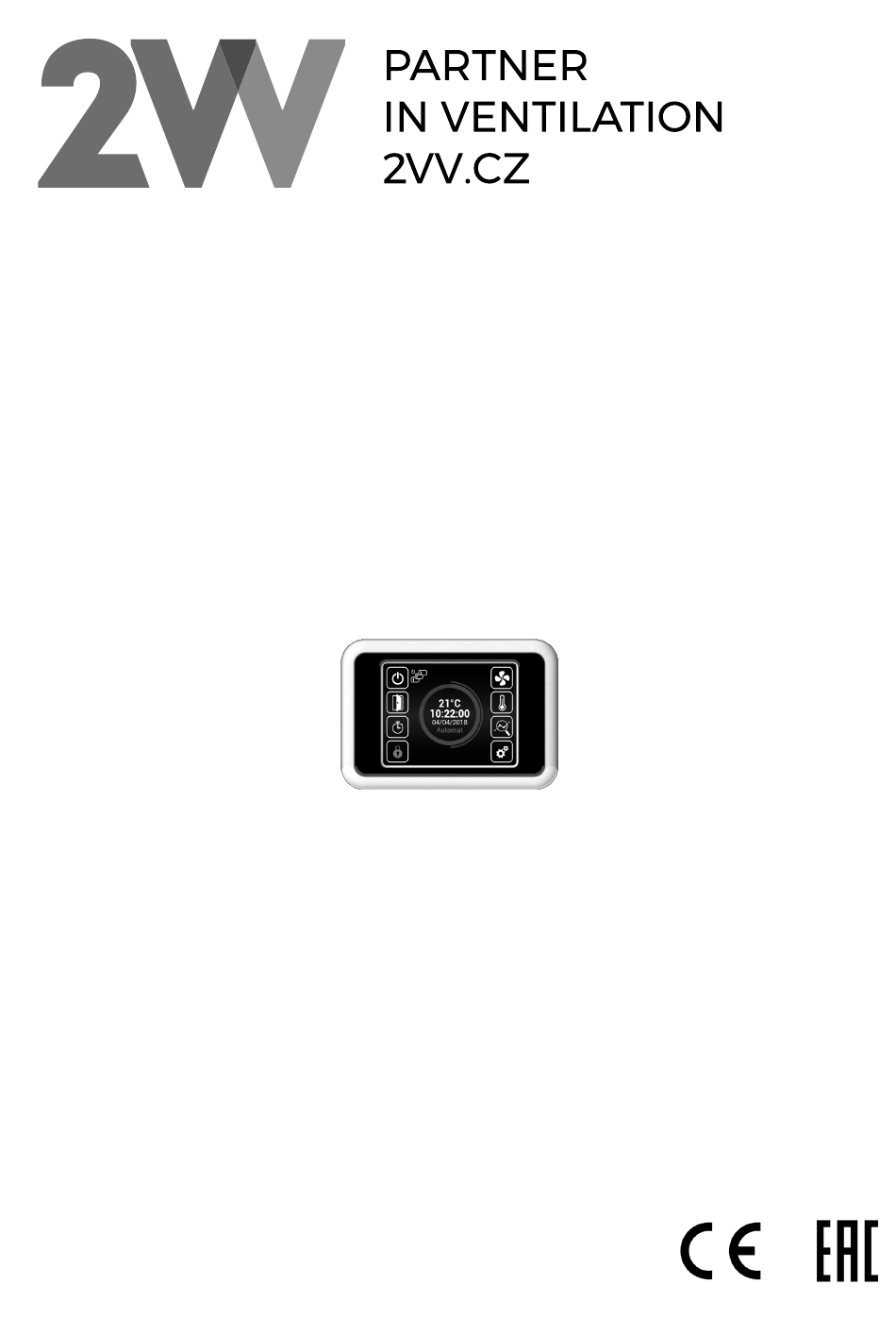

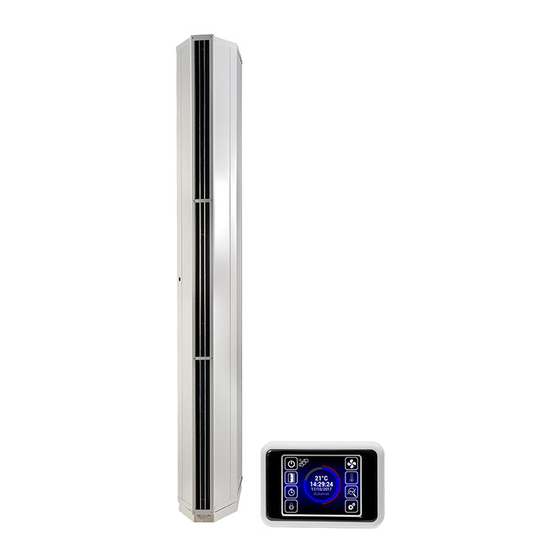

- Page 1 VENESSE COMFORT Installation and operation instructions...
- Page 2 All the packaging material is environmentally friendly and can be reused or recycled. Contribute actively to the protection of the environment and ensure the proper disposal or recycling of the packaging materials. 2VV.Creating innovative solutions for you and your business since 1995.
-
Page 3: Installation
1. INSTALLATION 1.1 CONNECTING THE CONTROL 2VV.Creating innovative solutions for you and your business since 1995. - Page 4 SENSOR Capteur CO /HR 230VAC 230VAC 230VAC 230VAC 2VV.Creating innovative solutions for you and your business since 1995. 230VAC U - power supply Смесительный узел – источник питания Смесительный узел – источник питания Смесительный узел – источник питания Układ mieszający zasilanie Układ mieszający zasilanie...
- Page 5 CMSI CMSI exterieure) exterieure) exterieure) Air Rejeté á distance á distance á distance 2VV.Creating innovative solutions for you and your business since 1995. 0 69 68 67 70 69 66 65 68 67 66 65 68 67 66 65 / RH/VOC...
- Page 6 ELECTRICAL SCHEMES CHAINING SLAVE SLAVE SLAVE MASTER no.1 no.2 no.10 Max 150m The total bus length of all chained curtains must not exceed 150m!!! SLAVE SLAVE SLAVE . 10 2VV.Creating innovative solutions for you and your business since 1995.
- Page 7 Copyright (c) 2005-2007 2VV s.r.o. undesirable thermal radiation. Všechna práva vyhrazena. The temperature sensor is recommended to be B01-0205-0110-00 installed in a cover box that should contain a small hole for better results. 2VV.Creating innovative solutions for you and your business since 1995.
-
Page 8: Connecting External Accessories
– Zone valve to regulate the water exchanger – Cable - Three-core cable with a cross-section of 1.5 mm , 230 V/ 50 Hz. CAUTION! Not included with the product. 2VV.Creating innovative solutions for you and your business since 1995. - Page 9 Is the supply of energy and heating water (if applicable) adequate? • Is the unit well closed? • Is the control module properly connected? • Does the unit have adequate protection according to the applicable standards? • 2VV.Creating innovative solutions for you and your business since 1995.
-
Page 10: Description Of Main Screen
Shows current temperature, air flow, heating level, time and control mode. The menus are described below Warning icon page 13 page 14 page 17 Device cooling Night Time mode reduction DOOR mode 2VV.Creating innovative solutions for you and your business since 1995. -
Page 11: Current Status
Air flow settings with clo- sed doors Display required air flow (three speeds) Display the current air flow status Reduce or increase opening’s air flow (with closed doors) Confirm + return 2VV.Creating innovative solutions for you and your business since 1995. -
Page 12: Date And Time Settings
To activate this function, you need to select the room thermostat sensor in menu 09. If this is not activated, the curtain will turn off immediately after the door is closed, but the desired temperature must be reached. 2VV.Creating innovative solutions for you and your business since 1995. - Page 13 Copy + return Annual mode START / STOP interval Tap to add a new time mode CANCEL Only MANUAL Required ventilation rate in annual mode Required heating rate in manual mode 2VV.Creating innovative solutions for you and your business since 1995.
-
Page 14: Service Menu
(ROOM,BMS) the fan works according to the set perfor- mance. if it is not selected (Auto speed control) Auto speed control: automatically regulates the fan‘s power on the basis of the difference temperature 2VV.Creating innovative solutions for you and your business since 1995. - Page 15 Setting reduced Activating function temperature range -1~-5°C In this menu, the reduction of temperature may be set only by five degrees at the set time compared to the set (required) temperature. 2VV.Creating innovative solutions for you and your business since 1995.
- Page 16 In this menu it is possible to specify which sensor will be active and the tempera- ture the shutter will attempt to reach after closing doors so as to balance temperature loss. After reaching the set temperature, the shutter transitions into the selected automatic/manual mode. 2VV.Creating innovative solutions for you and your business since 1995.
- Page 17 Not allowed = The SLAVE regulators are turned on/off simultaneously Allowed = The SLAVE regulators can be turned on/off individually form the main screen 2VV.Creating innovative solutions for you and your business since 1995.
-
Page 18: Menu - Factory Reset
Use this to reset the default values Press “FACTORY RESET” to reset Electric connection – Option 1: the default values of MENU 1616 Once completed, we recommend to turn the main supply off and on. 2VV.Creating innovative solutions for you and your business since 1995. - Page 19 ATTENTION! Switch off the main power supply before any intervention inside the unit. Let the unit cool! 2VV.Creating innovative solutions for you and your business since 1995.
-
Page 20: Maintenance
7.1 IF YOU ARE UNABLE TO REPAIR THE UNIT If you were unable to solve a problem, contact the supplier or the representative of 2VV. Warranty and post-warranty service are provided by the supplier or an authorised service included in the list available at the supplier’s. - Page 21 8. CONCLUSION 8. CONCLUSION In case of any doubt or query, do not hesitate to contact our sales or technical support departments. CONTACT Address: 2VV, s.r.o., Fáblovka 568, 533 52 Pardubice, Czech Republic Internet : http://www.2vv.cz/...
