ESSENSSE NEO
NO INSTALLASJON
EN INSTALLATION
VCES2-B... E3/E4/E5
4-118-0265
P01-0219-1217-NO

Advertisement

loading
Need help?

Need help?

Do you have a question about the ESSENSSE NEO VCES2-B...E3 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for 2VV ESSENSSE NEO VCES2-B...E3 Series

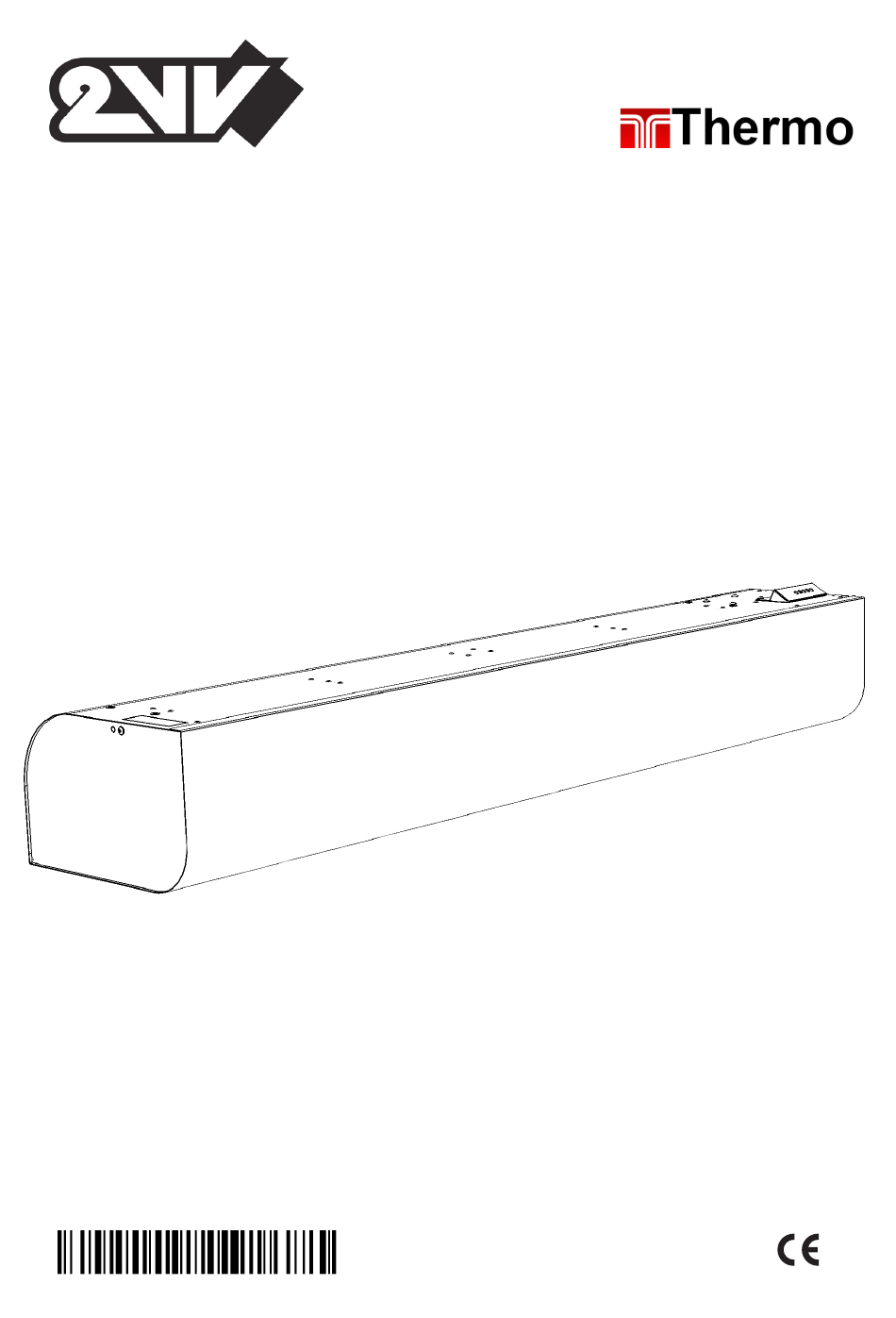

  • Page 1 ESSENSSE NEO NO INSTALLASJON EN INSTALLATION VCES2-B... E3/E4/E5 4-118-0265 P01-0219-1217-NO...
  • Page 2 Denne håndboken inneholder viktige instruksjoner for riktig installasjon av luftporten. Før du installerer, les nøye alle de følgende instruksjonene og følg dem. Produsenten forbeholder seg retten til å gjøre endringer, herunder teknisk dokumentasjon, uten varsel. Vennligst hold håndboken for senere bruk. Instruksjonene her er en del av produktet. Samsvarserklæring Detaljer finner du på www.2VV.cz...
  • Page 3 2. UTPAKKING 2.1 MOTTAKSKONTROLL 2.2 PAKKEINNHOLD VENNLIGST MERK Sjekk det pakkede produktet umiddelbart etter levering at den ikke er skadet. Informer transportørens representant i tilfelle av skader på de varer eller emballasje. Ingen fremtidige krav kan gjøres med mindre kravet settes fram i tide.
  • Page 4 4. DIMENSJONER TYPE (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) VCES2B-100 1190 VCES2B-150 1321 1600 VCES2B-200 1822 2100 VCES2B-250 2232 2510 Weight Type (kg) VCES2B-100-E3 25,5 VCES2B-150-E3 32,6 VCES2B-200-E3 39,8 VCES2B-250-E3 46,9 VCES2B-100-E4 26,5 VCES2B-150-E4 32,6 VCES2B-200-E4 39,8 VCES2B-200-E5 39,8...
  • Page 5 5. TEKNISKE PARAMETERE Motor Varmeelement utgang [kW]* Totalt forbruk Tilførsels- Δt [°C]* Type frekvens 1. trinn 2. trinn Strøm Effekt Spenning [Hz] 3x230 3x400 3x230 3x400 3x230 3x400 3x230 3x400 VCES2B-100-E3 14,2 14,26 VCES2B-100-E4 18,3 10,4 12,2 12,2 VCES2B-150-E3 14,4 8,86 VCES2B-150-E4 10,1...
  • Page 6 6. INSTALLASJON 6.1 DRIFTSVILKÅR: 6.3 AVSTANDER: Luftporten er konstruert for bruk i et innendørs, tørt miljø med omgivelsestemperaturer mellom 5°C til + 40°C, en maksimal relativ luftfuktighet på 80%, og for å transportere luftfri for grovt støv, fett, kjemiske røyk og annen forurensning.
  • Page 7 6. INSTALLASJON Mål monteringshullene og dimensjonene, og Før du installerer, kontroller at taket kan bære vekten av enheten. forbered festingen av luftporten . Installer i henhold til følgende figurer. (se Dimensjonsdiagram på side 4) Enheten (luftporten) må installeres slik at den nederste kanten er så...
  • Page 8 6. INSTALLASJON 6.4 Installasjon av kontrollmodulen Trekk til klemboksskruene ved hjelp av verktøyet. (detaljerte instruksjoner finner du i den respektive håndboken) For å ta av innsugsdekselet, gjør du følgende: 6.4.1. fjern dekselet festet med to M5 skruer på siden av motoren. 6.4.2 Installasjon av kontrollmodulen (Ikke inkludert)
  • Page 9 6. INSTALLASJON 2) Sett inn og koble kontrollerens modul til luftportens 6.5 Tilkobling av vannvarmer rekkeklemmer med det medfølgende verktøyet eller med (bare for luftgardin med LPHW ) Siko tang. 3) Trekk til alle skruene på modulen. det anbefales å koble fleksible slanger til vannvarmeren •...
  • Page 10 7. Å SLÅ PÅ FOR FØRSTE GANG FORSIKTIG! Før du starter opp enheten, kontroller at: Ingen verktøy eller andre gjenstander som kan skade • enheten, har blitt glemt i enheten Strøm og varmtvannforsyning er godt tilkoblet. • Enheten er ordentlig dekket. •...
  • Page 11: Rengjøring Og Vedlikehold

    RENGJØRING OG VEDLIKEHOLD 8.1 RENGJØRING FORSIKTIG! Hovedstrømforsyningen må slås av i tilfelle av inngrep i luftporten. Luftporten skal være kald! Det er forbudt å bruke komprimert luft, kjemikalier, oppløsningsmidler eller vann for rengjøring. • Rengjør sugedekselet og innsiden av enheten med en myk børste eller støvsuger. •...
  • Page 12 11. KONKLUSJON Etter installasjon av luftporter, les nøye Håndbok for passende regulator. Hvis du er i tvil eller spørsmål, ikke nøl med å ta kontakt med vår salgsavdeling eller vår tekniske support avdeling. KONTAKT Adresse: Thermo Byggvarme AS Eternitveien 45 N-3470 SLEMMESTAD thermo@thermo-varme.no www.thermo-varme.no...
  • Page 13 ESSENSSE NEO EN INSTALLATION VCES2-B... E3/E4/E5 4-118-0264 P01-0219-1217-EN...
  • Page 14: Before You Begin

    The manufacturer reserves the right to change, including the technical documentation, without prior notice. Keep the manual for future use. The instructions herein are part of the product Declaration of conformity Details can be found at www.2VV.cz...
  • Page 15: Main Components

    2. UNPACKING 2.1 CONTROL DE DELIVERY 2.2 CONTENTS PLEASE NOTE Check the product for damages immediately after delivery. In case of damage to the packaging, contact the carrier. Claims not filed in due time will be disregarded. Check that it corresponds to the type of product ordered. •...
  • Page 16 4. DIMENSIONS TYPE (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) VCES2B-100 1190 VCES2B-150 1321 1600 VCES2B-200 1822 2100 VCES2B-250 2232 2510 Weight Type (kg) VCES2B-100-E3 25,5 VCES2B-150-E3 32,6 VCES2B-200-E3 39,8 VCES2B-250-E3 46,9 VCES2B-100-E4 26,5 VCES2B-150-E4 32,6 VCES2B-200-E4 39,8 VCES2B-200-E5 39,8...
  • Page 17 5. TECHNICAL PARAMETERS Motor Heater output [kW]* Total consumption Supply Δt [°C]* Type frequency 1st step 2nd step Power Current Tension [Hz] 3x230 3x400 3x230 3x400 3x230 3x400 3x230 3x400 VCES2B-100-E3 14,2 14,26 VCES2B-100-E4 18,3 10,4 12,2 12,2 VCES2B-150-E3 14,4 8,86 VCES2B-150-E4 10,1...
  • Page 18: Installation

    6. INSTALLATION 6.1 OPERATIONAL CONDITIONS: 6.3 SUSPENSION: The air curtain is designed to be used in an indoor, dry envi- ronment, with ambient temperatures between 5°C to +40°C, a maximum relative humidity of 80%, and to transport air free of coarse dust, grease, chemical fumes and other contamina- tion.
  • Page 19 6. INSTALLATION Before installing, check that the ceiling can bear the weight of the unit. Install according to the following figures. Installation with threaded rods 1. Fastening to the ceiling YOU WILL NEED 10mm 4 6mm anchors (not included) 30mm 4 M6 threaded rods (not included) 8 M6 nuts (not included) M10 spanner (not included)
  • Page 20 6. INSTALLATION 6.4 Installing the control module (detailed Tighten the terminal box with the help of the tool instructions can be found in the respective manual) The following procedure requires the removal of the suction cover 6.4.1. remove the design sideboard fas- tened with two M5 screws on the side of the motor 6.4.2...
  • Page 21 6. INSTALLATION 6.5 Connecting the water heater 2) Insert and fasten the regulator’s terminal box to the cur- tain’s terminal box with the supplied tool or with Siko pliers. (only for the curtain with LPHW ) 3) Tighten all the screws of the module. 4) Fasten the regulator with a screw, see figure below flexible hoses are recommended to connect the water •...
  • Page 22 7. COMMISSIONING CAUTION! Before starting up the unit check that: No tools or other objects that may damage the unit have • been left inside. The power and heating water supply are well connected. • The unit is properly covered. •...
  • Page 23: Cleaning And Maintenance

    CLEANING AND MAINTENANCE 8.1 CLEANING ATTENTION! Before carrying out any work inside the air curtain, the main power input must be disconnected. The air curtain must be allowed to cool down! It is forbidden to use compressed air, aggressive chemicals, solvents or water for cleaning. •...
  • Page 24 10. WIRING DIAGRAM VCES2B100-E3AC-ZP-xxx BLUE BLACK WHITE YELLOW / GREEN VSES2B100-E4AC-ZP-xxx BLUE BLACK WHITE YELLOW / GREEN...
  • Page 25: Wiring Diagrams

    10. WIRING DIAGRAMS VCES2B150-E3AC-ZP-xxx BLUE BLACK WHITE YELLOW / GREEN...
  • Page 26 10. WIRING DIAGRAM VCES2B150-E4AC-ZP-xxx BLUE BLACK WHITE YELLOW / GREEN...
  • Page 27 10. WIRING DIAGRAMS VCES2B200-E3AC-ZP-xxx BLUE BLACK WHITE YELLOW / GREEN...
  • Page 28 10. WIRING DIAGRAM VCES2B200-E4AC-ZP-xxx BLUE BLACK WHITE YELLOW / GREEN...
  • Page 29 10. WIRING DIAGRAMS VCES2B200-E5AC-ZP-xxx BLUE BLACK WHITE YELLOW / GREEN...
  • Page 30 10. WIRING DIAGRAM VCES2B250-E3AC-ZP-xxx BLUE BLACK WHITE YELLOW / GREEN...
  • Page 31 11. CONCLUSION After installing the air curtain, read carefully the Manual for the appropriate regulator. In case of any doubt or query, do not hesitate to contact our sales or technical support departments. KONTAKT Adresse: Thermo Byggvarme AS Eternitveien 45 N-3470 SLEMMESTAD thermo@thermo-varme.no www.thermo-varme.no...
