NTI ENVIROMUX-AV-LC-E7 Installation Manual page 2

The sensor can be mounted at any depth, but for best performance position the sensor such that the opening in the sensor body
is in the center of the airflow chamber. The body of the sensor will allow for centering in a chamber as deep as 11 inches when
using the mounting adapter provided.
CONNECTION
Connect the cable on the ENVIROMUX-AV-LC to any available "RJ45 Sensor" port on the SYSTEM.
CONFIGURATION
Configure the SYSTEM to react to changes in the air velocity measured by the sensor, as desired. See example on page 3.

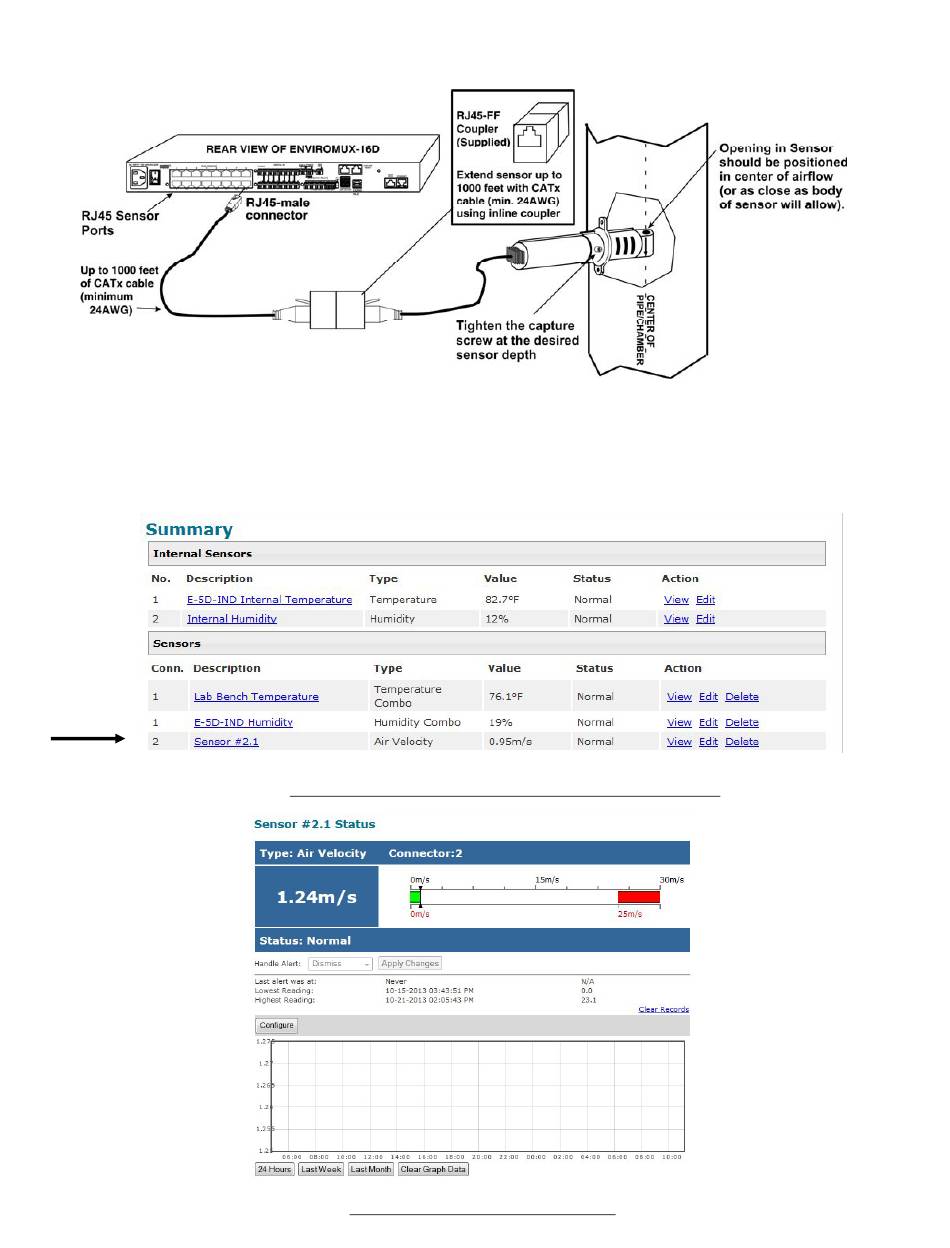

AIR VELOCITY SENSOR VIEWED ON SUMMARY PAGE
VIEW OF SENSOR STATUS PAGE
2
