Summary of Contents for ACTiSYS IR2000UL

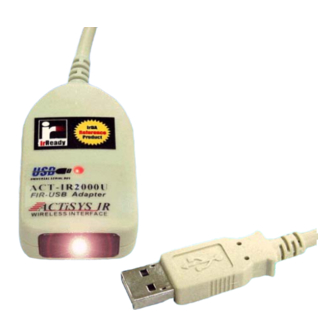

- Page 1 921 Corporate Way, Fremont, CA 94539, USA Tel: +1-510-490-8024 Web: http://www.actisys.com ACT-IR2000UL IrReady FIR USB Adapte User’s Manual July 6, 2007 © Copyright 2002-2007 ACTiSYS Corporation, All Rights Reserved Fax: +1-510-623-7268 E-mail: irda-info@actisys.com Ver. 1.6...
- Page 2 The Infrared Wireless Expert Please install driver BEFORE you plug in ACT-IR2000UL to computer USB port. FCC & VCCI Compliance Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
-
Page 3: Table Of Contents
WINDOWS XP NATIVE DRIVER REMOVE PROCEDURE... 12 DRIVER REMOVAL FOR WINDOWS XP/2000/ME/98SE... 15 TROUBLE SHOOTING... 17 PRECAUTIONS... 18 WARRANTY INFORMATION ... 19 CONTACT INFORMATION ... 20 © Copyright 2002-2007 ACTiSYS Corp. TABLE OF CONTENTS Page 3 of 20 ACT-IR2000UL User’s Manual Jul 6, 2007... -
Page 4: Revision History
The Infrared Wireless Expert Revision Date 1.5a 7/15/2003 1.5b 3/10/2004 7/06/2007 © Copyright 2002-2007 ACTiSYS Corp. REVISION HISTORY Revision History Comment Released Added warning message on Driver installation before plugging USB dongle Overall reformatted; Added feature & Chapter for Vista OS. -
Page 5: Introduction
FIR controller based FIR/SIR wireless peripheral through the PC USB (Universal Serial Bus) port. Taking advantage of the true plug-and-play nature and high bandwidth of USB, ACT-IR2000UL offers the easiest conversion of existing wireless to the legacy-free personal computer platform with the following features: No external driver required in Vista OS (Vista has Native driver for it), just plug &... -
Page 6: Driver Installation For Windows 2000/Me/98Se
The Infrared Wireless Expert 5 DRIVER INSTALLATION FOR WINDOWS 2000/ME/98SE Following are the instructions to properly install ACT-IR2000UL Series under, Windows 2000, Windows ME, and Windows 98SE. Important: Do use Win installation. 1. Insert the attached CD to CD-ROM, Windows will display install manual. - Page 7 In some operating systems, you may need to restart your computer. If so, click “Yes” to continue and the Installation is now complete. © Copyright 2002-2007 ACTiSYS Corp. Page 7 of 20 ACT-IR2000UL User’s Manual Jul 6, 2007 Version. 1.6...
-
Page 8: Driver Installation For Windows Xp
If you have plugged ACT-IR2000UL into USB port and mistakenly loaded WindowsXP Native Driver, please refer to the “IR2000UL WindowsXP Native Driver Remove Procedure” to remove the driver and follow the “ACTiSYS ACT-IR2000UL Series Driver Installation for Windows XP” to re-install the driver. - Page 9 The Infrared Wireless Expert 3. Click on Continue Anyway to continue 4. Insert the ACTiSYS ACT-IR2000UL Series into the USB Jack and click on Finish. © Copyright 2002-2007 ACTiSYS Corp. Page 9 of 20 ACT-IR2000UL User’s Manual Jul 6, 2007 Version. 1.6...
- Page 10 If you keep the CD in the CDROM, Windows XP will automatically search for all drivers compatible with ACT-IR2000UL. You will see a window with a choice of different drivers, please select the OEM one. If you install the driver to WindowsXP, the driver will automatically copy to Hard disk (C:\Windows).
-
Page 11: Driver Installation For Windows Vista
Click on Finish to complete the installation. 7 DRIVER INSTALLATION FOR WINDOWS VISTA Windows Vista has its native driver for ACT-IR2000UL. Only you need to do is Plug & Play. © Copyright 2002-2007 ACTiSYS Corp. Page 11 of 20 Jul 6, 2007... -
Page 12: Windows Xp Native Driver Remove Procedure
8 WINDOWS XP NATIVE DRIVER REMOVE PROCEDURE E DRIVER REMOVE PROCEDURE Your ACTiSYS ACT-IR2000UL is shipped with the latest driver on the CD. If you had already installed the Windows XP Native Driver, the following steps will remove the Native Driver and then you can follow the ACTiSYS ACT-IR2000UL Installation Instruction to install the latest driver. - Page 13 “SigmaTel USB-IrDA Dongle” 3. Right click on “SigmaTel USB-IrDA Dongle” Click on Uninstall. You will see a “Confirm Device Removal” Window then press OK. © Copyright 2002-2007 ACTiSYS Corp. Page 13 of 20 ACT-IR2000UL User’s Manual Jul 6, 2007 Version. 1.6...
- Page 14 Driver for the USB Infrared Adapter. Before the PC is restarting, you should connector from the PC’s USB Please refer to ACTiSYS ACT-IR2000UL Installation Instructions for Windows XP Home or Professional. © Copyright 2002-2007 ACTiSYS Corp. un-plug your ACT-IR2000UL USB port.
-
Page 15: Driver Removal For Windows Xp/2000/Me/98Se
The Infrared Wireless Expert 9 DRIVER REMOVAL FOR WINDOWS XP/2000/ME/98SE Following are the instructions to properly uninstall ACTiSYS ACT-IR2000UL Series under Windows XP, Windows 2000, Windows ME, and Windows 98SE. Important: Please keep the ACTiSYS ACT-IR2000UL Series plugging into the computer until prompted to remove it. - Page 16 ACTiSYS ACT-IR2000UL Adapter. 4. To complete the removal process, click the Finish button. Unplug the ACTiSYS ACT-IR2000UL Series from your USB jack. © Copyright 2002-2007 ACTiSYS Corp. Page 16 of 20 ACT-IR2000UL User’s Manual Jul 6, 2007 Version. 1.6...
-
Page 17: Trouble Shooting
The device work well Improper unplug and plug before. But after I unplug it procedure then plug, it does not work again. © Copyright 2002-2007 ACTiSYS Corp. Problem Solution 1. Properly align them again 2. Move one device to a proper distance. -
Page 18: Precautions
CAUTION: Never touch the pins of computer connection terminal. An Electro Static Discharge can damage the internal circuits. If this device requires any servicing, use only an ACTiSYS service dealer, an ACTiSYS approved service facility, or an ACTiSYS repair service. -
Page 19: Warranty Information
The Infrared Wireless Expert 12 WARRANTY INFORMATION ACTiSYS Corporation warrants the first end-user purchaser, for a period of 1 year from the date of purchase, that this wireless interface (The Product) will be free from defective workmanship and materials, and agrees that it will, at its option, either repair the defect or replace the defective Product or part thereof at no charge to the purchaser for parts or for labor. -
Page 20: Contact Information
ACT-IR2000UL User’s Manual The Infrared Wireless Expert 13 CONTACT INFORMATION ACTiSYS Corporation 921 Corporate Way, Fremont, CA 94539, USA TEL:+1-510-490-8024, FAX:+1-510-623-7268 E-Mail: irda-info@actisys.com Web: http://www.actisys.com © Copyright 2002-2007 ACTiSYS Corp. Page 20 of 20 Jul 6, 2007 Version. 1.6...
