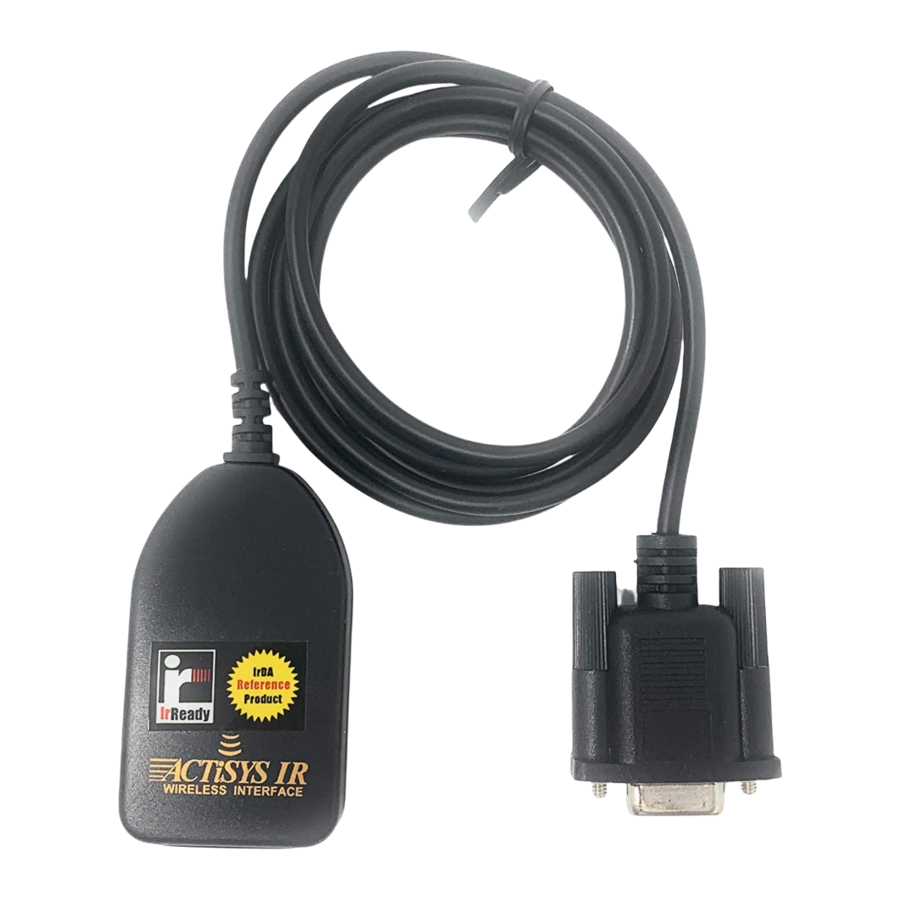

ACT-IR220L+/220L/200L
IrDA PC Adapter
User's Manual
July 8, 2008
Version 1.5.1.1
© Copyright 2001-2008 ACTiSYS Corporation
All Rights Reserved

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IrDA PC Adapter ACT-IR220L+/220L/200L and is the answer not in the manual?

Questions and answers

Related Manuals for ACTiSYS IrDA PC Adapter ACT-IR220L+/220L/200L

Summary of Contents for ACTiSYS IrDA PC Adapter ACT-IR220L+/220L/200L

  • Page 1 The Wireless Connectivity Expert 921 Corporate Way, Fremont, CA 94539, USA Tel: +1-510-490-8024 Fax: +1-510-623-7268 Web: http://www.actisys.com, E-mail: irda-info@actisys.com ACT-IR220L+/220L/200L IrDA PC Adapter User’s Manual July 8, 2008 Version 1.5.1.1 © Copyright 2001-2008 ACTiSYS Corporation All Rights Reserved...
  • Page 2 Please retain this information. Model Number Date of Purchase All indicated copyrights and trademarks in the following pages are copyrights and trademarks of their Respective corporations. © Copyright 2001-2008 ACTiSYS Corp. ACTiSYS Confidential Information The Wireless Connectivity Expert FCC Compliance Statement Serial Number...

  • Page 3: Table Of Contents

    12. WINDOWS XP UN-INSTALLATION GUIDE... 31 13. TROUBLE SHOOTING ... 34 14. SPECIFICATIONS... 35 15. WARRANTY INFOMATION... 36 16. CONTACT INFORMATION ... 37 © Copyright 2001-2008 ACTiSYS Corp. CTiSYS Confidential Information The Wireless Connectivity Expert TABLE OF CONTENTS Page 3 of 37 Serial-IR Dongle Installation Manual Jul.

  • Page 4: Revision History

    1.5.1.1 7/08/2008 ACTiSYS reserves the right to make changes without further notice to any products herein to improve reliability, function or design. ACTiSYS does not assume any liability arising out of the application or use of any product or circuit described herein.

  • Page 5: Overview

    A. Choose PNP & PCI from BIOS SETUP: PNP OS Installed: Resource Controlled by: B. Choose Integrated Peripherals from BIOS SETUP: Onboard UART2 Serial Port Onboard IR function: UART2: © Copyright 2001-2008 ACTiSYS Corp. ACTiSYS Confidential Information The Wireless Connectivity Expert Manual 2F8H/IRQ3 Disable Normal...

  • Page 6: Windows 98 Installation Guide

    C. Double Click My Computer on DeskTop. D. Double Click Control Panel. E. Double Click Add New Hardware on Control Panel Window. F. Click Next>. © Copyright 2001-2008 ACTiSYS Corp. ACTiSYS Confidential Information The Wireless Connectivity Expert Page 6 of 37 Serial-IR Dongle Installation Manual Jul.
  • Page 7 H. Select No, I want to select the hardware from a list. Then click Next>. Highlight Infrared Devices from the Hardware types list, then click Next>. © Copyright 2001-2008 ACTiSYS Corp. ACTiSYS Confidential Information The Wireless Connectivity Expert Page 7 of 37 Serial-IR Dongle Installation Manual Jul.
  • Page 8 [Infrared COM port or dongle]. From Infrared Devices list, choose (Generic Infrared Serial Port or dongle). Then click OK>. L. Choose ACTiSYS IR-200L if you are an ACT-IR 200L user. Then click Next. © Copyright 2001-2008 ACTiSYS Corp. ACTiSYS Confidential Information...
  • Page 9 M. Choose ACTiSYS IR-220L/ 220L+ if you are an ACT-IR-220L/ ACT-IR220L+ User. Then click Next>. N. Select COM port which is physically connected to the Dongle. In most cases, the Dongle is connected to COM2. Choose Communication Port (COM2) from the Port list, click Next>.

  • Page 10: Windows 98 Uninstallation Guide

    C. Double click System Icon. D. Click Device Manager tab. E. Highlight Infrared Communication Device from Infrared devices, and then click Remove. © Copyright 2001-2008 ACTiSYS Corp. ACTiSYS Confidential Information The Wireless Connectivity Expert Page 10 of 37 Serial-IR Dongle Installation Manual Jul.
  • Page 11 G. Highlight (Generic Infrared Serial Port or dongle), then click Remove. H. Click OK in the Confirm Device Removal. © Copyright 2001-2008 ACTiSYS Corp. ACTiSYS Confidential Information The Wireless Connectivity Expert Page 11 of 37 Serial-IR Dongle Installation Manual Jul.
  • Page 12 Serial-IR Dongle Installation Manual The Wireless Connectivity Expert Click Yes to restart your computer. © Copyright 2001-2008 ACTiSYS Corp. Page 12 of 37 Jul. 8, 2008 ACTiSYS Confidential Information Version 1.5.1.1...

  • Page 13: Windows 2000 Installation Guide

    C. Click on Control Panel. D. Double Click Add/Remove Hardware. E. On Welcome to the Add/Remove Hardware Wizard, click Next>. © Copyright 2001-2008 ACTiSYS Corp. ACTiSYS Confidential Information The Wireless Connectivity Expert Page 13 of 37 Serial-IR Dongle Installation Manual Jul.
  • Page 14 G. Highlight ADD a new drive then click Next>. H. Choose No, I want to select the hardware form a list then click Next> © Copyright 2001-2008 ACTiSYS Corp. ACTiSYS Confidential Information The Wireless Connectivity Expert Page 14 of 37 Serial-IR Dongle Installation Manual Jul.
  • Page 15 Select the Infrared device from the Hardware types. J. From Manufacturers list, choose ACTiSYS, from Infrared Device list, choose ACTiSYS IR-200L Serial Infrared Device for IR200L; click Next>. K. Choose ACTiSYS IR-220L Serial Infrared Device for IR220L, click Next>. © Copyright 2001-2008 ACTiSYS Corp.
  • Page 16 L. Choose ACTiSYS IR-220L+ Serial Infrared Device for IR220L+, click Next>. M. Click Next>. N. Choose COM2 in the most cases, then click Next>. O. Click Finish. © Copyright 2001-2008 ACTiSYS Corp. ACTiSYS Confidential Information The Wireless Connectivity Expert Page 16 of 37 Serial-IR Dongle Installation Manual Jul.

  • Page 17: Windows 2000 Unistallation Guide

    D. Click on Hardware tab, then click Device Manager button. E. Click on Infrared devices, then highlight ACTiSYS IR-220L+Serial Infrared Device. © Copyright 2001-2008 ACTiSYS Corp. ACTiSYS Confidential Information The Wireless Connectivity Expert Page 17 of 37 Serial-IR Dongle Installation Manual Jul.
  • Page 18 F. Click Action from the main and then click Uninstall. G. The device has then been uninstalled. You need to close device manager and restart your computer. © Copyright 2001-2008 ACTiSYS Corp. ACTiSYS Confidential Information The Wireless Connectivity Expert Page 18 of 37 Serial-IR Dongle Installation Manual Jul.

  • Page 19: Windows Me Installation Guide

    C. Double Click My Computer icon on DeskTop D. Double click Control Panel icon. E. Double click Add New Hardware icon. F. On the following boxes, click Next>. © Copyright 2001-2008 ACTiSYS Corp. ACTiSYS Confidential Information The Wireless Connectivity Expert Page 19 of 37 Serial-IR Dongle Installation Manual Jul.
  • Page 20 If you can not find Infrared device from Hardware types list, choose Other devices from the Hardware types list, then click Next >. Otherwise go to step P. © Copyright 2001-2008 ACTiSYS Corp. ACTiSYS Confidential Information The Wireless Connectivity Expert Page 20 of 37 Serial-IR Dongle Installation Manual Jul.
  • Page 21 ACT-IR200L or IR220L+ Infrared Wireless Interface, then click Next>. K. Click Finish. L. Double click Add New Hardware icon. © Copyright 2001-2008 ACTiSYS Corp. ACTiSYS Confidential Information The Wireless Connectivity Expert Page 21 of 37 Serial-IR Dongle Installation Manual Jul.
  • Page 22 M. Click Next>. N. Click Next>. O. Choose No. I want select the hardware from a list, then click Next>. © Copyright 2001-2008 ACTiSYS Corp. ACTiSYS Confidential Information The Wireless Connectivity Expert Page 22 of 37 Serial-IR Dongle Installation Manual Jul.
  • Page 23 Then click Next> Q. Click Next>. R. Select Generic Infrared Serial Port dongle from Infrared COM port of dongle. Then click OK. © Copyright 2001-2008 ACTiSYS Corp. ACTiSYS Confidential Information The Wireless Connectivity Expert Page 23 of 37 Serial-IR Dongle Installation Manual Jul.
  • Page 24 S. If your device is IR200L, choose ACTiSYS IR200L Serial Infrared Device, click Next>. T. If your device is physically connected to COM2, highlight Communications port (COM2), then click Next>. U. Select Use default ports, click Next>. © Copyright 2001-2008 ACTiSYS Corp.
  • Page 25 Serial-IR Dongle Installation Manual The Wireless Connectivity Expert V. Click Finish © Copyright 2001-2008 ACTiSYS Corp. Page 25 of 37 Jul. 8, 2008 ACTiSYS Confidential Information Version 1.5.1.1...

  • Page 26: Windows Me Uninstallation Guide

    (Generic Infrared Serial Port or dongle), then click Remove button. Click OK button. E. The device has been successfully uninstalled then. © Copyright 2001-2008 ACTiSYS Corp. ACTiSYS Confidential Information The Wireless Connectivity Expert Page 26 of 37 Serial-IR Dongle Installation Manual Jul.

  • Page 27: Windows Xp Installation Guide

    A. From Start menu, open Control Panel. B. Double click Add Hardware icon. C. Click Next> from Add Hardware Wizard. © Copyright 2001-2008 ACTiSYS Corp. ACTiSYS Confidential Information The Wireless Connectivity Expert Page 27 of 37 Serial-IR Dongle Installation Manual Jul.
  • Page 28 D. Choose Yes. I have already connected the hardware. Then click Next>. E. Wait processing F. Choose Add a new hardware device. Then click Next>. © Copyright 2001-2008 ACTiSYS Corp. ACTiSYS Confidential Information The Wireless Connectivity Expert Page 28 of 37 Serial-IR Dongle Installation Manual Jul.
  • Page 29 (Advanced). Then click Next>. H. Choose Infrared devices. Then click Next> Choose respective ACT model from Infrared Device. Then click Next> © Copyright 2001-2008 ACTiSYS Corp. ACTiSYS Confidential Information The Wireless Connectivity Expert Page 29 of 37 Serial-IR Dongle Installation Manual Jul.
  • Page 30 J. Click Next> K. Choose the Com port which the device physically connected. Click Next> L. Click Finish © Copyright 2001-2008 ACTiSYS Corp. ACTiSYS Confidential Information The Wireless Connectivity Expert Page 30 of 37 Serial-IR Dongle Installation Manual Jul. 8, 2008...

  • Page 31: Windows Xp Un-Installation Guide

    A. Highlight My Computer, then right click for quick menu. B. Select Properties. C. Click Device Manager from Hardware page. © Copyright 2001-2008 ACTiSYS Corp. ACTiSYS Confidential Information The Wireless Connectivity Expert Page 31 of 37 Serial-IR Dongle Installation Manual Jul.
  • Page 32 E. Click Uninstall from the quick menu. F. Click OK. You have successfully uninstalled the device on your system. © Copyright 2001-2008 ACTiSYS Corp. Page 32 of 37 Jul. 8, 2008 CTiSYS Confidential Information...
  • Page 33 Serial-IR Dongle Installation Manual The Wireless Connectivity Expert G. Click Yes to reboot your computer. © Copyright 2001-2008 ACTiSYS Corp. Page 33 of 37 Jul. 8, 2008 ACTiSYS Confidential Information Version 1.5.1.1...

  • Page 34: Trouble Shooting

    File Transfer between IR-equipped PDA and ACT-IR device-attached host computer stops before finishing up and an error message appears. © Copyright 2001-2008 ACTiSYS Corp. ACTiSYS Confidential Information The Wireless Connectivity Expert PROBLEM 1. The two IR devices are not aligned properly.

  • Page 35: Specifications

    Pin Assignments of Serial Interface DB9 female connector Name Receive Data Transmit Data Data Terminal Ready Signal Ground Request to send Clear to send © Copyright 2001-2008 ACTiSYS Corp. ACTiSYS Confidential Information The Wireless Connectivity Expert 11.05 in) IrDA-IR: None 8 bit 1 bit...

  • Page 36: Warranty Infomation

    In no event shall ACTiSYS Corporation be liable, or in any way responsible, for any damages or defects in the Product which were caused by repairs or attempted repairs performed by anyone other than ACTiSYS technician.

  • Page 37: Contact Information

    ACTiSYS Corporation 921 Corporate Way Fremont, CA 94539, USA TEL: +1-510-490-8024, FAX: +1-510-623-7268 E-Mail: irda-info@actisys.com Web: http://www.actisys.com © Copyright 2001-2008 ACTiSYS Corp. ACTiSYS Confidential Information The Wireless Connectivity Expert Page 37 of 37 Serial-IR Dongle Installation Manual Jul. 8, 2008...
