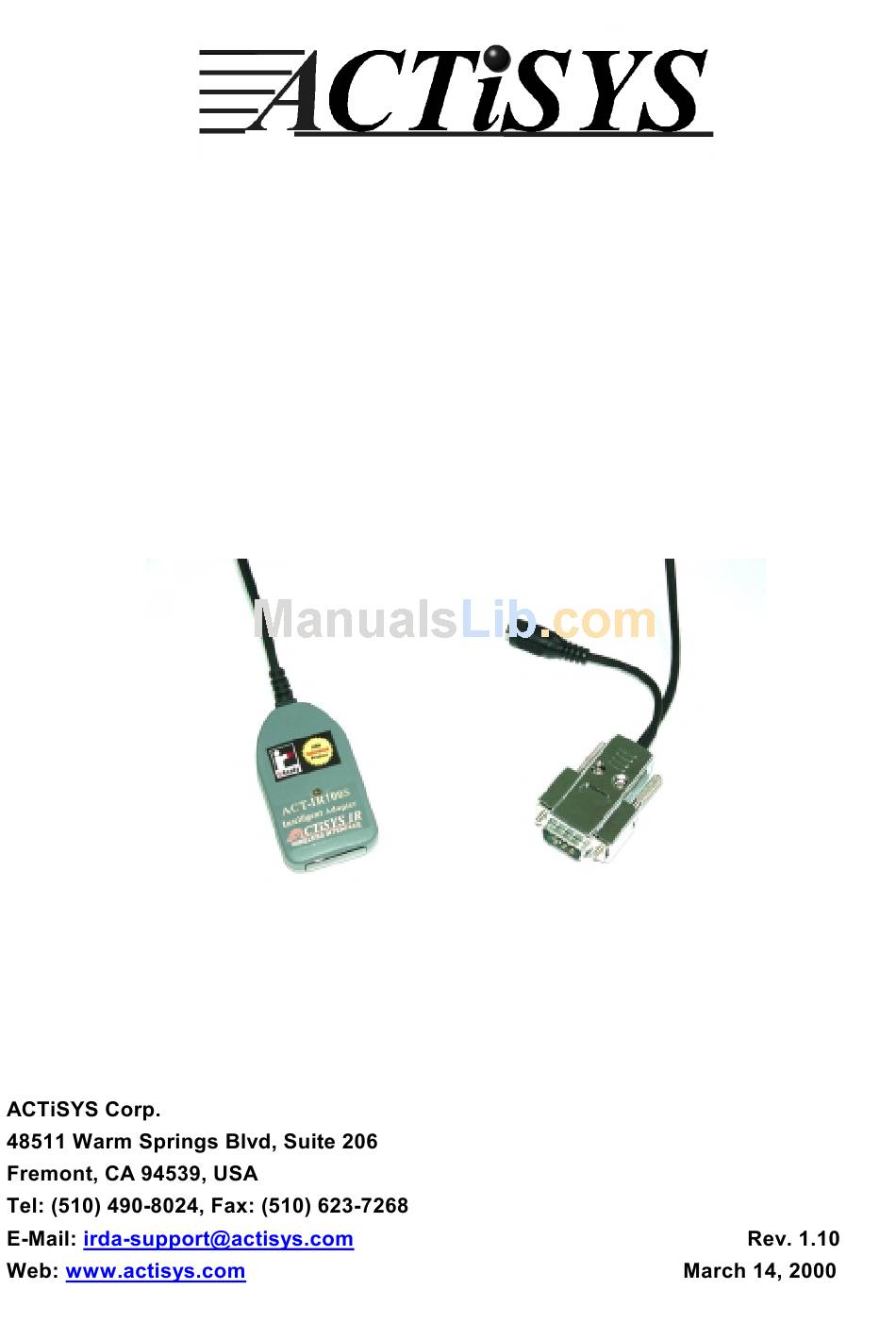

- Page 1 ...
- Page 2 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. WARNING-FCC Regulations state that any unauthorized changes or modifications to this equipment not expressly approved by the manufacturer could void the user authority to operate this equipment NOTE: This equipment has been tested and found to comply with the limits for Class B digital device,...
- Page 3 ...
- Page 4 !"Never touch the pins of computer connection terminal. The internal circuits can be damaged by a static electricity discharge. If this device requires any servicing, use only an ACTiSYS service dealer, an ACTiSYS approved service facility, or an ACTiSYS repair service.
- Page 5 Here the settings for the R11 ~ R18 are displayed. When power is thrown for any resistor besides R13~R15, they will be sampled at the time NMI is reinstated. After that, there will be no problems with operation even if the settings are changed; however the settings will become invalid. PCB bottom view Control Line Extension Mode (R16)
- Page 6 It is possible to select the primary channel mode, secondary channel mode, and the primary channel as well as the secondary channel according to the settings of R11 and R12. Operation mode primary channel secondary channel Primary / secondary channel ! "...
- Page 7 $% In order to confirm that the device is operating correctly there is an indicate function installed. By looking at the flash of the LED you can check the state of communication. There are 2 flashing speeds, during standby on the secondary channel there is no flashing. If the primary channel commences discovery, it will flash once every 3 seconds (for approx.
- Page 8 &' ( ● Serial Port: When connecting modems etc. to the Data Communication Equipment (DCE) side, connect the corresponding signal names of the modem and IR100S+. When connecting to PC’s to the Data Terminal Equipment (DTE) side use a cross connection for IR100S+ and the PC or Plotter/Printer(with RS232 port). Example Connection Reference #1: Modem (DCE) Connection IR100S+ I/F RD...
- Page 9 Example Connection Reference #2: PC Terminal (DTE) Connection IR100S+ I/F (RD) (SD) /DTR (ER) /DSR (DR) /RTS (RS) /CTS (CS) < Cross Cable > PC Terminal(DTE) : Data Receiving (RD) Only valid with received data when the DCD (CD) signal is on. : Data Transmission (SD) Valid with sending data when...
- Page 10 Product Name: ACT-IR100S Compatibility: Fully compatible with IrDA -1.0 Physical spec. and IrDA-1.0 protocol spec.: IrLAP, IrLMP, IAS, TinyTp, IrCOMM Specifications of IrDA-1.0 (SIR): Transmission Speed Communication Distance Radiating Angle Peak Wave Length of Radiated Light Specifications of RS-232 port:...
- Page 11 '( +(, PC#1: HW: x386 or better PC. ACTiSYS' IR2000B board (based on NS87108A) with IR2000L dongle, or ACT-IR220L Com-port Adapter, connected to COM1 or COM2. SW: WIN95/98, IrDA Driver for SIR (if using IR220L) or FIR (if using IR2000B) HyperTerminal, IR Monitor...
- Page 12 , -) ' ' "# + PC#1: Install IrDA Driver. The assigned IR virtual port must be COM4 or less, otherwise HyperTerminal will not be able to connect it IR Monitor: Speed limit = 115.2K or lower HyperTerminal: Connect Using ->...
- Page 13 Communicating with Name: ACTiSYS IR100S-115 (Nickname of 100s, might be different with different version) Description: Intelligent SIR Adapter Communication efficiency (…) Good at 115.2 Kbps (or 57.6 Kbps. Depends on the highest speed both sides can support) 5. Run HyperTerminal on PC#1 now. Set its properties according to the above configuration guide.
- Page 14 Figure A-3 Figure A-4...
- Page 15 Figure A-5 Figure A-6...
- Page 16 '( +(, HW: x386 or better PC. ACTiSYS IR2000B board (based on NS87108A) with IR2000L dongle, or ACT-IR220L Com-port Adapter, connected to COM1 or COM2. SW: WIN95/98, IrDA Driver for SIR (if using IR220L) or FIR (if using IR2000B)
- Page 17 & % % "# + Connect all devices as Fig B-1.
- Page 21 !"IrLAP, IrLMP, IAS and optional Tiny TP, IrCOMM, IrMC, IrTran-P, etc. !"For PDA, digital camera, handheld data terminal, palmtop computer, smart phone. !"Very tight code, modular design, easy porting and API interface, well supported. !"Small code size (20 - 40K bytes), well tested and inter-operate with all IrDA devices. II (A !"IrLAP, IrLMP, IAS and optional Tiny TP, IrCOMM, IrMC, IrTran-P, etc.
- Page 22 OTHER RIGHTS THAT VARY FROM STATE TO STATE. ACTiSYS Corporation warrants to the first consumer purchaser, for a period of 1 year from the date of purchase, that this wireless interface (The Product? Will be free from defective workmanship and materials, and agrees that it will, at its option, either repair the defect or replace the defective Product or part thereof at no charge to the purchaser for parts or for labor.
- Page 23 Corpo Corpor...
