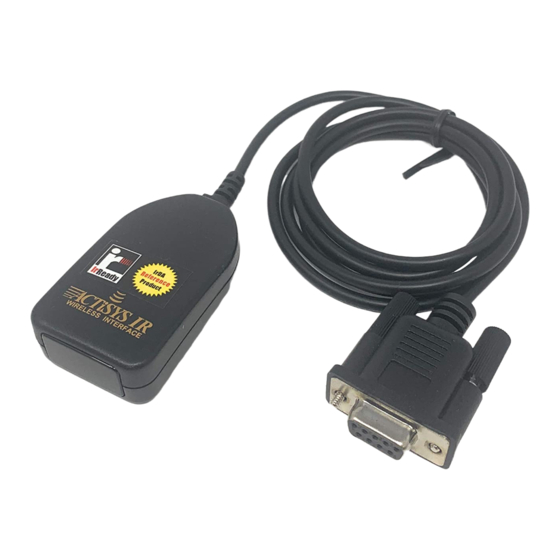

- Page 1 921 Corporate Way, CA 94539, USA Tel: +1-510-490-8024 Fax: +1-510-623-7268 Web: http://www.actisys.com E-mail: irda-info@actisys.com ACT-IR220Li / ACT-IR220LN IR Serial Port Adapter User’s Manual September 25, 2008 Version 1.3.1.2 © Copyright 1999-2008 ACTiSYS Corporation All Rights Reserved...
-
Page 2: Fcc & Vcci Compliance Statement
Model Number: Date of Purchase: All indicated copyrights and trademarks in this document are copyrights and trademarks of their respective corporations. © Copyright 1999-2008 ACTiSYS Corp Class category (information equipment to be used in a residential Serial Number: Place of Purchase:... -
Page 3: Table Of Contents
7. REGULATORY SPECIFICATIONS ... 8 Radiated and Conducted EMC ... 8 Susceptibility Compliance ... 8 8. WARRANTY INFORMATION ... 9 9. CONTACT INFORMATION ... 10 © Copyright 1999-2008 ACTiSYS Corp TABLE OF CONTENTS Page 3 of 10 ACT-IR220Li&220LN User’s Manual Sept. -
Page 4: Revision History
ACTiSYS reserves the right to make changes without further notice to any products herein to improve reliability, function or design. ACTiSYS does not assume any liability arising out of the application or use of any product or circuit described herein. -
Page 5: Product Introduction
This is a direct replacement for ESI9680 in level mode. 61.8 mm 2. CONNECTOR PIN DEFINITION Signal Name Pin Number © Copyright 1999-2008 ACTiSYS Corp ® 35.6 mm 100 cm Signal Description Not Connected... -
Page 6: Baud Rate Selection
ACT-IR220LN19 ACT-IR220LN38 ACT-IR220LN57 ACT-IR220LN115 4. TRANSMISSION CHARACTERISTICS Parameters IR transmit pulse width Optical cone angle Transmission distance Receiver latency © Copyright 1999-2008 ACTiSYS Corp Baud Rate 9.6k bps 19.2k bps 38.4k bps 57.6k bps 115.2k bps Typical 1.63 ± 15... -
Page 7: Specifications
Cable Insulation: PVC Cable Molding Compound PC Board FR-4 © Copyright 1999-2008 ACTiSYS Corp ® IrDA – 1.0 (SIR) compatible Programmable (9.6 k, 19.2k, 38.4k, 57.6k, 115.2k bps) Standard DB9F RS-232 Serial COM port to IrDA RS-232 port power only. No external power required 0.3 W (Peak) -
Page 8: Regulatory Specifications
7. REGULATORY SPECIFICATIONS Radiated and Conducted EMC FCC-B VCCI-2 EN50081-1 EN55022 Susceptibility Compliance EN50081-1 (1992) EN55022 (1998) EN61000-3-2 (1992) EN61000-3-3 (1995) © Copyright 1999-2008 ACTiSYS Corp (1988) EN55024 (1998) EN61000-4-2 (1995) EN61000-4-3 (1995) EN61000-4-4 (1995) Page 8 of 10 ACT-IR220Li&220LN User’s Manual... -
Page 9: Warranty Information
The Wireless Connectivity Expert 8. WARRANTY INFORMATION ACTiSYS Corporation warrants the first end-user purchaser, for a period of 1 year from the date of purchase, that this wireless interface (The Product) will be free from defective workmanship and materials, and agrees that it will, at its option, either repair the defect or replace the defective Product or part thereof at no charge to the purchaser for parts or for labor. -
Page 10: Contact Information
ACT-IR220Li&220LN User’s Manual The Wireless Connectivity Expert 9. CONTACT INFORMATION ACTiSYS Corporation 921 Corporate Way Fremont, CA 94539, USA TEL:+1-510-490-8024, FAX:+1-510-623-7268 E-Mail: irda-info@actisys.com Web: http://www.actisys.com © Copyright 1999-2008 ACTiSYS Corp Page 10 Sept. 25,2008 of 10 Version 1.3.1.2...
