IR Printer Adapter IR100M+/100M/100MP
ACT-IR100M+/100M/100MP
IrDA IR Printer Adapter
User's Manual
I
ACTiSYS Corp.
48511 Warm Springs Blvd, Suite 206
Fremont, CA 94539, USA
TEL: (510) 490-8024, FAX: (510) 623-7268
E-Mail:
irda-support@actisys.com
Web:
www.actisys.com
Release 3.2, August 20, 2003
1
© Copyright ACTiSYS Corporation 1999-2003. All Rights Reserved

Advertisement

loading

Related Manuals for ACTiSYS ACT-IR100M

Summary of Contents for ACTiSYS ACT-IR100M

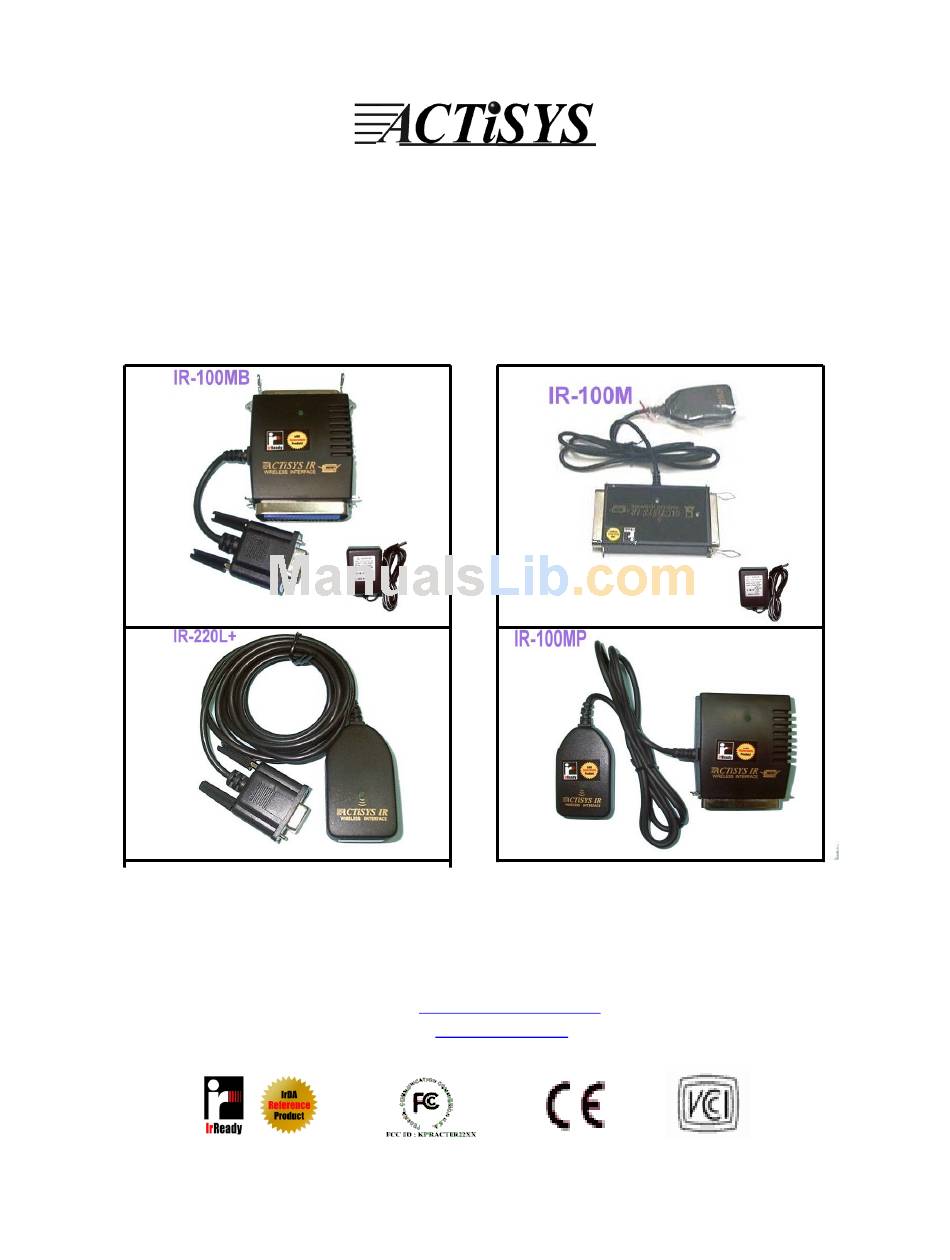

  • Page 1 IrDA IR Printer Adapter User’s Manual ACTiSYS Corp. 48511 Warm Springs Blvd, Suite 206 Fremont, CA 94539, USA TEL: (510) 490-8024, FAX: (510) 623-7268 E-Mail: irda-support@actisys.com Web: www.actisys.com Release 3.2, August 20, 2003 © Copyright ACTiSYS Corporation 1999-2003. All Rights Reserved...
  • Page 2 Date of Purchase All indicated copyrights and trademarks in the following pages are copyrights and trademarks of their Respective corporations. Release 3.2, August 20, 2003 © Copyright ACTiSYS Corporation 1999-2003. All Rights Reserved IR Printer Adapter IR100M+/100M/100MP Serial Number Place of Purchase...
  • Page 3 We also appreciate if you will e-mail us at irda-info@actisys.com for printer models working with IR100M but not listed in the above compatibility list. Release 3.2, August 20, 2003 © Copyright ACTiSYS Corporation 1999-2003. All Rights Reserved...

  • Page 4: Table Of Contents

    PARTS CHECK LIST ...9 SYSTEM REQUIREMENTS ...10 SETUP ...11 TROUBLESHOOTING AND COMPATIBLE PRINTERS LIST ...13 SPECIFICATIONS ...15 WARRANTY INFOMATION ...16 CONTACT INFORMATION ...18 Release 3.2, August 20, 2003 © Copyright ACTiSYS Corporation 1999-2003. All Rights Reserved IR Printer Adapter IR100M+/100M/100MP...

  • Page 5: Introduction

    In this manual, we focus on the usage of IR printing function. For IR wireless data transfer, please see the IR220L+ user manual. The ACT-IR100M is another Actisys IrDA parallel printer adapter that allows a mobile device to print directly via infrared. It features an integrated IR head and adapter body.
  • Page 6 ACTiSYS Corp. ACT-IR100M+ LED Status Definition Name Status Flash Slowly Release 3.2, August 20, 2003 © Copyright ACTiSYS Corporation 1999-2003. All Rights Reserved IR Printer Adapter IR100M+/100M/100MP Figure 1: ACT-IR100M+ Meanings Before Detecting IR Device IR Signal Detected IR Communicating...
  • Page 7 Flash Parallel LED (green) On or Flashes fast Power LED (red) Release 3.2, August 20, 2003 © Copyright ACTiSYS Corporation 1999-2003. All Rights Reserved IR Printer Adapter IR100M+/100M/100MP Figure 2: ACT-IR100M Meanings Stand-by for transmission Printing through the infrared port...
  • Page 8 ACTiSYS Corp. Figure 3: ACT-IR100MP ACT-IR100MP LED Status Definition Name Status Flash Slowly Release 3.2, August 20, 2003 © Copyright ACTiSYS Corporation 1999-2003. All Rights Reserved IR Printer Adapter IR100M+/100M/100MP Meanings Before Detecting IR Device IR Signal Detected IR Communicating...

  • Page 9: Parts Check List

    ACT-IR100MB or ACT-IR100M or ACT-IR100MP ACT-IR220L+ only for ACT-IR100M+ 7.5V AC Adapter, inside positive if ACT-IR100MB or ACT-IR100M Microsoft Windows 95 Infrared Communication Driver, Version 2.0. This is ONLY for Windows 95. DON’T use it if your computer is not Windows 95.

  • Page 10: System Requirements

    ACTiSYS Corp. 3 SYSTEM REQUIREMENTS To use ACT-IR100M+/IR100M/IR100MP, you MUST meet the following requirements. Your PC which using passing through: • A Centronics parallel port. • A cable connecting your PC Centronics port and IR100M+/IR100M/IR100MP Centronics 36F port. • A printer which is within ACTiSYS IR100M+/IR100M/IR100MP compatibility list.

  • Page 11: Setup

    ACTiSYS Corp. IR Printer Adapter IR100M+/100M/100MP 4 SETUP Figure 3: Connection Diagram with Passing Thru Figure 4: Connection Diagram without Passing Thru Release 3.2, August 20, 2003 © Copyright ACTiSYS Corporation 1999-2003. All Rights Reserved...
  • Page 12 Connect ACT-IR220L+ to ACT-IR100M+ only if you have IR100M+. Connect your printer and ACT-IR100M+/IR100M/IR100MP. Connect your ACT-IR100M+/IR100M/IR100MP and PC by printer cable ( If you use the pass through function) Plug the AC adapter to the electrical outlet if external power supply need.

  • Page 13: Troubleshooting And Compatible Printers List

    Be sure the distance between two eyes met the infrared requirements. When I try to print from my Check if your printing software is on the Actisys recommend software mobile device, the LED list. If not, contact Actisys technical support.
  • Page 14 Be sure the distances between two eyes meet the infrared requirements. When I try to print from my Check if your printing software is on the Actisys recommend mobile device, the infrared software list. If not, contact Actisys technical support.

  • Page 15: Specifications

    2.68” (W) x 3.15” (L) x 1” (H) (68mmW x 80mmL x 25mmH) Weight: oz ( Release 3.2, August 20, 2003 © Copyright ACTiSYS Corporation 1999-2003. All Rights Reserved IR Printer Adapter IR100M+/100M/100MP C (32 F to 104 gr.) (no battery is required)

  • Page 16: Warranty Infomation

    RIGHTS WHICH VARY FROM STATE TO STATE. ACTiSYS Corporation warrants to the first consumer purchaser, for a period of one year from the date of purchase, that this wireless interface (“the Product”) will be free from defective workmanship and materials, and agrees that it will, at its option, either repair the defect or replace the defective Product or part thereof at no charge to the purchaser for parts or for labor.
  • Page 17 ACTiSYS Corp. ACTiSYS Corporation warrants to the first consumer purchaser, for a period of 1 year from the date of purchase, that this wireless interface (The Product? Will be free from defective workmanship and materials, and agrees that it will, at its option, either repair the defect or replace the defective Product or part thereof at no charge to the purchaser for parts or for labor.

  • Page 18: Contact Information

    IR Printer Adapter IR100M+/100M/100MP 8 CONTACT INFORMATION ACTiSYS Corporation. 48511 Warm Springs Blvd, Suite 206 Fremont, CA 94539, USA TEL: (510) 490-8024, FAX: (510) 623-7268 E-Mail: irda-support@actisys.com Web: www.actisys.com Release 3.2, August 20, 2003 © Copyright ACTiSYS Corporation 1999-2003. All Rights Reserved...
