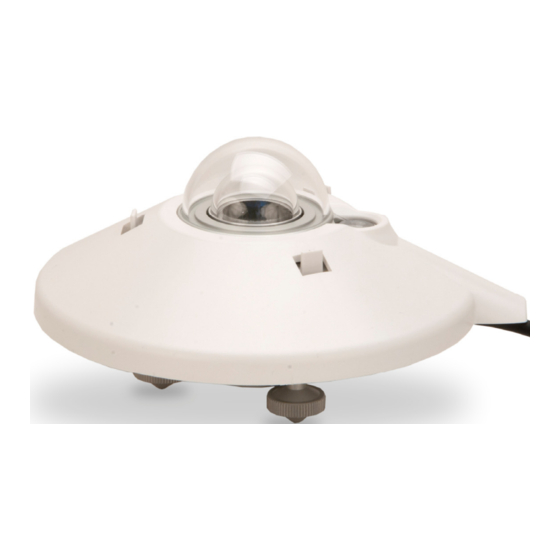

CMP6 -L, CMP11-L, and
CMP21-L Pyranometers
Revision: 9/13
C o p y r i g h t
©
2 0 0 6 - 2 0 1 3
C a m p b e l l
S c i e n t i f i c ,
I n c .
