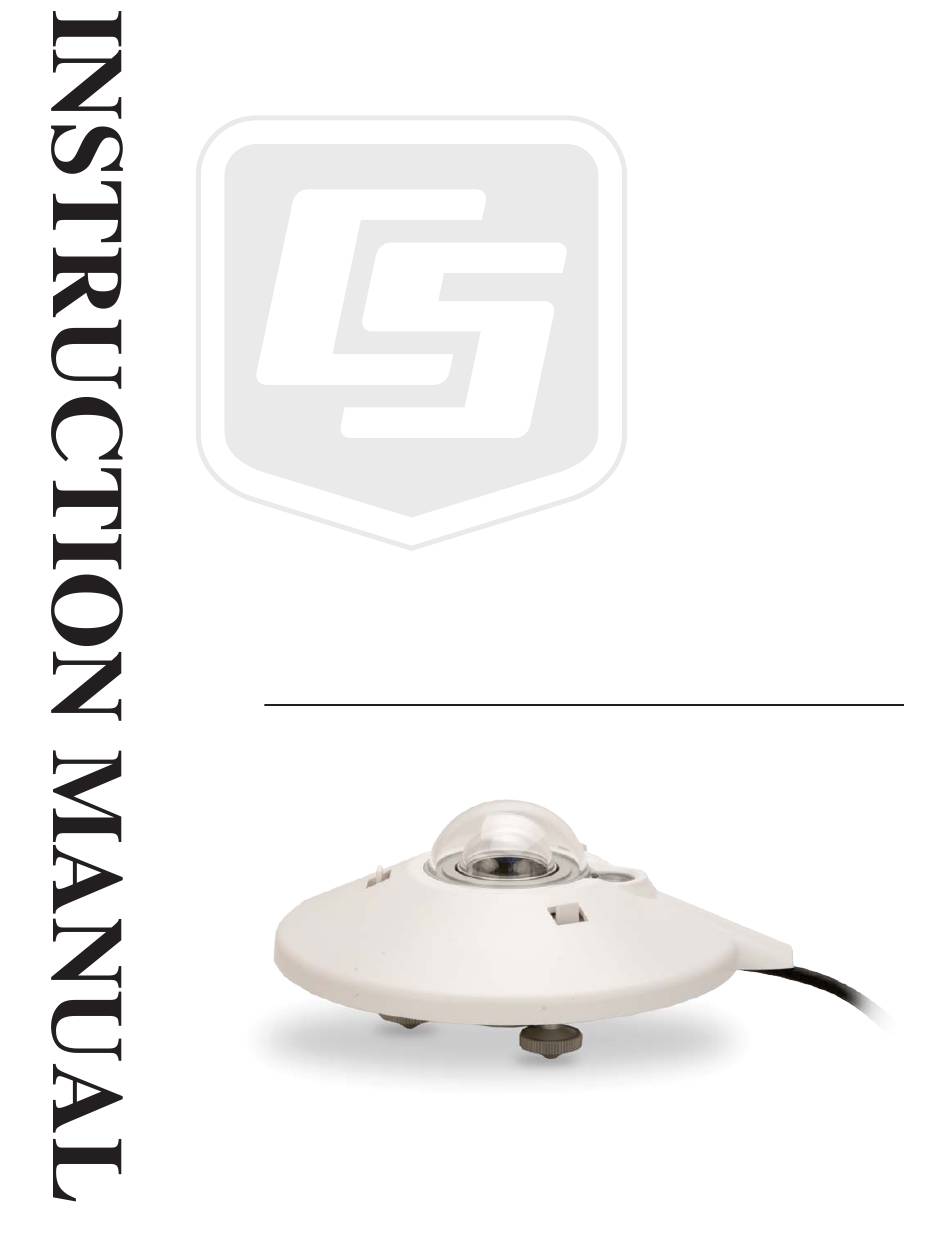

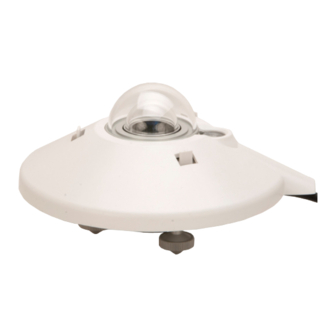

- Page 1 CMP6-L, CMP10-L, CMP11-L and CMP21-L Pyranometers March 2015 Copyright © 2015 Campbell Scientific (Canada) Corp.
- Page 3 WARRANTY AND ASSISTANCE This equipment is warranted by CAMPBELL SCIENTIFIC (CANADA) CORP. ("CSC") to be free from defects in materials and workmanship under normal use and service for ***** twenty-four (24) months from date of shipment unless specified otherwise. ***** CSC's obligation under this warranty is limited to Batteries are not warranted.
-
Page 4: Table Of Contents
Table of Contents PDF viewers: These page numbers refer to the printed version of this document. Use the PDF reader bookmarks tab for links to specific sections. 1. Introduction ..............1 2. Cautionary Statements ..........1 3. Initial Inspection ............1 Ships With .................... - Page 5 Table of Contents 8. Maintenance ............. 23 Cleaning Domes ................23 Changing the Desiccant ..............24 Check Sensor Output ................. 24 Recalibration ..................25 9. Troubleshooting ............25 Appendix A. CVF3, CVF4 Heater Ventilator ..... A-1 General Information ................ A-1 Siting ....................
- Page 6 Campbell Scientific Dataloggers ............ 13 TABLE 7-2. CMP6, CMP10 and CMP11 Single-Ended Connections to Campbell Scientific Dataloggers ............ 14 TABLE 7-3. CMP21 Differential Connections to Campbell Scientific Dataloggers ..................14 TABLE 7-4. CMP21 Single-Ended Connections to Campbell Scientific Dataloggers ..................15 TABLE 7-5.
-
Page 8: Introduction
Initial Inspection Check the contents of the shipment. If there is a shortage (see Section 3.1, Ships With), contact Campbell Scientific. If any damage has occurred during transport, immediately file a claim with the carrier and contact Campbell Scientific to facilitate repair or replacement. -
Page 9: Ships With
CMP6-L, CMP10-L, CMP11-L, and CMP21-L Pyranometers Ships With (2) Bolts for mounting from original manufacturer (1) Sun Shield from original manufacturer (2) Nylon washers from original manufacturer Calibration Certificate Each pyranometer is shipped with an instruction manual provided by Kipp &... -
Page 10: Mounting
CMP6-L, CMP10-L, CMP11-L, and CMP21-L Pyranometers Mounting See Section 7.1, Mounting to a Tripod Tower, for more information. Figure 4-1 Pyranometer installation CM245 Adjustable Angle Mounting Stand CM2XX-Series Crossarm Figure 4-2 Pyranometer mounted horizontally for the Northern Hemisphere (left) and Southern Hemisphere (right) -
Page 11: Figure 4-3 Two Views Of A Pyranometer Mounted At An Angle For The Northern
CMP6-L, CMP10-L, CMP11-L, and CMP21-L Pyranometers Figure 4-3 Two views of a pyranometer mounted at an angle for the Northern Hemisphere Figure 4-4 Pyranometer mounted at an anlge for the Southern Hemisphere... -
Page 12: Datalogger Programming/Wiring
Datalogger Programming/Wiring The simplest method for programming the datalogger to measure a CMP6, CMP10 or CMP11 is to use Campbell Scientific's SCWin Short Cut Program Generator (see Figure 4.5). Wire the pyranometer according to the wiring diagram generated by Short Cut. -
Page 13: Overview
The pyranometers have several cable termination options. Their cables can terminate in: Pigtails that connect directly to a Campbell Scientific datalogger (cable termination option –PT). Connector that attaches to a prewired enclosure (cable termination option –PW). -
Page 14: Specifications
CMP6-L, CMP10-L, CMP11-L, and CMP21-L Pyranometers Specifications Pyranometers Table 6-1 CMP-Series Specifications Specification CMP6 CMP10 and CMP11 CMP21 ISO Classification First Class Secondary Standard Maximum irradiance 2000 W•m –2 4000 W•m –2 Spectral range 285 to 2800 nm (50% points) Response time (95 %) <18 s... -
Page 15: Cvf3 Ventilation Unit
CMP6-L, CMP10-L, CMP11-L, and CMP21-L Pyranometers Figure 6-1 Dimensions of the CMP6, CMP11, and CMP21 CVF3 Ventilation Unit CMP6, CMP10, CMP11, CMP21 Compatible Pyanometers: 12 Vdc, 1.3 A (with 10 W Heater) Power supply: Operating temperature range: –40° to 70°C... -
Page 16: Installation
CMP6-L, CMP10-L, CMP11-L, and CMP21-L Pyranometers Operating temperature range: –40° to 70°C 5 W continuously Ventilation power: 5.5 W Heating power: –2 <1 W•m (with CMP10, CMP11 Heater induced offset: Pyranometer) 1.6 kg (3.5 lb) Weight without cable: Figure 6-3 Dimensions of the CVF4... -
Page 17: Figure 7-1 Cm245 Bracket With 2.125" U-Bolts Positioned To Mount The Pyranometer Horizontally On A Crossarm
CMP6-L, CMP10-L, CMP11-L, and CMP21-L Pyranometers If using a CFV3 or CVF4 Ventilation Unit, a different mounting Note stand, the 27084 is required. Refer to Appendix A, CVF3 and CVF4 Heater/Ventilator, for more information. The CM245 includes slots that allow it to be adjusted to any angle from horizontal to vertical. -
Page 18: Figure 7-2 Cm245 Bracket With 1.5" U-Bolts Positioned To Mount Pyranometer At A 40° Angle On A Vertical Pipe
CMP6-L, CMP10-L, CMP11-L, and CMP21-L Pyranometers Second First 1.5” 1.5” u-bolt u-bolt Figure 7-2 CM245 bracket with 1.5" u-bolts positioned to mount pyranometer at a 40° angle on a vertical pipe Do the following to level the pyranometer horizontally (see Error! Reference ource not found.):... -
Page 19: Wiring
CMP6-L, CMP10-L, CMP11-L, and CMP21-L Pyranometers Sun shield Mounting screws Nylon washers Bubble level Pyranometer Levelling screw CM245 mounting stand Crossarm Figure 7-3 Exploded view of the pyranometer mounting Wiring Short Cut users should wire the sensor according to the wiring Note diagram generated by Short Cut. -
Page 20: Cmp6, Cmp10, Cmp11, And Cmp21 Thermopile Schematic
) to keep the signal in common mode range. Connections to Campbell Scientific dataloggers for a single-ended measurement are given in TABLE 7-2able 7-2. TABLE 7-1. CMP6, CMP10 and CMP11 Differential Connections to Campbell Scientific Dataloggers CR9000(X), CR5000, CR3000, CR1000, CR510, CR500,... -
Page 21: Cmp21 Wiring
CMP6-L, CMP10-L, CMP11-L, and CMP21-L Pyranometers TABLE 7-2. CMP6, CMP10 and CMP11 Single-Ended Connections to Campbell Scientific Dataloggers CR9000(X), CR5000, CR3000, CR1000, CR510, CR500, Color Description CR800 CR10(X) 21X, CR7, CR23X White Signal (+) SE Analog SE Analog SE Analog Black Signal (–) -
Page 22: Programming
CMP6-L, CMP10-L, CMP11-L, and CMP21-L Pyranometers TABLE 7-4. CMP21 Single-Ended Connections to Campbell Scientific Dataloggers CR9000(X), Wire Label/ CR5000, CR3000, CR510, CR500, 21X, CR7, CR23X Wire Color Description CR1000, CR800 CR10(X) White Pyranometer Sig Single-ended analog Single-ended analog Single-ended analog... -
Page 23: Multiplier
CMP6-L, CMP10-L, CMP11-L, and CMP21-L Pyranometers Select the input range as follows: 1. Estimate the maximum expected input voltage by multiplying the –2) maximum expected irradiance (in W•m by the calibration factor (in μV / –2 W•m ). Divide the answer by 1000 to give the maximum in millivolt units. -
Page 24: Offset
CMP6-L, CMP10-L, CMP11-L, and CMP21-L Pyranometers 7.3.1.3 Offset The offset will normally be fixed at zero as the sensor should output no significant signal in dark conditions. In practice, because of the nature of thermopile detector sensors, there will be some offset in dark conditions;... -
Page 25: Example Programs
CMP6-L, CMP10-L, CMP11-L, and CMP21-L Pyranometers In CRBasic, the conversion to resistance is entered as a mathematical expression. In Edlog, Instruction P59 (Bridge Transform) does the conversion. The Steinhart-Hart equation is used to convert resistance to temperature. The Steinhart-Hart equation for converting resistance to degree Celsius is as follows: Temperature = 1/[A + B*LN(resistance) + C*(LN(resistance))^3] - 273.15... -
Page 26: Cr1000 Example Program For Measuring A Cmp11
CMP6-L, CMP10-L, CMP11-L, and CMP21-L Pyranometers 'Measure the Battery Voltage and Panel Temperature PanelTemp (PTemp,250) Battery (Batt_Volt) 'Measure the CMP6 VoltDiff (CMP6_Irr,1,mV25C,1,True ,10000,_60Hz,1000/14.33,0) CallTable TenMin NextScan EndProg 7.3.3.2 CR1000 Example Program for Measuring a CMP11 Although this example is for the CR1000, other CRBasic dataloggers are programmed similarly. -
Page 27: Cr1000 Example Program For Measuring A Cmp21
CMP6-L, CMP10-L, CMP11-L, and CMP21-L Pyranometers Battery (Batt_Volt) 'Measure the CMP11 VoltDiff (CMP11_Irr,1,mV25C,2,True ,10000,_60Hz,1000/8.55,0) CallTable TenMin NextScan EndProg 7.3.3.3 CR1000 Example Program for Measuring a CMP21 Although this example is for the CR1000, other CRBasic dataloggers are programmed similarly. The following program measures the CMP21 every second. -
Page 28: Cr10X Example Program For Measuring A Cmp6
CMP6-L, CMP10-L, CMP11-L, and CMP21-L Pyranometers BeginProg Scan (1,Sec,0,0) ‘Measure the Battery Voltage and Panel Temperature PanelTemp (PTemp,250) Battery (Batt_Volt) ‘Measure the CMP21 pyranometer VoltDiff (CMP21_Irr,1,mV25C,3,True,10000,_60Hz,1000/8.65,0) 'CMP21 Thermistor Measurement BrHalf (Vs_Vx,1,mV5000,15,Vx1,1,2500,True ,0,250,1.0,0) Rs = 1000*(Vs_Vx/(1-Vs_Vx)) CMP21_T_C = 1/(1.0295e-3+2.391e-4*LN(Rs)+1.568e-7*(LN(Rs))^3)-273.15 'Convert CMP21 temp to Kelvin. - Page 29 CMP6-L, CMP10-L, CMP11-L, and CMP21-L Pyranometers ;{CR10X} *Table 1 Program 01: 10.0000 Execution Interval (seconds) ; CMP6 measurement in W/m2 1: Volt (Diff) (P2) 1: 1 Reps 2: 23 25 mV 60 Hz Rejection Range ;use the 50 mV range for the CR7, 21X and CR23X...
-
Page 30: Maintenance
CMP6-L, CMP10-L, CMP11-L, and CMP21-L Pyranometers 11: Set Active Storage Area (P80) 1: 1 Final Storage Area 1 2: 102 Array ID 12: Real Time (P77) 1: 1220 Year,Day,Hour/Minute (midnight = 2400) 13: Resolution (P78) 1: 1 High Resolution 14: Totalize (P72) -
Page 31: Changing The Desiccant
Changing the Desiccant A desiccant-filled drying cartridge prevents dew from forming on the inner sides of the domes; Campbell Scientific part number 27052 is the replacement desiccant for this cartridge. The optional CVF3 or CVF4 Heater/Ventilator Unit is also available to keep the pyranometer dome free from ice and dew (see Appendix A, CVF3, CVF4 Heater/Ventilator). -
Page 32: Recalibration
The calibration of the pyranometer may drift with time and exposure to radiation. Recalibration every two years is recommended. The sensor should be returned to Campbell Scientific for recalibration. A Returned Materials Authorization (RMA) is required (refer to the Assistance page for more information). - Page 33 CMP6-L, CMP10-L, CMP11-L, and CMP21-L Pyranometers...
-
Page 34: Appendix A. Cvf3, Cvf4 Heater Ventilator
CVF4 5.5 W heater. These power requirements are large compared to most Campbell Scientific products. Because of this, the CVF3 and CVF4 require additional consideration for power supplies and control. Please review these matters with a Campbell Scienttific (Canada) Measurement Consultant so any concerns can be addressed. -
Page 35: Installation
CVF3, CVF4 Heater Ventilator A-2 Transparent front view of CVF4 showing air flow A-3 Tranparent side view of CVF4 showing air flow A.3 Installation The CVF3 or CVF4 unit includes the heater/ventilator unit, white cover, cable, and mounting hardware. Tools required for mounting to a tripod or tower are: Small and medium Phillips screwdrivers 5/16”, 1/2”... -
Page 36: Cvf3
CMP6-L, CMP10-L, CMP11-L, and CMP21-L Pyranometers Compass Step ladder A.3.1 CVF3 To install, do the following: Remove leveling screws from the pyranometer. Fit the pyranometer in the upper plate of the CVF3 (see Figure A-4). Use the counter sink screws, nylon rings, and nuts to secure the upper plate of the CVF3 with the lower portion of the unit (see Figure A-4). - Page 37 CVF3, CVF4 Heater Ventilator A-5 CVF3 installed onsite Tighten the mounting screws to secure the assembly in its final position. Check that the pyranometer is still correctly leveled and adjust as necessary. Use the cover’s screws to fasten the white cover to the pyranometer (see Figure A-6).
-
Page 38: Cvf4 Installation
CMP6-L, CMP10-L, CMP11-L, and CMP21-L Pyranometers Attach the power cable to the CVF3 connector. A.3.2 CVF4 Installation To install, do the following: 1. Screw the CVF4 flat onto the mounting plate. Be sure to position the CVF4 so that the fan sticks out over the edge of the plate. See Figure A-7 for the CVF4 mounting holes size and distances. - Page 39 CVF3, CVF4 Heater Ventilator A-8 L31153 Mounted CVF4...
-
Page 40: Wiring
CMP6-L, CMP10-L, CMP11-L, and CMP21-L Pyranometers A.4 Wiring Wiring of the CVF3 is shown in Table A-1. Refer to Section 7.2, Wiring, for information about wiring the pyranometer. Table A-1 CVF3 Wiring TABLE A-2 CVF3 Wiring Wire Color Description Connection... - Page 41 CVF3, CVF4 Heater Ventilator A-9 CVF3 filter replacement A.5.2 CVF4 Regular inspection of the CVF4 is advised. Depending on location Note (air pollution) this can be monthly or yearly. Remember to check the CVF4 filter. 1. Refer to Section 8, Maintenance, for pyranometer’s maintenance. 2.
