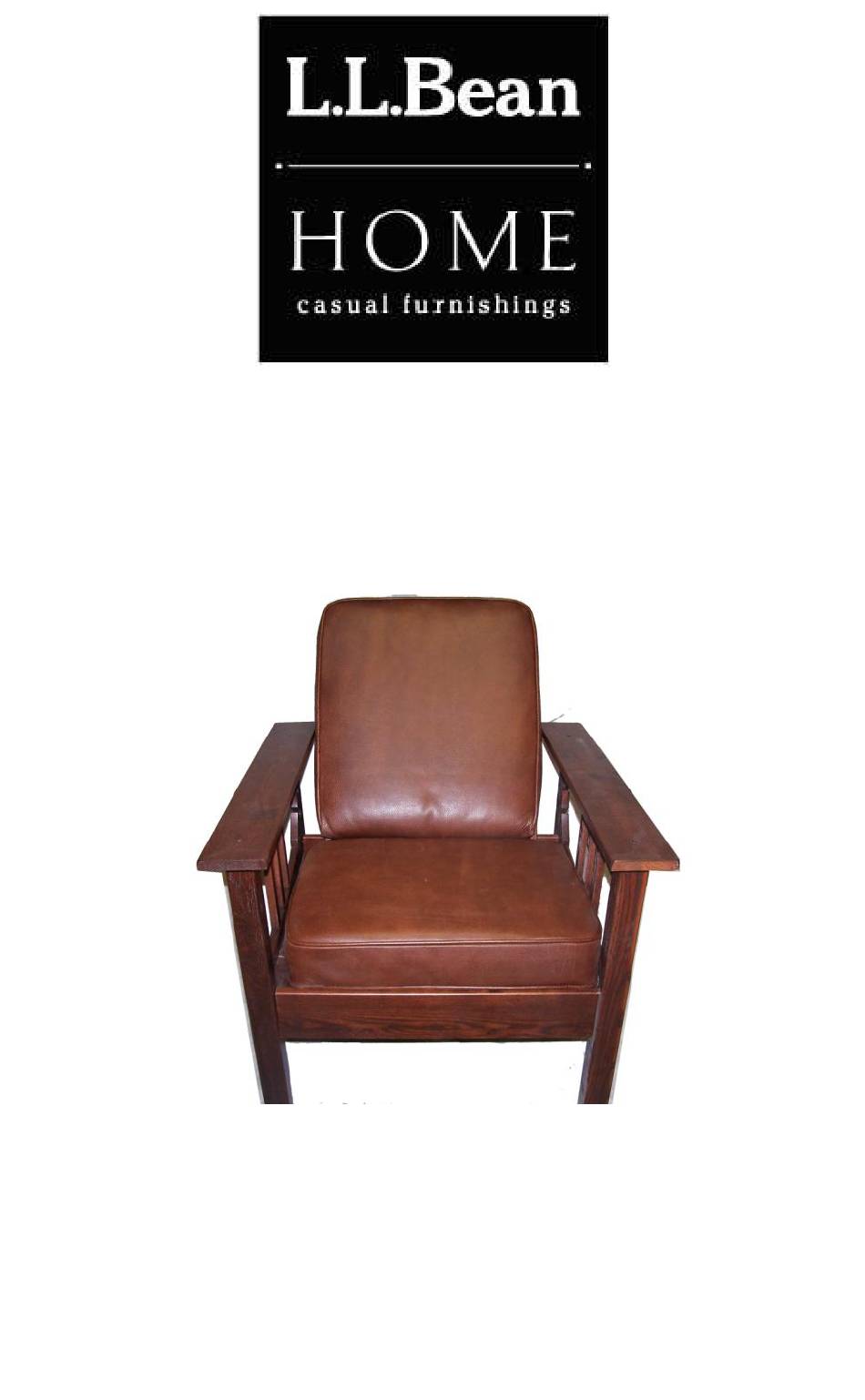

- Page 1 MISSION MORRIS CHAIR Thank you for purchasing our Mission Morris Chair. Assembly of this product requires a Phillips screwdriver and a hammer. We have found it helpful to have a second person assist with assembly. 7556 0BKN4090130...
- Page 2 STEP 1 Read through these instructions thoroughly before beginning assembly. We have found this to be of great value when first assembling this product. STEP 2 Remove all parts and hardware from packing material. Wooden pieces should be placed on a non-abrasive surface (like the carton or carpet) to prevent damage to the finish.
- Page 3 STEP 6 Repeat with back stretcher (D) using 1 ½” screws *NOTE The back stretcher is longer and gets assembled with the cleat going to the bottom. STEP 7 Using same technique as step 5 and step 6 assemble right side assembly (A) to front and back stretcher.
- Page 4 STEP 9 Install hinges to back support (F) using (4) 5/8” screws. Then attach hinges to the pilot holes in the seat using the (4) remaining 5/8” screws. STEP 10 Assemble arms (G) to chair using (4) 1 ½” screws. Thread screws through the predrilled holes in arms and into pilot holes in leg.
