XVME-2 12 Manual
August, 1989

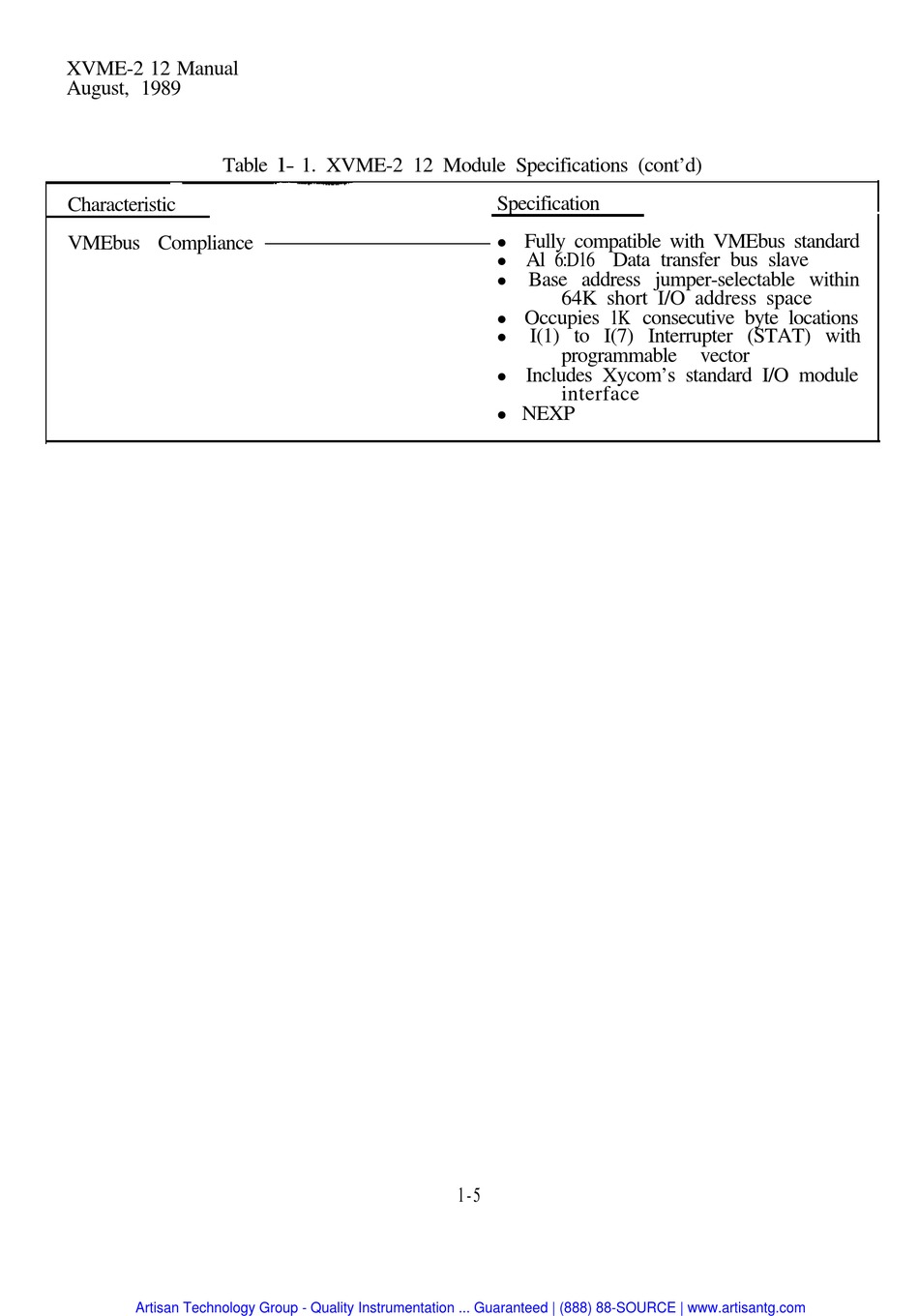

Table l- 1. XVME-2 12 Module Specifications (cont'd)
Characteristic
VMEbus Compliance
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Specification
Fully compatible with VMEbus standard
l
Al 6:D16 Data transfer bus slave
l
Base address jumper-selectable within
l
64K short I/O address space
Occupies 1K consecutive byte locations
l
I(1) to I(7) Interrupter (STAT) with
l
programmable
Includes Xycom's standard I/O module
l
interface
NEXP
l
1-5
vector
