- Page 1 PC6150 / FPC6150 15” TFT Touch Panel Computer User’s Manual...
- Page 3 ACNODES assumes no responsibility for any inaccuracies that may be contained in this document. ACNODES makes no commitment to update or to keep current the information contained in this manual. ACNODES reserves the right to make improvements to this document and/or product at any time and without notice.
-
Page 4: Safety Approvals
CE Marking FCC Class A FCC Compliance This equipment has been tested and complies with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 5: Safety Precautions
Before getting started, read the following important cautions. The PC6150 / FPC6150 does not come equipped with an operating system. An operating system must be loaded first before installing any software into the computer. 2. Be sure to ground yourself to prevent static charge when installing the internal components. - Page 6 Trademarks Acknowledgments ACNODES is a trademark of ACNODES Co., Ltd. IBM, PC/AT, PS/2, VGA are trademarks of International Business Machines Corporation. Intel and Pentium are trademarks of Intel Corporation. MS-DOS, Microsoft C and QuickBASIC are trademarks of Microsoft Corporation.
- Page 7 This page does not contain any information.
-
Page 8: Table Of Contents
Disclaimers...ii Safety Approvals...iii FCC Compliance ...iii Safety Precautions...iv C h a p t e r 1...1 Introduction ...1 General Description ...1 Specifications ...2 1.2.1 Main CPU board...2 I/O System ...3 1.2.2 System Specification ...4 1.2.3 Dimensions ...5 Front View and I/O Outlets ...7 1.4.1 Front View...7 I/O Outlet ...8... - Page 9 Driver Installation...22 System...22 Touch Screen...23 3.2.1 Specification...23 3.2.2 Driver Installation- Windows2000/XP/CE.NET/XP-Embedded ...24 3.2.3 Driver Installation- DOS...26 C h a p t e r 4...30 Embedded O.S. Installation ...30 Windows XP Embedded ...30 PenMount Touch Screen ...30 4.1.1 Windows CE.NET 4.2 ...31 Calibration Touch Screen ...31 4.2.1 A p p e n d i x A ...32...
- Page 10 ELECTRICAL REQUIREMENTS ...57 B.1.1 EFFICIENCY ...60 B.1.2 B.1.3 ENVIRONMENTAL REQUIREMENTS...60 B.1.4 TEMPERATURE RANGE...60 HUMIDITY ...60 B.1.5 VIBRATION ...60 B.1.6 SHOCK ...61 B.1.7 B.1.8 SAFETY...61 MTBF ...61 B.1.9 B.2 Power Supply: MPI-810H-A1 (ATX120W, AC 90~260V Input) ...62 B.2.1 Input Specifications...62 B.2.2 Output Specifications...62 General Specifications ...63 B.2.3...
-
Page 13: Chapter 1

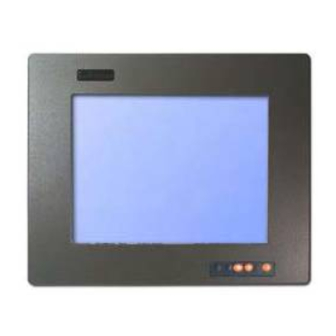

General Description System Specification Dimensions Front View & I/O Outlets Package List General Description The PC6150 / FPC6150 is a TFT Touch Panel PC which equipped ® with superior Pentium M/Celeron display, and expansion industrial panel computer, PC6150 / FPC6150, is a complete full- function and extreme cost-effective industrial HMI controller. -
Page 14: Specifications
PC 6150 / FPC 6150 User’s Manual Specifications 1.2.1 Main CPU board Socket 479 for CPU: ® ® Intel Pentium M FPC 6150 ® ® Intel Celeron Processors PC 6150 ® Intel System Chipset: Phoenix-Award BIOS, Y2K compliant BIOS: 4Mbit Flash, DMI, Plug and Play... -
Page 15: Introduction
1.2.2 I/O System Standard I/O: − 3 x serial ports with power; 3 x RS-232 − 1 x PS/2 for Keyboard Interface − 1 x PS/2 for Mouse Interface − 4 x USB Ports 2.0 compliant − 1 x 1 5 pin(female) for VGA output Ethernet: One Realtek 8100C PCI Bus 10/100M Base-T... -
Page 16: System Specification
PC 6150 / FPC 6150 User’ s Manual 1.2.3 System Specification 15” TFT LCD Disk drive housing: − 1x optional slim type CD-ROM dive, − 1x optional slim type FDD dive, − 1 x internal 3.5” drive (or 2 X 2.5” HDD) -
Page 17: Dimensions
PC 6150/FPC6150 User’s Manual Dimensions The following diagrams show the dimensions and outlines of PC6150 / FPC6150. Introduction... - Page 18 PC 6150 / FPC 6150 User’s Manual Introduction...
-
Page 19: Front View And I/O Outlets
1.4 Front View and I/O Outlets 1.4.1 Front View The figure below shows the features and controls on the PC6150 / FPC6150 front panel. SEL- SEL+ Backlight ON/OFF Introduction PC 6150/FPC6150 User’s Manual... -
Page 20: I/O Outlet
PC 6150 / FPC 6150 User’s Manual 1.4.2 I/O Outlet The following figure shows the I/O locations of the PC6150 / FPC6150. COM 3 Mic-in, Line-in, Line-Out Power Switch PS2 x 2 (KB/MS) COM 1 & 2 USB v2.0 * 4... -
Page 22: Package List
ACNODES distributors. 1. P C 6 1 5 0 / F P C 6 1 5 0 x 1 2. 3.5” HDD bracket kit x 1 3. 2.5” HDD bracket kit x 1 (optional) 4. Power cord fixing kit x 1 5. -
Page 24: Chapter 2
PC 6150/FPC6150 User’s Manual Hardware Installation The PC6150 / FPC6150 provides lots of flexible ways for you to select different configuration such as CPU, CD-ROM and more. The chapter will show you how to install the hardware. It includes: CD-ROM DRAM Add-on Card Hard Disk... - Page 25 PC6150/FPC6150 User’s Manual 3. Install the CPU and DDR DRAM in the PC6150 / FPC6150. DRAM Hardware Installation...
-
Page 26: Hdd Installation
PC 6150/FPC6150 User’s Manual HDD Installation The PC6150 / FPC6150 offers a convenient drive bay module for users to install HDD. The PC6150 / FPC6150 offers one 3.5” HDD drive for users to install. If you want to install one or two 2.5” HDD, the PC6150 / FPC6150 also provides the 3.5”... - Page 27 If installing the 2.5” HDD, please follow the steps: Set the 2.5” HDD in the HDD bracket kit. Install the HDD in the PC6150 / FPC6150. Hardware Installation PC6150/FPC6150 User’s Manual 4. Installation complete.
-
Page 28: Cd-Rom Installation
PC 6150/FPC6150 User’s Manual CD-ROM Installation The PC6150 / FPC6150 offers a convenient drive bay module for users to install CD-ROM. When installing the CD-ROM, refer to the following instructions and illustration: 1. Unscrew screws to remove the rear chassis. 2. -
Page 29: Add-On Card Installation
Add-on Card Installation The PC6150 / FPC6150 provides a riser card for PCI slots expansion. The riser card assembly can accommodate both half- size expansion cards. To install the riser card, refer to the following figure and instructions below: Remove the rear chassis. Remove the riser card fix kit. -
Page 30: Serial Port Interface
PC 6150/FPC6150 User’s Manual Serial Port Interface The PC6150 / FPC6150 has four onboard serial ports, COM1, COM2, COM3, COM4 are RS-232 Port Connector. The connector, COM1, COM2, COM3 are DB-9 connector, and the following table shows the pin assignments of this connector. Signal Name DCD, Data carrier detect RXD, Receive data... -
Page 31: Ethernet
Ethernet The PC6150 / FPC6150 provides an NE2000 compatible Ethernet (RJ-45) interface. For network connection, just plug in one cable end of the PC6150 / FPC6150 10/100/1000-Base-T Hub into the standard RJ-45 connector. The pin assignment of the RJ-45 is listed below; RJ-45 Connector Pin Assignment Signal TX+ (Data transmission... -
Page 32: Mountings: Panel/ Desktop/ Rack
PC 6150/FPC6150 User’s Manual Mountings: Panel/ Desktop/ Rack There application options PC6150 / FPC6150, Panel/Desktop/Rack mountings. 2.8.1 Desktop Kit Assembly PC6150 / FPC6150 designed desktop application. The standard set of desktop kit is included in the system packaging. Please refer to the following figure. 1. -
Page 33: Panel-Mount Kit Assembly
PC6150/FPC6150 User’s Manual 2.8.2 Panel-mount Kit Assembly The PC6150 / FPC6150 is designed for panel mount application. To mount the PC6150 / FPC6150, the standard set of mounting kit (included in the system packaging) is needed. Hardware Installation... -
Page 34: Rack Mounting Assembly
PC 6150/FPC6150 User’s Manual 2.8.3 Rack mounting Assembly The PC6150 / FPC6150 is designed for rack mounting application. Please refer to the following figure. Hardware Installation... - Page 35 PC6150/FPC6150 User’s Manual Hardware Installation...
-
Page 36: Driver Installation
PC 6150/FPC6150 User’s Manual System PC6150 / FPC6150 could support with Windows 2000/XP. To facilitate installation system instructions in this chapter carefully before you attempt installation. Panel series\PC6150 / FPC6150\Driver Select all files and follow the install procedure and press OK. C h a p t e r Driver Installation driver,... -
Page 37: Touch Screen
Touch Screen 3.2.1 Specification For 8-wire Analog Resistive type Touch Screen: Touch Screen Controller: DMC9000 Communications: RS-232 19200 baud rate fixed Baud Rate: 1024 x 1024 (10 bit A/D converter inside) Resolution: Power Input: 5V to 12V DC Power Consumption: 12V: 27mA+ i where (i = v/touch screen sheet R ) 5V: 23mA+ i where (i = v/touch screen sheet R) 6.0 x 2.0 cm... -
Page 38: Driver Installation-Windows2000/Xp/Ce.net/Xp-Embedded
PC 6150/FPC6150 User’s Manual 3.2.2 Driver Installation- Windows2000/XP/CE.NET/XP-Embedded The touch screen of PC6150 / FPC6150 provides a driver for use with Windows 2000/XP. To facilitate installation of the touch screen driver, you should read the instructions in this chapter carefully before you attempt installation. - Page 39 PC6150/FPC6150 User’s Manual Select the “Standard Calibrate” tab Driver Installation...
-
Page 40: Driver Installation- Dos
PC 6150/FPC6150 User’s Manual Calibration: To adjust the display with touch panel, click “Calibration” and follow the calibrate point to do calibration; there are five points on screen for calibration. Press OK. 3.2.3 Driver Installation- DOS Using “INSTALL.EXE” utility software driver. Insert Driver CD and select the Panel series\Driver\Step5 - Touch\Driver\DOS\Setup.exe Press ENTER key to install the drivers to drive C or use... - Page 41 Identify the communication port and IRQ number 1. For the first time installation, or changing PenMount Touch Screen’s port, C:\PENMOUNT\PMDETECT) to check the COM port and IRQ number. PMDETECT will save the correct data to PMOUSE.CFG file for further use. The driver detects your communication COM port and IRQ number from COM1 IRQ4, COM2 IRQ3, COM3….
- Page 42 PC 6150/FPC6150 User’s Manual mapped results by choose “3” DRAWING TEST under PM.BAT Initializing the PenMount driver If you don’t have the initialization commands in AUTOEXEC.BAT, initialize PenMount C:\PENMOUNT\PMINIT) controller before you use the PenMount Touch Screen. The display will show the initialization message: PenMount V7.06 Copyright(c) SALT International Corp.
- Page 43 PC6150/FPC6150 User’s Manual This page does not contain any information. Driver Installation...
-
Page 44: Chapter 4
PC 6150/FPC6150 User’s Manual Embedded O.S. Installation Windows XP Embedded Supported devices are as follows: Multiple I/O: Parallel Port 4 x UARTs compliant Serial Ports (No COM Mouse support) IrDA Port IDE: IDE HDD IDE CD-ROM USB 2.0: 4 x USB Ports Keyboard &... -
Page 45: Windows Ce.net 4.2
calibration 3. Restart computer. Windows CE.NET 4.2 Supported devices are as follows: System Memory Support 128MB 256MB Multiple I/O Parallel Port 4 x UARTs compliant Serial Ports (No COM Mouse support) IrDA Port USB 2.0 4 x USB Host Ports Keyboard &... -
Page 46: Appendix A
PC 6150/FPC6150 User’s Manual SBC BIOS Setup Appendix A describes the different settings available in the Award BIOS that comes with the SBC CPU card. Also, the instructions on how to set up the BIOS configuration are contained in this chapter. BIOS Introduction The Award BIOS (Basic Input/Output System) installed in the system ROM supports Intel Celeron processors in a standard IBM-AT... - Page 47 In general, the arrow keys are used to highlight items, <Enter> to select, the <PgUp> and <PgDn> keys to change entries, <F1> for help and <Esc> to quit. Phoenix – Aw ardBIOS CMOS Setup Utility Standard CMOS Features Advanced BIOS Features Advanced Chipset Features Integrated Peripherals Power Management Setup...
-
Page 48: Standard Cmos Setup
PC 6150/FPC6150 User’s Manual A.2.1 Standard CMOS Setup “Standard CMOS Setup” is used to record some basic hardware configurations in the computer system and set the system clock and error handling. If the motherboard is already installed in a working system, there is no need to enter this option. - Page 49 Date The date format is <day>, <date> <month> <year>. Press <F3> to show the calendar. The day of week, from Sun to Sat, determined by the BIOS, is read only The date, from 1 to 31 (or the maximum allowed date in the month), can key in the numerical / function month...
- Page 50 PC 6150/FPC6150 User’s Manual If there is no hard disk drive installed, select NONE and press <Enter>. Drive A type/Drive B type The category identifies the types of floppy disk drive A or drive B installed in the computer. None No floppy drive installed 5.25 inc PC-type standard drive;...
-
Page 51: Advanced Bios Features
A.2.2 Advanced BIOS Features This section is used to configure and improve the system and set up some system features according to the user’s preference. Phoenix – Aw ard BIOS CMOS Setup Utility Advanced BIOS Features Hard Disk Boot Priority Virus Warning CPU L1 &... - Page 52 PC 6150/FPC6150 User’s Manual Virus Warning This item protects the boot sector and partition table of the hard disk against accidental modifications. If an attempt is made, the BIOS will halt the system and display a warning message. If this occurs, the user can either continue the operation or run an anti-virus program to locate and remove the problem.
- Page 53 During POST, BIOS will determine the floppy disk drive type, 40 or 80 tracks. 360Kb type is 40 tracks while 720Kb, 1.2MB and 1.44MB are all 80 tracks. The default value is “Enabled”. BI OS searches fo r floppy disk drive to dete rmine if it is Enabled 40 o r 8 0 tra cks.
- Page 54 PC 6150/FPC6150 User’s Manual 15 characte rs pe r second 20 characte rs pe r second 24 characte rs pe r second 30 characte rs pe r second Typematic Delay (Msec) This option sets the display time interval from the first to the second character when holding a key.
-
Page 55: Advanced Chipset Features
A.2.3 Advanced Chipset Features Since the features in this section are related to the chipset on the CPU board and are completely optimized, changing the default settings in this setup table are not recommended unless the user is well oriented with the chipset features. Phoenix –... - Page 56 PC 6150/FPC6150 User’s Manual DRAM Timing By SPD This item is selected depending on whether the board has paged DRAMs or EDO (extended data output) DRAMs. System BIOS Cacheable Selecting “Enabled” allows caching of the system BIOS ROM at F0000h-FFFFFh, resulting in better system performance. However, if any program writes to this memory area, a system error may result.
-
Page 57: Integrated Peripherals
A.2.4 Integrated Peripherals This option sets the hard disk configuration, mode and port. Phoenix – Aw ard BIOS CMOS Setup Utility Integrated Peripherals OnChip IDE Device Onboard Device AuperIO Device Onboard UART 3 Onboard UART 3 IRQ Onboard UART 4 Onboard UART 4 IRQ : Mo ve Ent er: Se le ct... - Page 58 PC 6150/FPC6150 User’s Manual Phoenix – Aw ard BIOS CMOS Setup Utility Onboard Device USB controller USB 2.0 controller USB Keyboard Support USB Mouse Support AC 97 Audio Init Display first : Mo ve Ent er: Se le ct F1 : Gen era l H elp F5 : Previous Value s F6: Fa il- Saf e Defaults F7: Optimized Defaults Phoenix –...
- Page 59 The four PIO (Programmed Input/Output) fields sets a PIO mode (0-4) for each of the four IDE devices that the onboard IDE interface supports. Modes 0 through 4 provide successively increased performance. Auto mode, the system automatically determines the best mode for each device.
-
Page 60: Power Management Setup
PC 6150/FPC6150 User’s Manual A.2.5 Power Management Setup The Power Management Setup is to save energy of the system effectively. It will shut down the hard disk and turn OFF video display after a period of inactivity. Phoenix – Aw ard BIOS CMOS Setup Utility Pow er Management Setup ACPI Function ACPI Suspend Type... - Page 61 The choice: User Define, Min Saving, Max Saving. Video Off Method This determines the manner in which the monitor is blanked. T his ca u se s the s ystem to t urn o ff th e v er t ical and V/H SYNC + ho rizo nta l s yn chr oni zation po rts a nd writ e blan ks Blank...
- Page 62 PC 6150/FPC6150 User’s Manual Up on tu rn ing O FF s yst em fro m the po we r swit ch , th is opti on will de la y th e comp lete s yst em p o we r OF F Delay 4 Sec.
-
Page 63: Pnp/Pci Configuration
A.2.6 PNP/PCI Configuration This section describes the PCI bus system configuration. PCI or Personal Computer Interconnect is a system which allows I/O devices to operate at speeds nearing the speed of the CPU when communicating with its own special components. This section covers some very technical items, and it is strongly recommended that only experienced users should make changes to the default settings. -
Page 64: Pc Health Status
PC 6150/FPC6150 User’s Manual A.2.7 PC Health Status This section is to monitor the current hardware status of core voltages. This is available only if there is hardware monitoring mechanism onboard. Phoenix – Aw ard BIOS CMOS Setup Utility PC Health Status Current GMCH Temp. -
Page 65: Frequency/Voltage Control
A.2.8 Frequency/Voltage Control CMOS Setup Utility-Copyright © 1984-2001 Frequency/Voltage Control Auto Detect DIMM/PCI Clk Spread Spectrum : Mo ve Ent er: Se le ct + /- /P U/ PD: Va lue F1 : Gen era l H elp F5 : Previous Value s F6: Fa il- Saf e Defaults F7: Optimized Defaults Auto Detect DIMM/PCI Clk When enabled, this item will auto detect if the DIMM and PCI socket have devices and will send clock signal to DIMM and PCI devices. -
Page 66: Load Fail-Safe Defaults
PC 6150/FPC6150 User’s Manual A.2.9 Load Fail-Safe Defaults This option is to load the troubleshooting default values permanently stored in the BIOS ROM. These default settings are non-optimal and disable all high-performance features. Phoenix – Aw ard BIOS CMOS Setup Utility Standard CMOS Features Advanced BIOS Features Advanced Chipset Features... -
Page 67: Load Optimized Defaults
A.2.10 Load Optimized Defaults This option is to load the default values to the system configuration. These default settings are optimal and enable all high performance features. Phoenix – Aw ard BIOS CMOS Setup Utility Standard CMOS Features Advanced BIOS Features Advanced Chipset Features Integrated Peripherals Power Man... -
Page 68: Set Supervisor/User Password
PC 6150/FPC6150 User’s Manual A.2.11 Set Supervisor/User Password Either supervisor or user password, or both of them can be set in this option. The differences between them are: supervisor password: can enter and change the options of the setup menus. user password: just can enter but do not have the right to change the options of the setup menus. -
Page 69: Save & Exit Setup
A.2.12 Save & Exit Setup This is to determine whether or not to accept the modifications. Typing “Y” quits the setup utility and saves all changes into the CMOS memory. Typing “N” brigs back to Setup utility. Phoenix – Aw ard BIOS CMOS Setup Utility Standard CMOS Features Advanced BIOS Features Advanced Chipset Features... -
Page 70: Exit Without Saving
PC 6150/FPC6150 User’s Manual A.2.13 Exit Without Saving Select this option to exit the Setup utility without saving the changes made in this session. Typing “Y” will quit the Setup utility without saving the modifications. Typing “N” will return to Setup utility. Phoenix –... -
Page 71: Appendix B
Power Supply Specification Power Supply: FSP180-50PLA1 (180W, AC 110~230V Input, fanless) B.1.1 ELECTRICAL REQUIREMENTS OUTPUT ELECTRICAL REQUIREMENTS The subject power supply will meet all electrical specifications below, over the full operation temperature range and dynamic load regulation. OUTPUT RATING Output Nominal Regulation +3.3V... - Page 72 PC 6150/FPC6150 User’s Manual LOAD CAPACITY SPECIFICATIONS The cross regulation defined as follows, the voltage regulation limits DC include DC Output ripple & noise. +3.3V LOAD ALL MAX HHHH 4.5A +5V MAX LHLL 0.3A other MIN +3.3V MAX HLLL 16.8 A other MIN +12V MAX LLHL...
- Page 73 PC6150/FPC6150 User’s Manual SHORT CIRCUIT PROTECTION Output short circuit is defined to be a short circuit load of less than 0.1 ohm. In the event of an output short circuit condition on +3.3V, +5V or +12V output, the power supply will shutdown and latch off. The power supply shall return to normal operation after the short circuit has been removed and the power switch has been turned off for no more than 2 seconds.
-
Page 74: Efficiency
PC 6150/FPC6150 User’s Manual TTL signal asserted (high state): greater than 4.75V while sourcing 500uA. High state output impedance: less or equal to 1Kohm from output to common. POWER GOOD @ 115/230V,FULL LOAD POWER FAIL @115/230V, FULL LOAD B.1.2 EFFICIENCY 68% minimum 115 VAC @Full Load 230 VAC @Full Load... -
Page 75: Shock
Plane of vibration to be along three mutually perpendicular axes. B.1.7 SHOCK The subject power supplies will withstand the following imposed conditions without experiencing non-recoverable failure or deviation from specified output characteristics. Storage –40G, 11 mSec. half-sine wave pulse in both directions on three mutually perpendicular axes. -
Page 76: Power Supply: Mpi-810H-A1
PC 6150/FPC6150 User’s Manual Power Supply: MPI-810H-A1 (ATX120W, AC 90~260V Input) MPI-810H is a 120Watts forced air-cooling, five outputs switching power supply; and it’s designed for General Purpose. B.2.1 Input Specifications Input voltage range: 90~260 VAC Input frequency: 47~63 Hz Input current: The maximum input current is 3A at 115VAC or 1.5A at 230VAC Inrush current: 30A at 115VAC or 60A at 230VAC (cold start) -
Page 77: General Specifications
B.2.3 General Specifications Efficiency: 70% typ. B.2.4 Environmental Specifications Operating temperature range: Storage temperature range: -40°C to +70°C Humidity, non-condensing: 10% ~ 90% Non-Condensing B.2.5 International Standards Safety Standards Designed to meet the following standards: UL 1950, CSA 22.2 NO. 234, VDE EN 60950 EMI Standards Designed to meet the following limits: FCC docket 20780 curve “B”, EN55022 “B”... -
Page 78: Power Supply: Mpd-810H
PC 6150/FPC6150 User’s Manual Power Supply: MPD-810H (ATX120W, DC 10~30V Input) MPD-810H is a 120Watts forced air-cooling, five outputs switching power supply; and it’s designed for General Purpose. B.3.1 Input Specifications Input voltage range: 10~30VDC, nominal input voltage is 12 and 24VDC Input current: The maximum input current is 18A at 10VDC Inrush current: less than 30A at 10VDC... -
Page 79: General Specifications
B.3.3 General Specifications Efficiency: 70% typ. B.3.4 Environmental Specifications Operating temperature range: Storage temperature range: -40°C to +70°C Humidity, non-condensing: 10% ~ 90% Non-Condensing B.3.5 International Standards Safety Standards Designed to meet the following standards: UL 60950, CSA 22.2 NO. 234, EN 60950 EMI Standards Designed to meet the following limits: FCC docket 20780 curve “B”, EN55022 “B”...
